| Place of Origin: | Shenzhen City, China |
| Brand Name: | Green Lighting |
| Certification: | CE, ATEX, FCC |
| Model Number: | GL12-A |
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | One set each box with 1pc head lamp, 1pc charger and Manual Accept customized packing |
| Delivery Time: | sample order within 1-3 working days, bulk order within 15-20 working days |
| Payment Terms: | 100% T/T or Western Union Payment Before Delivery The Goods. |
| Supply Ability: | 10000 piece in one month |
| Type: | Corded Headlamp | Brightness Of Main Light: | 25000Lux |
|---|---|---|---|
| Brightness Of Middle Light: | 18000Lux | Main Light Current: | 1000mA |
| Power Of The Main Light: | 3W | Illuminous(strong Light): | 348LUM |
| Battery Cycles: | 1200 Cycles | Cable Length: | 1.2m 0r 1.6m |
| Highlight: | cordless cap lamp,coal miners lamp |
||

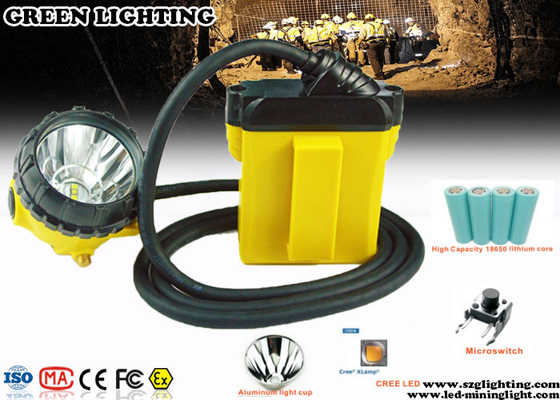

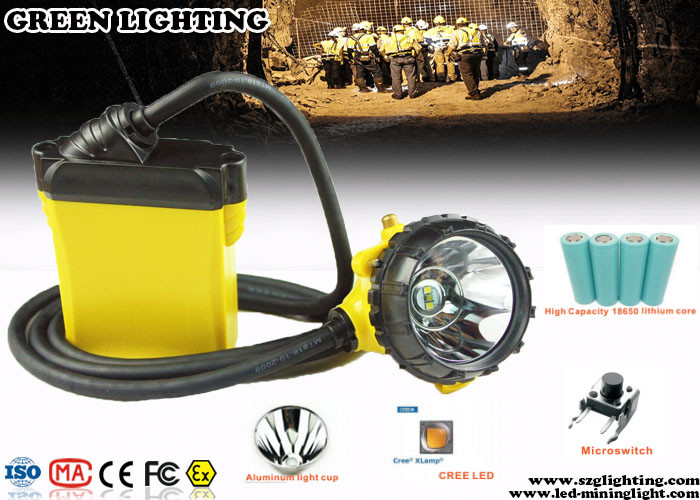

10400mAH Rechargeable Li - ion Battery Safety Corded Coal Mining Lights with 25000Lux
Features: innovated design , high safety, 25000 strong brightness,
1. LED : 3W super brightness LED
2. Battery : safety rechargeable lithium ion battery with 10.4Ah or 12Ah
3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life
4. Lighting time : more than 20 working hours.
5. Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,2A.
| No | Item | Unit | Data | |
| 1 | Rated capacity | Ah | 10.4 | |
| 2 | Nominal voltage | V | 3.7 | |
| 3 | Lighting time | h | ≥16 | |
| 4 | LEDlight source | Rated voltage | V | 4.2 |
| Main light source/power | mA | 1000 | ||
| Auxiliary light source | mA | 600 | ||
| 5 | Max illuminance at 1m | Begin lighting(1meter) | Lx | 25000 |
| Lighting 11h | Lx | 18000 | ||
| 6 | Weight | g | 560 | |
| 7 | Nos of battery cycle | times | ≥1200 | |
| 8 | Carton packing | roll/CNT | 36 | |
| 9 | Packing size | cm | 54*38*44 | |
Spare Parts Clarify:
| Item | Part Number | Description |
| 1 | GL-SP-001 | Bezel Ring |
| 2 | GL-SP-002 | Glass & Gasket |
| 3 | GL-SP-003 | LED, Reflector and PCB |
| 4 | GL-SP-004 | Housing |
| 5 | GL-SP-005 | Steel clip & Screws |
| 6 | GL-SP-006 | 10.4Ah Li-ion Battery Pack |
| 7 | GL-SP-007 | Battery case complete |
| 8 | GL-SP-008 | Cable |
| 9 | GL-SP-009 | Security Tool |
1. Charger:
It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.
2. LED:
It adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 3000 lux/60lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)
3. Battery (Lithium ion):
It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery.
Usage:
It is suitable for coal mine, mineral industry,tunnel projects,construction and maintenance for power,communication,highway,railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.
Product Pictures:
