GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:
 |
| Place of Origin: | China shenzhen |
| Brand Name: | GREEN LIGHTING |
| Certification: | CE,ATEX |
| Model Number: | GL-XLM-1236-30W-144-DC36 |
| Minimum Order Quantity: | 1meter |
|---|---|
| Price: | Negotiating |
| Packaging Details: | 1 x mining light strip 1 x user manual |
| Delivery Time: | sample order 3-7 woking days,bulk order with 2 weeks |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 300000meter/month |
| Item Type: | Light Strips | Light Source: | LED |
|---|---|---|---|
| Certification: | CE,RoHS | Emitting Color: | White |
| Input Voltage(v): | DC24V | Lamp Luminous Flux(lm): | 2230lm/m |
| Working Temperature(℃): | -20～50°C | Lamp Body Material: | Silicone |
| Led Light Source: | SMD5050 | Ip Rating: | IP68 |
| Warranty: | 3 Years | Lamp Power: | 30W/M |
| Color: | White | Product Name: | SMD5050 Led Strip |
| Application: | Indoor Outdoor,Tunnel,Underground Coal Mine | ||
| Highlight: | 2230lum/m Silicone Led Strip Light,DC36V Silicone Led Strip Light,Tunnel Silicone Double Row LED Strip |
||
600N SMD 5050 Flexible Led Strip Light Waterproof IP68 Silicone 144 LEDs For Mining Tunnel
Illumination in Underground Mining
As a rule, a miner cannot enter the mine without carrying his lamp,
but this does not guarantee that you will not run out of battery and have an accident ending in a legal outcome for repairing the damage including a strike that would be more costly for the mine. Lighting in mining underground is important for the prevention of accidents to personnel and damage to expensive machinery due to poor lighting.
The Challenges of Mining Lighting
Traditional lamps are difficult to install in a mining tunnel and maintenance costs are high due to dust, moisture, acidic water, bruises, and contractors truckers pressuring you not to obstruct the tunnel too long as they work on commission. Our led strip light is the solution to all these needs, they have greater energy efficiency generating savings of 50%, install quickly and easily by fastening them with cable ties directly from 220V distribution cables, saving installation and maintenance time generating additional savings of 25% per month in maintenance expenses.
1-Year Warranty
Other led tape lights only come lined with a fragile layer of PVC, not recommended for mining because a small blow can fracture them allowing water to enter the entire led tape light and at low temperatures can be cracked with your fingers, on the other hand, our led tape lights are sealed and protected with silicone that withstands the passage of a truck, is food-grade material free of halogens and any substance toxic, they are resistant to dust, humidity and acidic water with a useful life of 7 to 10 years.
Main Parameter of GL-XLM-1236-30W-144-DC36 Led Strip Lights :
| Model | GL-XLM-1236-30W-144-DC36 |
| Led light source | SMD5050 |
| LED configuration | 144 LEDs spaced evenly over a metre length |
| Recommended Power Supply(W) | 1500W |
| Recommended fixing height | 5 - 6 Metres |
| IP Rating | IP68 |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6200K±200 |
| Flux (lm) | 2230Lumens / M |
| Voltage on lighting | DC36V |
| Light maintenance | 15%-20% Drop over 4 years |
| Lifespan | 5 Years |
| Warranty Lighting | 3 Years |
| Outer covering | Food grade silicone |
| Dimensions | 36mm(width) *12mm(height) |
| Ultimate Tension(N) | 600N |
| Operating temperature | -20～50°C |
| Protection | Short Circuit,Over Voltage,Over temperature,Over Current |
| Single-ended Max.(M) | 30m |

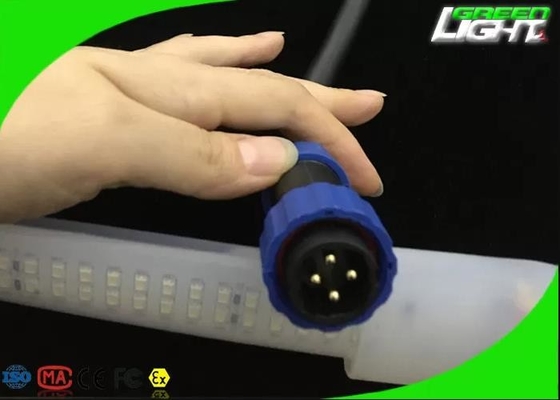

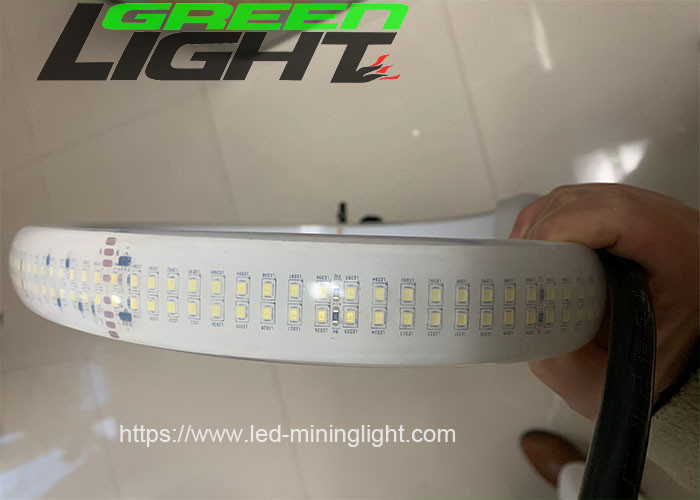

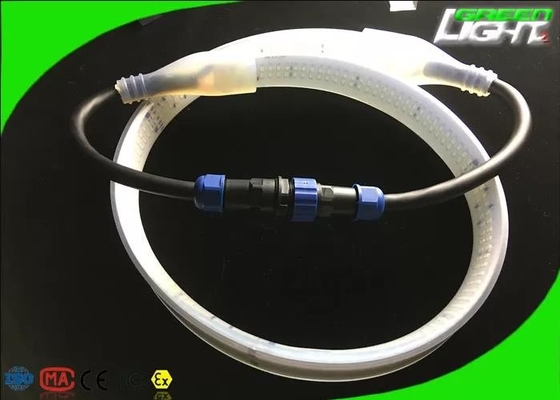

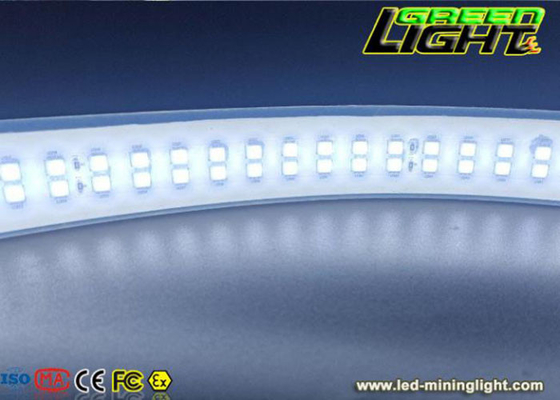

Double row silicone LED strip lights picture shown
The Advantages of Led Strip Lights
Most conventional underground mining lighting systems lose up to 50% luminescence within the first 4 to 6 months and rarely last beyond the 12-month mark.
Green Lighting LED Strip Lighting uses highly specialized components making it able to withstand being continuously energized. Green Lighting LED Strip Lighting functions at optimal efficiency in the most challenging environments for long periods of time. The light output lost is marginal at ±5% per annum for the first four years, thereafter stabilizing at ±1-2% per annum.
Reduced maintenance requirements
By comparison, the working life of a fluorescent light is significantly shorter than five years and therefore requires more frequent changing out of the light source, more maintenance activity, and potential operational impact.
LED Strip Lighting does not typically fail catastrophically, as is usually the case with fluorescent lighting, but rather the light output generally decreases over time. This allows for a regular maintenance schedule and replacement prior to failure, maintaining consistency of lighting, and improving safety underground.
The optimum solution for mining illumination, Green Lighting LED Strip Lighting is made of a high grade, fire retardant soft Silica Gel and is IP68 rated, making it compact and robust.
Virtually indestructible
Long-lasting
Payment Terms:
L/C, T/T, Western Union,PayPal
IP 68 Waterproof led light strips Applicication
It is suitable for coal mine, mineral industry,tunnel projects
About Green Lighting Technology CO., Ltd.
Green Lighting Technology CO., Ltd. is specialized in anti-explosive led flexible strip light and industrial application products over 15year since 2006, located in Shenzhen City of China. We are a leading manufacturer of safety LED mining cap lamps, explosion-proof lighting, LED outdoor lighting, flashlight, and other industrial products. We have superior electronic engineers, superior structure engineers and optical engineers within our design staff members and we have a solid reputation for offering innovation, high quality & punctual delivery time to all customers all over the world. Welcome to come to China and visit our factory in your free time
