GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:

|
| Place of Origin: | China shenzhen |
| Brand Name: | GREEN LIGHTING |
| Certification: | CE,ATEX |
| Model Number: | GL-XLM-1236-30W-120-DC24 |
| Minimum Order Quantity: | 1meter |
|---|---|
| Price: | Negotiating |
| Packaging Details: | 1 x mining light bar 1 x user manual |
| Delivery Time: | sample order 3-7 woking days,bulk order with 2 weeks |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 300000meter/month |
| Item Type: | Light Strips | Light Source: | LED |
|---|---|---|---|
| Certification: | CE,RoHS | Emitting Color: | White |
| Input Voltage(v): | DC24V | Lamp Luminous Flux(lm): | 2160lum/m |
| Working Temperature(℃): | -20～50°C | Working Lifetime(hour): | 5 Years |
| Lamp Body Material: | Food Grade Silicone | Color Temperature(cct): | White |
| Ip Rating: | IP68 | Warranty: | 3 Years |
| Lamp Power: | 30W/M | Color: | White |
| Application: | Underground Mine, Tunnel Project | Led Light Source: | SMD5050 |
| Highlight: | 30W LED Flexible Strip Lights,2160lum/M LED Flexible Strip Lights,ATEX Double Row Led Strip |
||
Led Light Strip plug and play system
Conventional lighting requires separate power and a wired connection to every lamp, needing the expertise of electricians. This becomes labour-intensive and costly when running many meters of lighting. The GREEN LIGHTING LED Strip Lighting plugs into an existing power source using a power supply which then connects to one end of the LED strip.
Maintenance-free. Easy to repair.
Damage to lighting through routine underground activities happens. When a conventional lamp is damaged, it results in loss of illumination over many meters – making the affected area a safety hazard until repaired by a qualified electrician. Should a section of the GREEN LIGHTING strip light be damaged, only this section loses light. The remaining portion of the strip continues to provide illumination – allowing for a safer environment. Additionally, damaged sections can be replaced in 8" strips – making it a quick and cost-effective fix.
• Intelligent temperature management, sensors monitor LED temperature and if safe parameters are exceeded the affected LED’s are automatically dimmed until safe temperatures are restored.
• Intelligent voltage surge management, restorable resistors limit overcurrent and overvoltage situations.
• AC to DC convertors, miniature voltage convertors.
• Short circuit protection, in the case of short circuit the power is isolated until the circuit is normalized.
Dimension: 10000mm(length) *12mm(height) *36mm(width)
Main Parameter of GL-XLM-1236-30W-120-DC24 Shafts Flexible Strip Lights For Tunnel
| Model | GL-XLM-1236-30W-120-DC24 |
| Led light source | SMD5050 |
| LED configuration | 120 LED spaced evenly over a metre length |
| Recommended Power Supply(W) | 1000W |
| Recommended fixing height | 5 - 6 Metres |
| IP Rating | IP68 |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6200K±200 |
| Flux (lm) | 2160Lumens / M |
| Voltage on lighting VAC | 24VAC |
| Light maintenance | 15%-20% Drop over 4 years |
| Lifespan | 5 Years |
| Warranty Lighting | 3 Years |
| Outer covering | Food grade silicone |
| Dimensions | 36mm(width) *12mm(height) |
| Ultimate Tension(N) | 600N |
| Operating temperature | -20～50°C |
| Protection | Short Circuit,Over Voltage,Over temperature,Over Current |

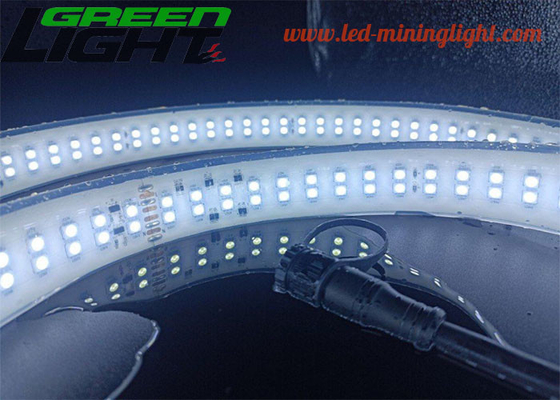

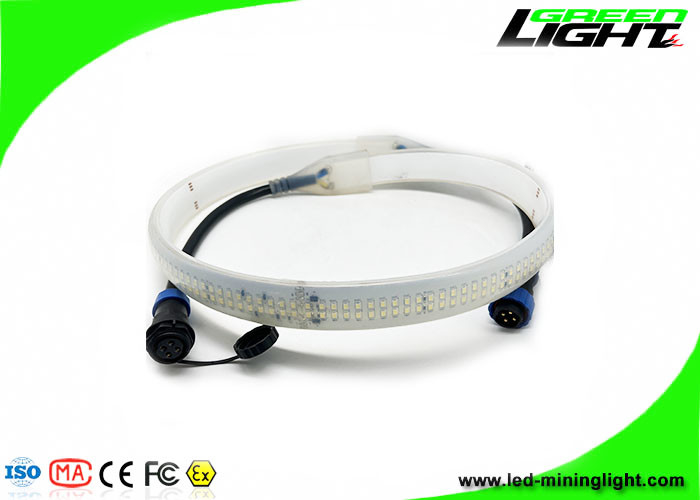

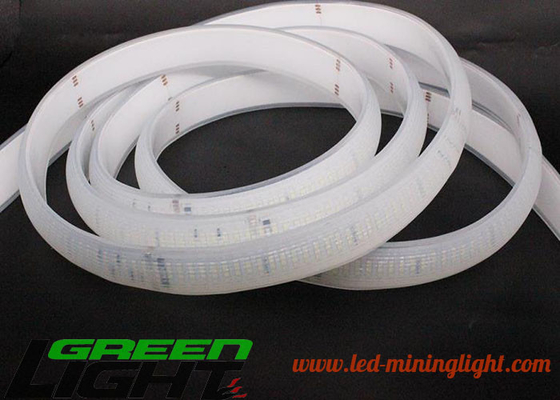

Mining Lighting Strip Picture Shown
Payment Terms:
L/C, T/T, Western Union,PayPal

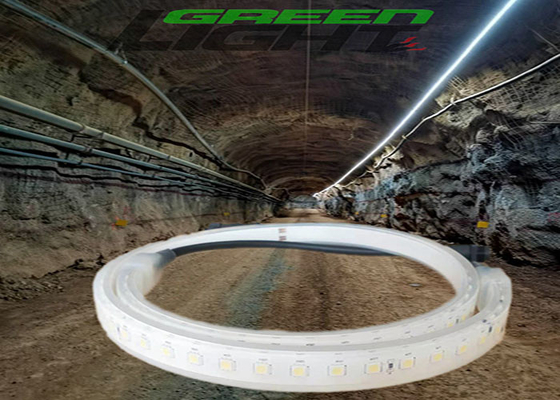

Waterproof Strip Lighting Applicication
It is suitable for coal mine, mineral industry,tunnel projects
Flexible Led Strip Lights FAQ:
Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every strip light, either by laser or by molds.
Q: Could I put my own designs on the products?
A: Of course, you can send us your design, we'll follow your design.
Q: Can I have some samples before the formal order?
A: Yes, we can send you some free samples for your test before your order.
Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released. For customized products, it takes longer.
Q: How about the after-sale service? What are the Warranty terms?
A: We offer 12 months for every product we sold. If you meet any problems after sales, pls contact us freely, we'll help to solve the problems within 24 hours.
Q: Are you a manufacturer or just a dealer?
A: We're a manufacturer, we do produce all products by ourselves. Welcome to visit our plant at any time.
Q: What are the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C, Paypal is also accepted if the order quantity is large. For old customers, we'll guarantee monthly payment after a good cooperation ship.
Q: I couldn't find the products I want in your catalog, can you develop them for me?
A: Yes, we have a research & development dept., we're willing to develop everything that you demand in safety lockout industries.
Q: Do you have any offices in other countries?
A: Currently we don't have, but we're discussing with some good customers. If you're willing to be our agent in any country, pls contact us freely.
Q: May I take goods by air?
A: yes, you can by air, express, sea up to options.
About Green Lighting Technology CO., Ltd.
Green Lighting Technology CO., Ltd. is specialized in anti-explosive led flexible strip light and industrial application products over 15year since 2006, located in Shenzhen City of China? We are a leading manufacturer of safety LED mining cap lamps, explosion-proof lighting, LED outdoor lighting, flashlight, and other industrial products. We have superior electronic engineers, superior structure engineers and optical engineers within our design staff members and we have a solid reputation for offering innovation, high quality & punctual delivery time to all customers all over the world. Welcome to come to China and visit our factory in your free time.
