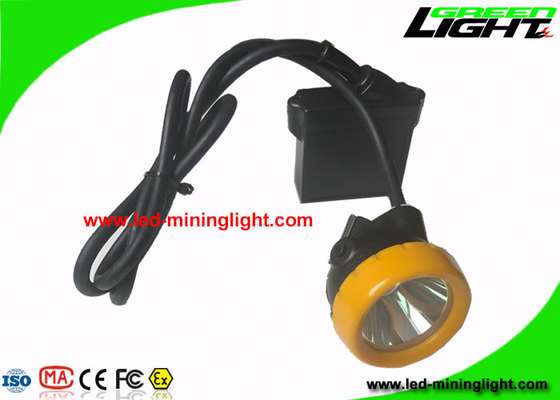

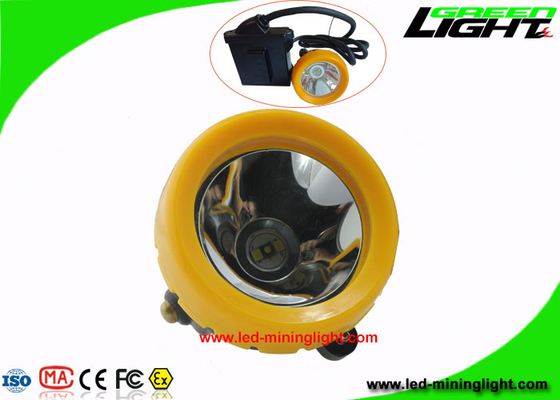

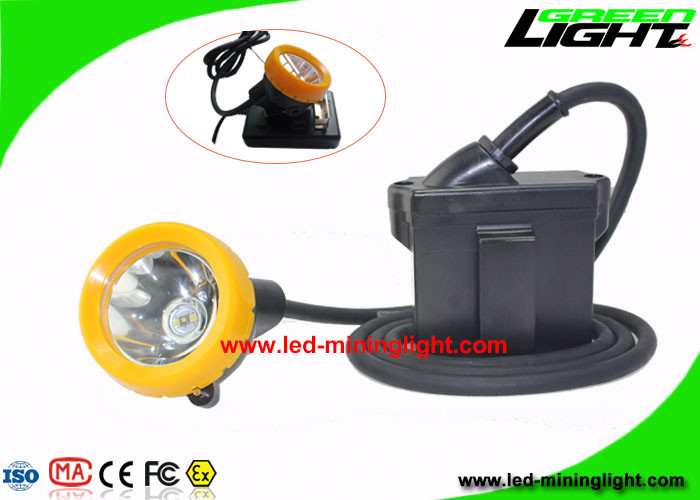

Portable 10000 Lux Coal Mining Lights 6.6Ah Big Battery Capacity For 18 Hours

Portable 10000 Lux Coal Mining Lights , Waterproof IP68 Miner Headlamp With PCB Safety Lighting

Main Features for Model GL5-C mining headlamp with cable:

1. Brightness: 10000lux high beam corded lamp.
2. One main light and two auxiliary lights.
3.  18h6.6Ah big battery capacity and18hours lighting working time.

4. Low power warning function for safery lighting.
5. Silicon button cap with good touch and long life usage.
6. Special material with flame resistant, impact resistant.
7. Enviromental: Lithium battery with short circuit protection, over charging protection and over discharging, free mataince long battery life span.
8. OEM and ODM available. Write the request to cap lamps, such as clients company name, LOGO, series No and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
10. ATEX explosion-proof, Dust-proof, waterproof, flame resistant, shock resistant.

Main parameter of two series of rechargeable headlamp:


Advantages of the underground high power led cordless mining cap lamp :

Safety: All the housing materials are bulletproof ABS, which is very strong to afford heavy impact or high dropping.

MCU controlled protection in electrical short-circuit, automatic power-off on the socket ,

it is explosion proof, waterproof and dustproof, and ATEX Certified for use in explosive atmospheres such as coal mines.

Reliability: Tough housing, optimized design, a solid LED light that uses high efficient IC drivers guarantee the product is durable and strong.

The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge.

Efficiency: more than 15 hours at full brightness for main light, and more than 60 hours continuous lighting for auxiliary light.

Battery usage lifetime about 1000 cycles

Environmental: The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials as per RoHS Directive.

Economy: no requirement to replace bulbs, lifetime of li-ion battery is three times longer than lead-acid cap lamp and saving in maintenance makes the product more compatible in price

Charger input power: AC110-220V / 50-60Hz. Charging time: within 5 hours,

Type of protection: EXia IICT4 (Zone 1 and 2)

Type of Certificate: CE

Application

Suitable for explosive gas environment zone 1, zone 2 locations;
Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;
Suitable for A, II B, II C explosive gas environment;
Suitable for: indoor, outdoor 1.8-3.5 meters in height;

Camping, travelling, cycling

Tool, maintenance lighting

Fishery, diving, fire-fighting

Military, architecture, living

Furniture, farm lighting

Night fishing, car-carrying, road and railway lighting, forest farm
