GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:
 |
| Place of Origin: | Shen zhen,China |
| Brand Name: | Green Lighting |
| Certification: | CCC, CE, FCC |
| Model Number: | GL-XLM-GS01 |
| Minimum Order Quantity: | 1meter |
|---|---|
| Price: | negotiate |
| Packaging Details: | Standard packaging or customers' requirements |
| Delivery Time: | sample order 3-7 woking days,bulk order 15-20 days |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 10000pcs per month |
| LED Chip: | Epistar | Power Input: | AC110V-250V |
|---|---|---|---|
| Anti-explosive: | Yes | Waterproof: | IP68 |
| Outer Covering: | Food Grade Silicone | Emitting Color: | RGB |
| Service: | OEM ODM Available | Led Chip Brand: | Cree |
| Support Dimmer: | YES | Operating Temperature: | -40℃ To 120℃ |
| Range Fed From Both Sides: | 20 Metres | CURRENT/M: | 0.6A |
| Highlight: | IP68 Led Waterproof Strip Lights,20m Flexible Led Strip Lights |
||

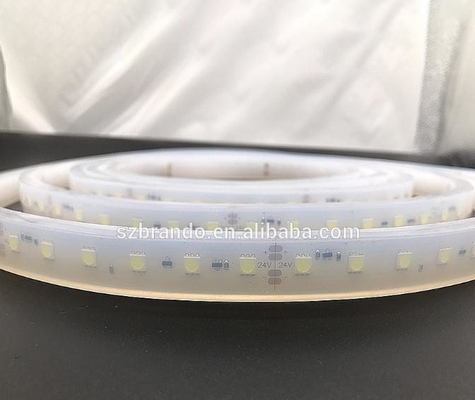

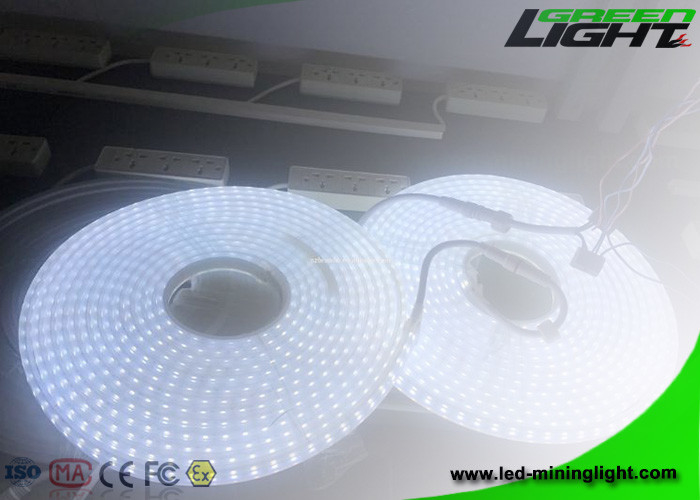

Waterproof 24V LED Flexible Strip Lighting Explosion Proof For Underground Mine
Our plug and play system really 'clicks'.
Conventional lighting requires separate power and a wired connection to every lamp, needing the expertise of electricians. This becomes labour-intensive and costly when running many meters of lighting. The GREEN LIGHTING LED Strip Lighting plugs into an existing power source using a power supply which then connects to one end of the LED strip. A single power supply will light a 20 meter LED section. To extend beyond 20 meters, just add another power supply at the other end and connect the next section of LED strip – it's that simple.
Need to change direction? No problem.

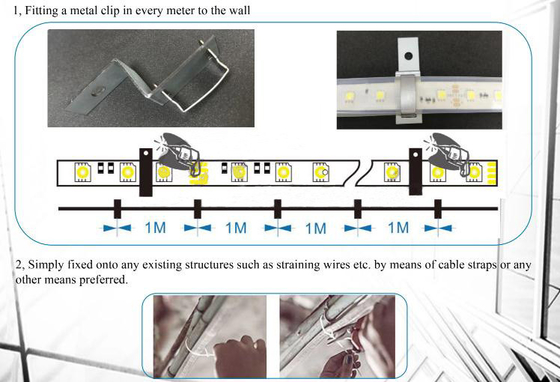

GREEN LIGHTING provides accessories to allow for Bends and T-Junctions so you can direct the LED strips where you need them to go.
Maintenance-free. Easy to repair.
Damage to lighting through routine underground activities happens. When a conventional lamp is damaged, it results in loss of illumination over many meters – making the affected area a safety hazard until repaired by a qualified electrician. Should a section of the GREEN LIGHTING strip light be damaged, only this section loses light. The remaining portion of the strip continues to provide illumination – allowing for a safer environment. Additionally, damaged sections can be replaced in 8" strips – making it a quick and cost-effective fix.
Main Parameter of GL-XLM-GS01 led strip lights waterproof
TECHNICAL PARAMETERS:
| Part Number | GL-XLM-GH01 |
| LED Chip | Epistar |
| LED configuration | 60 LED's spaced evenly over a metre length |
| Range fed from both sides | 20 metres |
| Recommended fixing height | 5 - 6 Metres |
| IP Rating | 68 |
| Power Consumption per LED | 0.25 Watts |
| Power Consumption per Metre | 15 Watts |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6500 Kelvin |
| Luminous Efficacy | 80 Lumens / Watt |
| Voltage on lighting VDC | 24 VDC |
| Supply voltage for power controllers VAC | 85 - 265 VAC |
| Light maintenance | 15%-20% Drop over 4 years |
| Lifespan | 5 Years + |
| Warranty Lighting | 3 Years |
| Outer covering | Food grade silicone |
| Dimensions | 10000mm(length) *13.5mm(width) *6mm(height) |
| Tensile strength | +-50KG |
| Operating temperature | -40℃ to 120℃ |
| Protection | Short Circuit Over Voltage Over temperature Over Current |
RGB 5050 Led Strip Lights main marketing
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | confidential | 49.0 |
| South America | confidential | 3.0 |
| Eastern Europe | confidential | 10.0 |
| Southeast Asia | confidential | 2.0 |
| Oceania | confidential | 3.0 |
| Mid East | confidential | 5.0 |
| Eastern Asia | confidential | 1.0 |
| Western Europe | confidential | 25.0 |
| Northern Europe | confidential | 2.0 |
Your happy and safe usage is our pursuit.
Recommended for your that our underground Anti-explosive Silicone Strip light with 24v /36v to support you.
FRID/UWB tracking system into cap lamp for miner safety.
