GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:

|
| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | GREEN LIGHTING |
| Certification: | UL,CE |
| Model Number: | GL-XLM-GS01-220V |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | Nogotiating |
| Packaging Details: | Outer box size 50X40X40 cm |
| Delivery Time: | 3-5 work days for sample order, 15-25 working days for bulk order |
| Payment Terms: | T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 5000meters per months |
| Color Temperature: | 5000-6500kelvin | Input Voltage: | AC220V |
|---|---|---|---|
| Power Consumption Per LED: | 0.22-0.25 Watts | LEDs/M: | 144LEDs |
| Waterproof Grade: | IP68 | Protection: | Short Circuit , Over Temperature , Over Voltage , Over Current, Surge And Surge Protection |
| LED Chip: | Epistar | Colour Rendering Index CRI: | >80 |
| Dimensions: | 10000mm*36mm*7mm | Corlor: | White Color, RGB For Option |
| Highlight: | SMD5050 Double Row LED Tape Lights,144LEDs Double Row LED Tape Lights,2000lum/m Warm White Led Strip Lights |
||

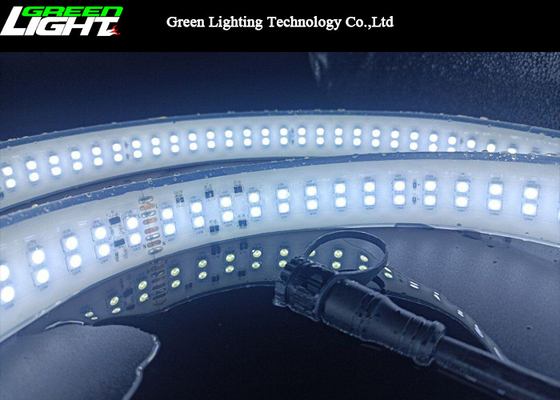

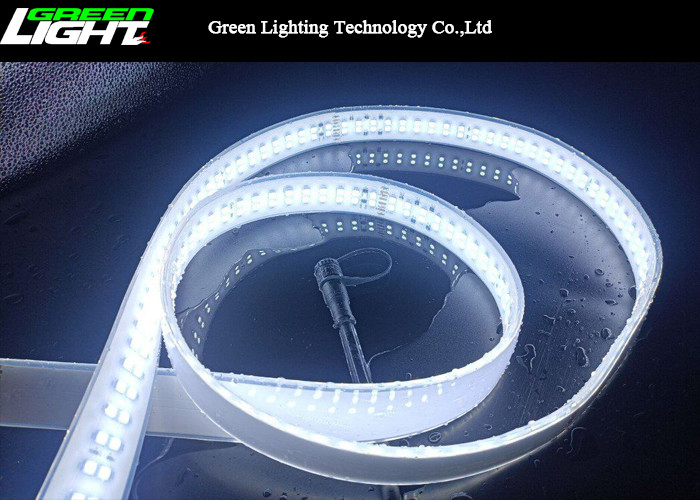

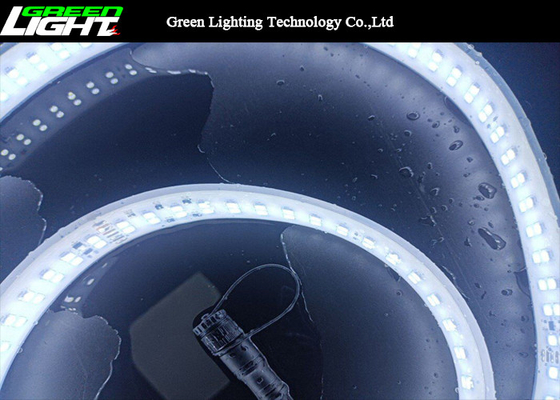

220V SMD 5050 Double row LED Flexible light strip with White color 144 LEDs / meter
Newly designed for hazardous industrial site, suitable for underground mines, tunneling, commercial and construction industries
Specification of led strip light:
| LED Chip | Epistar |
| LED configuration | 144LEDs spaced evenly over a meter length |
| Range fed from both sides | 20metres |
| Recommended fixing height | 56 meters |
| IP Rating | IP68 |
| Power consumption per LED | 0.25 Watts |
| Power consumption per meter | 12 Watts |
| Color rendering index CRI | >80 |
| Color temperature | 50006500kelvin |
| Luminous flux | 2000Lum / m |
| The voltage on lighting VDC | 220V |
| Temperature for storage and transportation | +40℃ |
| Life span | 5 years+ |
| Warranty lighting | 1 year |
| Outer covering | Food grade silicons |
| Dimensions | mm(length) * mm(width) * mm(height) |
| Tensile strength | + 50KG |
| Operating temperature | 40 / +80 ℃ |
| Relative humidity,%, at a temperature of + 40 ° C | till 100% |
| Dustiness of ambient air | no more 1000 mg/m3 |
| Rated supply voltage | 220V(preferably switchable) |
| Lighting angle | 180 degree |
| MTBF | 45000 H |
| Degradation of luminous flux | 57% / year |
| protection against dust and moisture | IP68 |
| Protection | Short circuit, Over temperature, Over Voltage, Over-current, Surge, and surge protection |
Product Details
DOUBLE LAYER CIRCUIT
Double Layer Pure Copper Flexible Circuit Board is Adopted to Ensure Excellent Conductivity and Extremely Long Service Life of the Lamp Strip.
Connect Drawing
Accessories
Power supply
Fixed buckle / Cable tie
Connector
Product Features
1. Flexible, can be bent into any shape
2. High-quality products, European and US standard
3. 3528 or 5050 SMD LED adopted, high brightness, stable performance.
4. long lifetime,5% attenuation after 2500 hours, lifetime is 80000-100000 hours
5. Energy-saving and environmentally friendly.
6. 5m/roll is the standard package, but the size can be customized
7. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M. etc.
8. Each unit of 3LEDs can be cut out at regular segments.
9. 3M adhesive attached on the back of PCB, for stick installation.
10. White, warm white, red, green, blue, and yellow color and RGB available.
Application of LED Strip Light
This flexible LED light strip is great for underground mining lighting, cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited.
