GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:
 |
| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | GREEN LIGHTING |
| Certification: | UL,CE |
| Model Number: | GL-XLM-GS01-220V |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Outer box size 50X40X40 cm |
| Delivery Time: | 3-5 work days for sample order, 15-25 working days for bulk order |
| Payment Terms: | T/T, Western Union,Paypal, MoneyGram, |
| Supply Ability: | 5000meters per months |
| Color Temperature: | 5000-6500kelvin | Input Voltage: | AC110V |
|---|---|---|---|
| Power Consumption Per LED: | 0.22-0.25 Watts | LEDs/M: | 72LEDs |
| Waterproof Grade: | IP68 | Protection: | Short Circuit , Over Temperature , Over Voltage , Over Current, Surge And Surge Protection |
| LED Chip: | Epistar | Colour Rendering Index CRI: | >80 |
| Dimensions: | 10000mm*36mm*7mm | Corlor: | White Color, RGB For Option |
| Warranty: | 2 Year | Outer Covering: | Food Grade Silicons |
| Highlight: | AC110V Led Strip Tape Lights,2000Lum Led Strip Tape Lights,12W Led Flexible Tape Light |
||

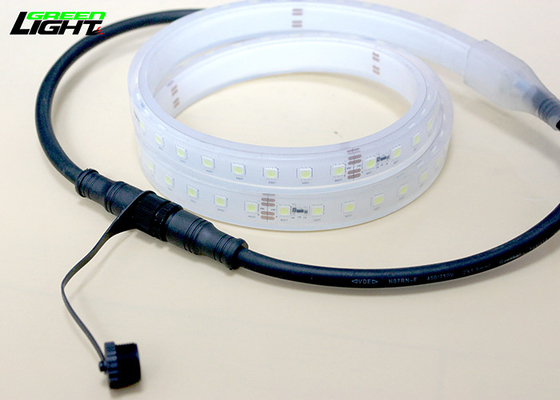

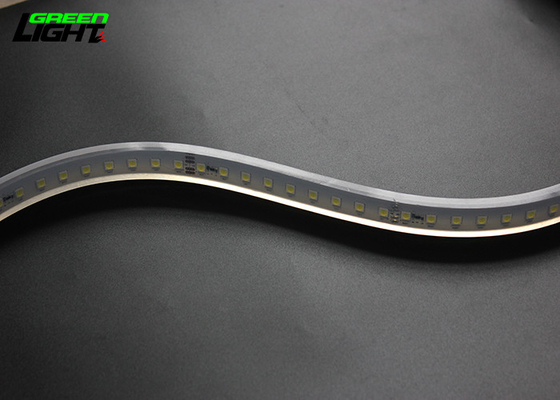

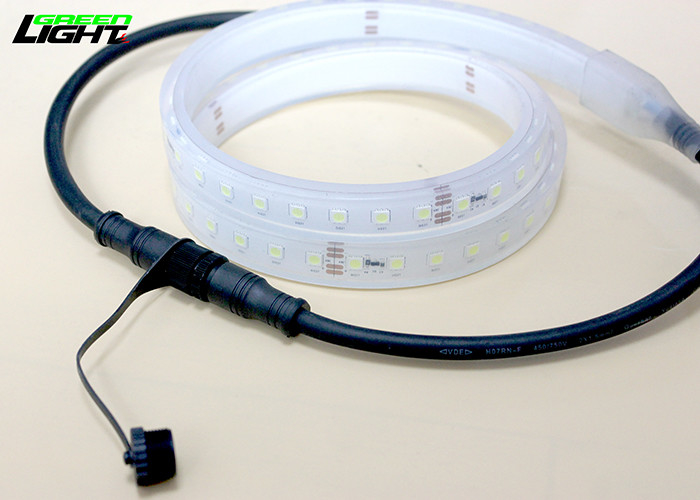

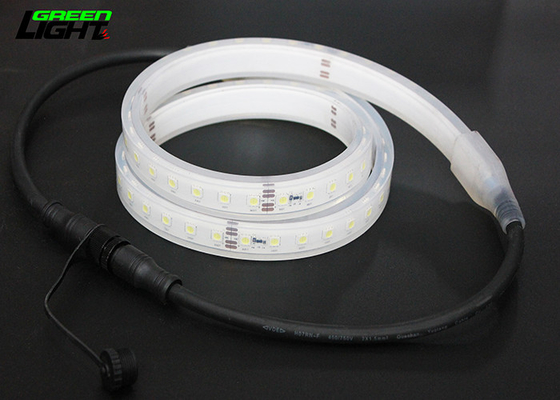

AC110V High voltage white color LED light strips 1 meter 72LEDs / M
Parameters
| LED Chip | Epistar |
| LED configuration | 72LEDs spaced evenly over a meter length |
| Range fed from both sides | 20metres |
| Recommended fixing height | 56 meters |
| IP Rating | IP68 |
| Power consumption per LED | 0.25 Watts |
| Power consumption per meter | 12 Watts |
| Color rendering index CRI | >80 |
| Color temperature | 50006500kelvin |
| Luminous flux | 2000Lum / m |
| The voltage on lighting VDC | 220V |
| Temperature for storage and transportation | +40℃ |
| Life span | 5 years+ |
| Warranty lighting | 1 year |
| Outer covering | Food grade silicons |
| Dimensions | mm(length) * mm(width) * mm(height) |
| Tensile strength | + 50KG |
| Operating temperature | 40 / +80 ℃ |
| Relative humidity,%, at a temperature of + 40 ° C | till 100% |
| Dustiness of ambient air | no more 1000 mg/m3 |
| Rated supply voltage | 220V(preferably switchable) |
| Lighting angle | 180 degree |
| MTBF | 45000 H |
| Degradation of luminous flux | 57% / year |
| protection against dust and moisture | IP68 |
| Protection | Short circuit, Over temperature, Over Voltage, Over-current, Surge and surge protection |
Product Details
DOUBLE LAYER CIRCUIT
Double Layer Pure Copper Flexible Circuit Board is Adopted to Ensure Excellent Conductivity and Extremely Long Service Life of the Lamp Strip.
Connect Drawing
Accessories
Power supply
Fixed buckle / Cable tie
Connector
Safe working environment - Improved visibility is critical in maintaining a safe working environment underground, with poor lighting cited as a contributing factor in many underground accidents. The Strip Lights illuminates potential dangers by providing a complete flood of light from floor to ceiling, as opposed to any globe configuration where these spaced lights can blow or get damaged. This can substantially boost the efficiency of workers.
Fast and safe repairs - Repairs can be carried out safely and quickly under live conditions, by only replacing the section that failed. The ingenious ring feed design, guarantees perfectly functioning lighting even when severed, further reducing the need for repairs.
Easier installation - LED Strip Lights are much lighter weight to carry and work with compared to conventional lighting. A Female individual can easily carry up to 100 meters or more and can install or maintain sections singlehandedly.
Less downtime - Strip Lights do not typically fail catastrophically, as is usually the case with fluorescent lighting, but rather the light output generally decreases over time. This allows for a regular maintenance schedule and replacement prior to failure, maintaining consistency of lighting, and improving safety underground.
Financial Benefit - Low maintenance in direct contrast to the short lifespan and high cost of conventional lighting systems due to the continuous need for replacement of components.
Energy – Efficient - LED lights use significantly less electricity and result in immediate and ongoing savings in running costs when compared to conventional lighting solutions such as incandescent globes or neon tubes
Packing
Application of LED Strip Light
This flexible LED light strip is great for underground mining lighting, cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited.
About Green Lighting
We are a manufacturer who is professionally manufactured LED mining headlamp, LED light strips, Flashlight, Charging rack and related accessories.
