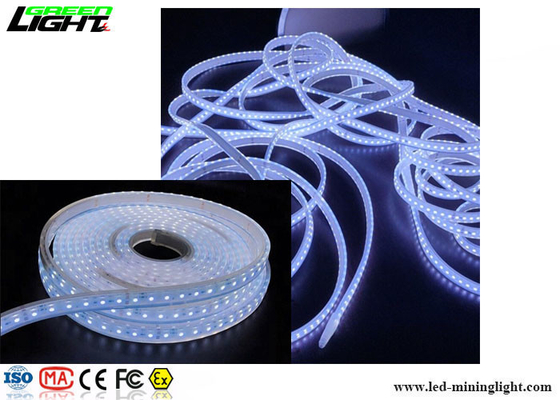

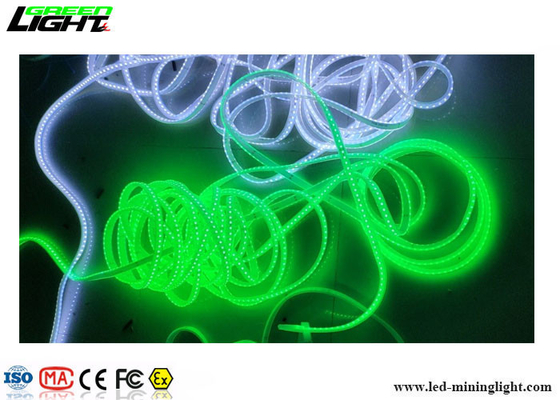

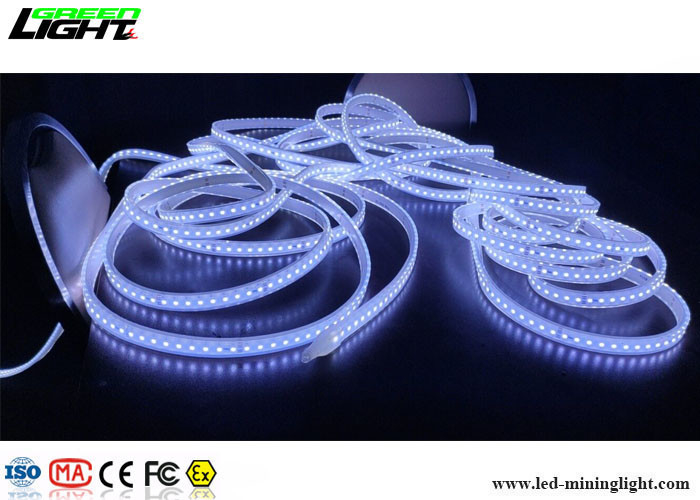

60LEDs IP68 16W LED Flexible Strip Lights For Underground Mines

Waterproof IP68 Flexible Led Strip Lights Cool White Color Suitable for Underground Mines Tunnel

LED Strip Lights features:

- For using In mines, hazardous by gas (methane) or coal dust
- Temperature for storage and transportation: ± 40 C
- Operating Temperature: - 10 / +20 C
- Relative humidity,%, at a temperature of + 40 ° C: - till 100%
- Dustiness of ambient air, mg / m3, no more: 1000 mg/m3
- Rated supply voltage: 12V/36V/110-130V AC /220-240V AC (preferably switchable)
- Luminous flux, Lm / m: 2000
- Color temperature, K: 3000K/4000K/5000K/6000K/7000K/10000K
- Lighting angle, degrees: 180
- Number of LEDs, pcs / m: 60-80 LEDs/m
- MTBF: 45000 H
- Degradation of luminous flux,% / year: 5-7%
- protection against dust and moisture: IP68
- LED Strip Housing Material: Silicon, flame retardant.
- Surge and surge protection
- Power driver: 240W/480W/750W


Specification of led strip light:

Super toughening silica gel soft with the over-molding process to better suit for hard underground mines surrounding

 The strip light usage details as below:

• Mainly designed for underground mines, tunnel.
• Can suit for Hazardous Location Class 1, Division 2
• Protection: explosion-proof, waterproof IP68, over-current protection, voltage regulation protection.
  So you can use it for dust, humidity, rain, tremors environment and under the environment of corrosive gaslighting.

Green Lighting LED Strip Lighting uses highly specialized components making it able to withstand being continuously energized. Green Lighting LED Strip Lighting functions at optimal efficiency in the most challenging environments for long periods of time. The light output lost is marginal at ±5% per annum for the first four years, thereafter stabilizing at ±1-2% per annum.

Reduced maintenance requirements

By comparison, the working life of a fluorescent light is significantly shorter than five years and therefore requires more frequent changing out of the light source, more maintenance activity, and potential operational impact.

LED Strip Lighting does not typically fail catastrophically, as is usually the case with fluorescent lighting, but rather the light output generally decreases over time. This allows for a regular maintenance schedule and replacement prior to failure, maintaining consistency of lighting and improving safety underground.

The optimum solution for mining illumination, Green Lighting LED Strip Lighting is made of a high grade, fire retardant soft Silica Gel and is IP68 rated, making it compact and robust.

• Virtually indestructible
• Long-lasting
• Easily installed

Application

Underground mines, Tunnel or other conditions and constant exposure to heat, cold, dust, dirt, moisture, and severe vibration sites.
