Place of Origin: | Shenzhen china |
Brand Name: | Green Lighting |
Certification: | CE, OSHA |
Model Number: | ZC-F04 |
Minimum Order Quantity: | Negotiate |
---|---|
Price: | Negotiate |
Packaging Details: | 5 pcs in a neutral box |
Delivery Time: | sample order at once, bulk order within 15-20 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces in a month |
Material: | Steel | Colour: | Red |
---|---|---|---|
Padlocks Available: | 7 Pieces Padlocks Available | Usage: | Valve |
Sample: | Yes, Available | Customers Logo: | Yes, Available |
MOQ: | Small Quantity Is Available | Hole Material: | 10mm |
High Light: | Gate Valve Lockout,Plug Valve Lockout |

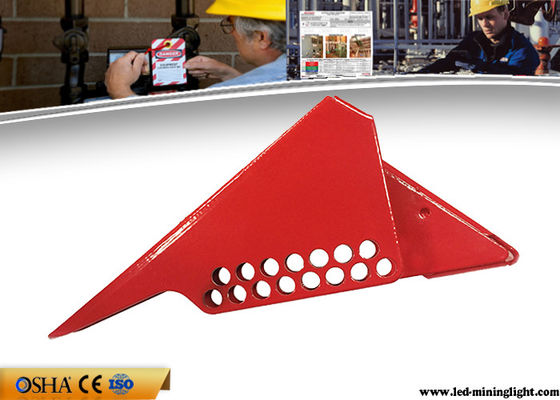

Steel Material Red 7 Pieces Padlocks Available Standared Ball Valve Lock Out
Specification:
ZC-F04 Standard Ball Valve Lockout
1. locks out pipes from 1 1/2'' to 3'' in diameter
2. made from Power-coated steel
3. delivery from Shenzhen port
Product Details:
1. Made from power-coated steel
2. Sing-piece design locks quater-turn ball valves in OFF position,very compact and lightweight solution.
3. Applied size:two sizes fit most valves up to 76.2mm.
4. Max padlock shackle diameter: 10mm
5. 7 holes for padlocks.
6. Colour can be customized.
Technical Specification:
Model No. | Description |
ZC-F03 | Suitable for DN8-DN50 Ball Valve |
ZC-F04 | Suitable for DN50-DN200 Ball Valve |
Lockout &Tagout Devices Valve Lockout:
Valve Lockouts are a simple, low cost and effective way to prevent unauthorised operation of valves. It enables different types and sizes of valves to be locked out. No other device offers such fleibility and security. All sizes and colors are available. Custom valve lockout can be made upon request.
Related Valve Lock Out:
ZC-F01 | Small lockout locks out pipes from 13mm to 64mm in diameter | ||||||||
ZC-F02 | Large lockout locks out pipes from 50mm to 200mm in diameter | ||||||||
ZC-F03 | Small lockout suitable for 1/4'' to 1'' pipes in diameter | ||||||||
ZC-F04 | Large lockout locks out pipes from 1 1/2'' to 3'' in diameter | ||||||||
ZC-F05 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes | ||||||||
ZC-F06 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes | ||||||||
ZC-F07 | Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes | ||||||||
ZC-F11 | Lockout suitable for 1" --- 2 1/2" valve rod | ||||||||
ZC-F12 | Lockout suitable for 2 1/2" ---5" valve rod | ||||||||
ZC-F13 | Lockout suitable for 5" --6 1/2" valve rod | ||||||||
ZC-F14 | Lockout suitable for 6 1/2"---10" valve rod | ||||||||
ZC-F15 | Lockout suitable for 10" --13" valve rod | ||||||||
ZC-F16 | Lockout suitable for 1" --- 6 1/2" valve rod | ||||||||
ZC-F21 | Lockout suitable for 8mm-45mm valve rod | ||||||||
ZC-F31 | For quarter-turn ball valves | ||||||||
ZC-F32 | For 3.4 or 5-way valves | ||||||||
ZC-F33 | Using cable attachment for gate valves | ||||||||
ZC-F34 | For butterfly valves | ||||||||
ZC-F35 | Universal valve lockout for most valves | ||||||||
ZC-F41 | Lockout suitable for valve diameter under 22mm. | ||||||||
ZC-F42 | Lockout suitable for valve diameter from 23mm to 34.9mm. | ||||||||
ZC-F43 | Lockout suitable for valve diameter from 44mm to 53.9mm. | ||||||||
ZC-F14 | Lockout suitable for valve diameter from 55mm to 63.5mm. |
Usage:
1. Perform daily maintenance on the equipment, maintenance, adjustment, cleaning, checking and debugging
2. Operation under high pressure
3. The operation that needs to temporaily turn off the security system
4. Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house, Tunnel Project, Mountain-climbing,Hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine, Military, Police, Fire Fighting, Dockyard and other hazardous.
Product Picture:
