Place of Origin: | Shenzhen china |
Brand Name: | Green Lighting |
Certification: | CE, ATEX, FCC |
Model Number: | GL5-B |
Minimum Order Quantity: | Negotiate |
---|---|
Price: | Negotiate |
Packaging Details: | 1 lampin a colourful box, also accept customized box |
Delivery Time: | 15 to 20 working days |
Payment Terms: | T/T or Western Union in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment |
Supply Ability: | 5000 pieces in a month |
Type: | Cord Miner Lamp | Colour: | White And Black |
---|---|---|---|
Material Of Cup Light: | Aluminum | Battery Type: | Rechargeable Li-ion Battery |
Battery Capacity: | 6600mAh | Logo Or Nameplate: | Yes, Available |
Charger: | 1A Single Charger | Sample: | Free Sample Is Available |
Highlight: | miners cap lamp,led mining cap lights |

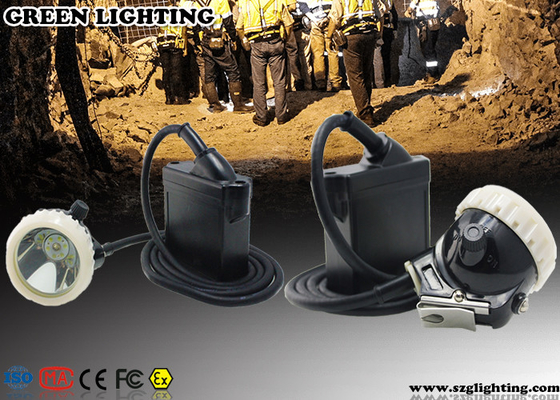

Classic Explosion - Proof PC Cord Coal Mining Cap Lights with 6600mAH
Specification:
GL5-B cord miner cap lamp is used 3W high power white led as main light, 6pcs SMD leds as the backup lights,and designed with high property 6.6Ah rechargeable Li-ion battery.
This cap lamp has 10000Lux strong brightness,long lighting time,long life time,high intensity,light weight,low usage cost,and high safety.
It can be used in Mine, underground working, Patrolling, Overhauling and Emergency in electrical power company,Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
Technical Specification:(All Technical Specs Can Be Customized)
GL5LM-B 10000lux Miner's Caplamp
Item | Unit | Value | |
Light | LED power | W | 3 |
source | illumimous flux | Lm | ≥120 |
lighting degree | Lux | ≥10000(for 1 meter) | |
lifetime | Hour | ≥100,000 | |
Battery | capacity | Ah | 6.6 |
voltage | V | 3.7 | |
charging time | Hour | ≤8 | |
lifetime | Cycle | more than 500 | |
Charger | input voltage | V | AC110-240 |
output voltage | V | DC4.2 | |
output current | A | 1 | |
Continuous lighting time | Hour | ≥18 | |
Lighting range | M | ≥50 | |
Working temperature | ℃ | -60 | |
Max surface temperature | ℃ | 40 | |
Outline dimension | MM | 77*93*41 | |
Weight (single lamp) | G | 500 | |
Type of protection | CE,ATEX,EXIB II M1 | ||
Protection category | IP68 |
Features:
1. CE/ATEX certified.
2. This miner's lamp is Explosion-proof, water-proof, protection in electrical
short-circuit,automatic power- off on the socket, 100,000 hours led
lifetime.
3. Light weight, portable,high quality, strong brightness, long life time.
4. More than 20 hours working time, more than 4000lux high brigtness, more
than 500 cycles lifetime of the battery.
5. One high power main light, 6pcs SMD leds backup lights.
6. All our lamps has one year warranty. We will keep free maintenance for
you in one year.
Packaging:
N.W:500g/PCS
Packing:Unit lamps & single Charger/instruction manual
1pcs/box,50pcs/CTN, Carton Size:44*36*44cm.
Green Lighting Accept Customized as client's requirements:
Appearance:
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour. Recently, customized the semi-corded, corded, cordless with Tracking position and Infrared receiver
Electronic Circuit:
Rich Experience Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.
Write the request to cap lamps, such as clients company name, LOGO, serie No and user name.
Structural Design:
Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof, Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products. MD team will field visit and according the use condition to design the waterproof.
Optical Design:
According to LED Luminous Flux, Light cup curve and current to design the Light Beam
