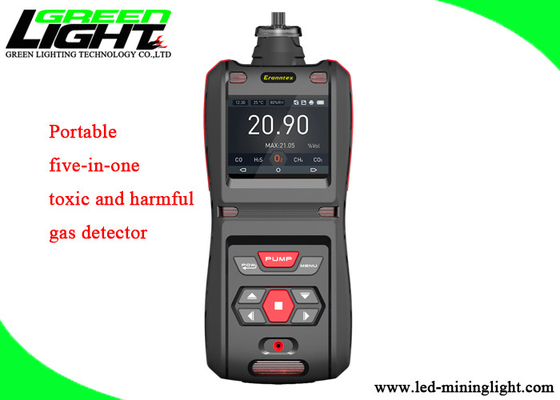

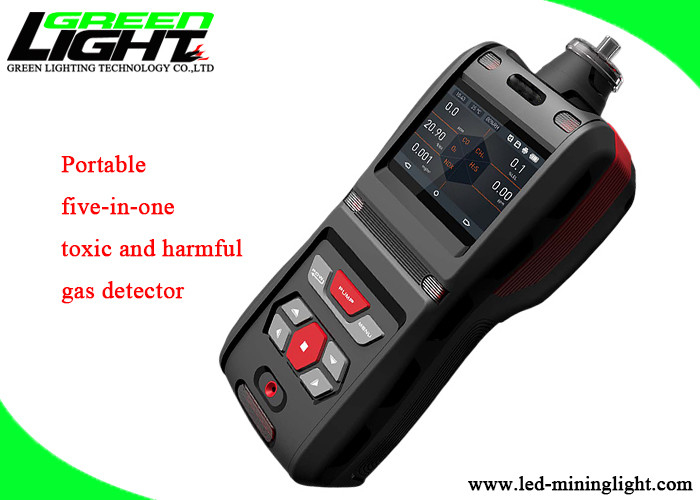

GL-MS500 Five In One Toxic / Harmful Portable Gas Detector For Petroleum Underground Mine

GL-MS500 portable five-in-one toxic and harmful gas detector can used for petroleum, underground mine and tunnel sites

Protuct overview of GL-MS500 portable gas detector:

GL-MS500 Portable composite gas detector can be used in: rapid detection of a variety of gas concentration and measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will sound. adopted 2.5-inch high-definition color screen for real-time display, adopted the gas sensors of internationally well-known brands, and the main detection principles include: electro chemical, infrared, catalytic combustion, thermal conductivity, PID photoionization, and so on. Advanced electric circuit design, mature kernel algorithm processing, unique external appearance design, had achieved a number of patents about the software works, external appearance, and so on. is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and the purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas. The types for detection are more than 500 types.

Protuct characteristics of GL-MS500 portable gas detector:

★ It is possible to simultaneously detect 1 ~ 5 types of gases, and the units can be switched freely:

Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.

★ Built-in pump-suction type measurement, integrated with the water vapor, dust filter, so as to prevent the damage of sensors and instruments due to the water vapor and dust, it can be used in the high humidity, and high dust environment, and the response is fast.

★ Rich human-machine interface:

2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.

★ Function of large-capacity data storage (capacity can be customized), and multiple storage modes are supported:

Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.

★ Various kinds of communication interfaces and printing functions:

Infrared communication interface (optional configuration), RS232 interface (optional configuration), USB interface automatic recognition, and the external mini wireless infrared printer is an optional configuration.

★ High temperature gas detection (optional):

The optional high-temperature sampling and cooling filter handle or high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at the temperature of 800 ℃. The detection for the gases at higher temperatures can be customized.

★ It is possible to switch among three display modes:

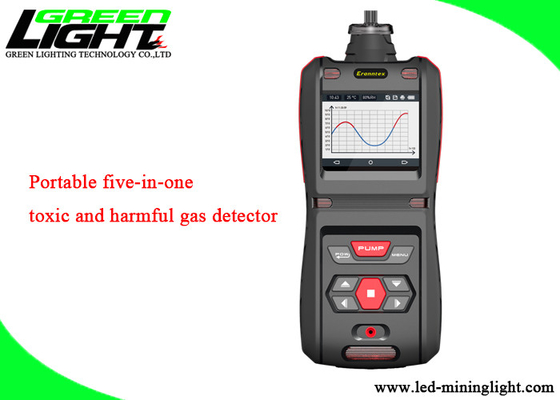

Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve.

★ Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.

Technical parameters of GL-MS500 gas detection:

More photos:

Application:

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

Q&A:

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 7-10days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the

goods to customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, Paypal, Western Union.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
