Place of Origin: | shen zhen City, China |
Brand Name: | Green Lighting |
Certification: | CE/ATEX/EXIBII |
Model Number: | GST-7B |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiation |
Packaging Details: | packing by colorful box of unit lamp with single charger |
Payment Terms: | Western Union, MoneyGram, T/T, L/C |
Supply Ability: | 5000pcs/month |
Battery Capacity: | 5.6Ah Li-ion Battery | Battery Votage: | 3.7V |
---|---|---|---|
Main Light: | 1.67w | Light Source: | 1pc Main Light And 6pcs Auxiliary Led |
Main LED Current: | 350mA | Cable Length: | 0.38 M |
Brightness: | 10000lux | Illuminous: | 156lum |
Battery Cycles: | 1000 Cycles | Waterproof Grade: | IP68 Waterproof |
LED: | CREE LED | ||
Highlight: | miners cap lamp,mining hard hat light |

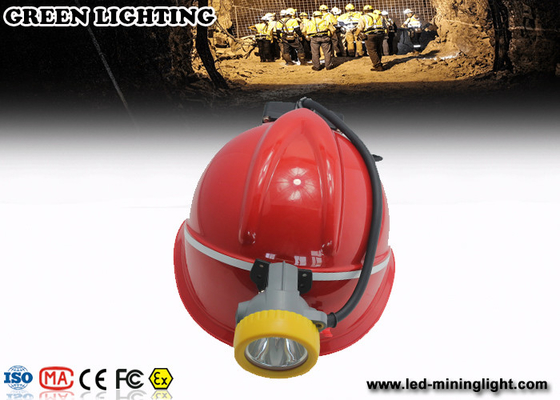

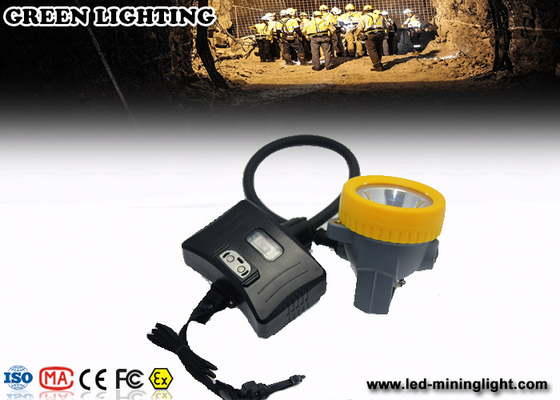

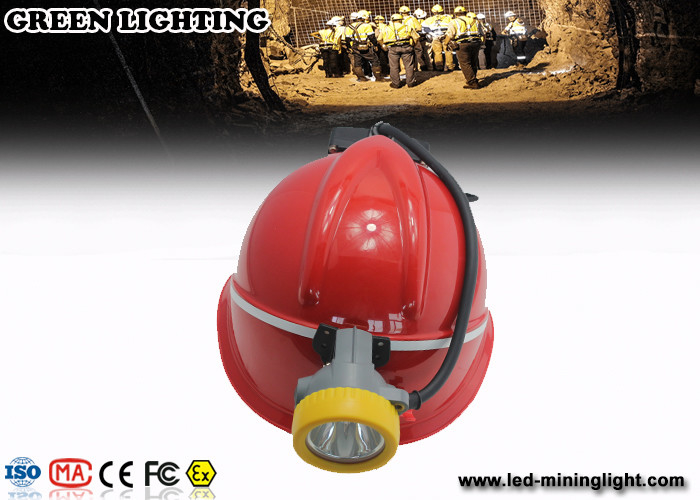

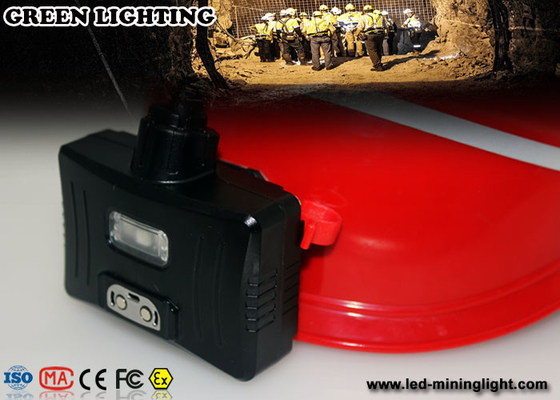

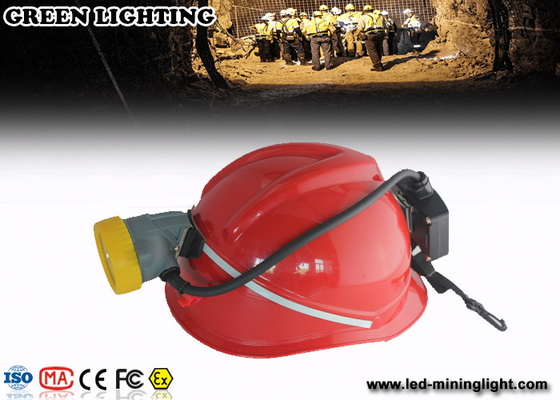

10000 Lux electric miners lamp , hard hat headlamp 5.6Ah Li ion battery
1.Features for Coal Miners Headlamp
a). High power LED light source, Lens:toughened glass.
b).Li-ion battery safety reliable, compact and light weight , free of maintenance .
c).Anti-overcharging , current control , short circuit protection and anti-overheating Charging protection .
d).Explosion-proof and strong impact resistance, waterproof , current shock proof, moisture proof , and impact proof.
e).safety : CE certified, Our these lamps can be used in any other hazardous locations.
2.Specification of miner cap lamp
Item | Value | ||||
Model | GST-7B | ||||
Light source | 1pc main light and 6pcs auxiliary lights | ||||
Battery capacity | 5.6Ah | ||||
Rated Voltage | 3.7V | ||||
Main light current | 350mA | ||||
Power of the main light | 1.3W | ||||
Illuminous | 156LUM | ||||
Brightness of the main light | 10000lux | ||||
Life span for main LED | 8000hours | ||||
Battery cycles | 1000 cycles | ||||
Working time | 16hours | ||||
Weight | 375g | ||||
Water-proof grade | IP68 | ||||
Certified | CE,ATEX,EXIB II M1 |
Instructions for use
The two choose the charging way
PACKING of Coal Mining Lights
4. Safety warning
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.
c) Please do not charge the lamp underground.
d) Please donot disassemble the lamp or repair the battery parts by yourself and donot replace the structure of the lamp and parts.
e) Please donot crash and stike the lamp.
We can provide good quality, quick delivery, AQ discount for all customers.
1). For all your inquires, we will reply you in detail within 24 hours.
2). OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3). We have sales who have engage in LED many years to provide custom-made the sales solution.
4). We have engineers who has the experience of projects to solve the problems of technical.
5). We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
6.Accept Customized as client's requirements:
Appearance
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour. Recently, customized the semi-corded, corded, cordless with Tracking position and Infrared receiver
Electronic Circuit
Rich Experience Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.
Write the request to cap lamps, such as clients company name, LOGO, serie No and user name.
Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof, Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products. MD team will field visit and according the use condition to design the waterproof.
Optical Design
According to LED Luminous Flux, Light cup curve and current to design the Light Beam
How to get samples:
If you want to get samples for testing or promotion, we will charge the samples cost and freight fee,but when you place the bulk order, we will return the samples cost to you.and the sample delivery time is about one week.
