Product Details:
| Place of Origin: | Mining lights supplier |
| Brand Name: | Green Lighting |
| Certification: | ATEX, CE, FCC,CSA |
| Model Number: | GL8-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNITS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | standard Packagingor customer's requirement |
| Delivery Time: | 15-20 DAYS |
| Payment Terms: | TT/West Union/PayPal |
| Supply Ability: | 10000 Units/Month |

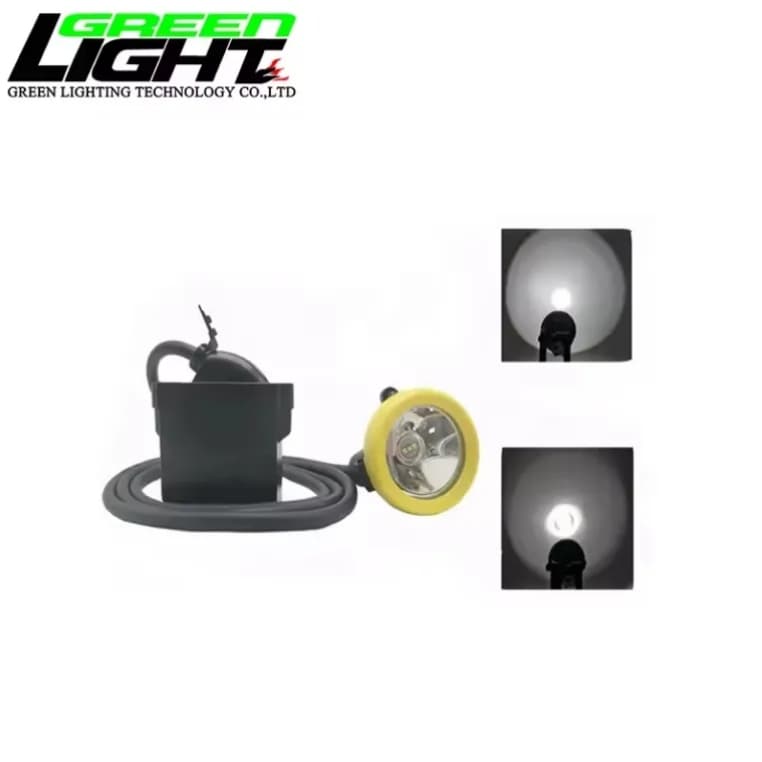

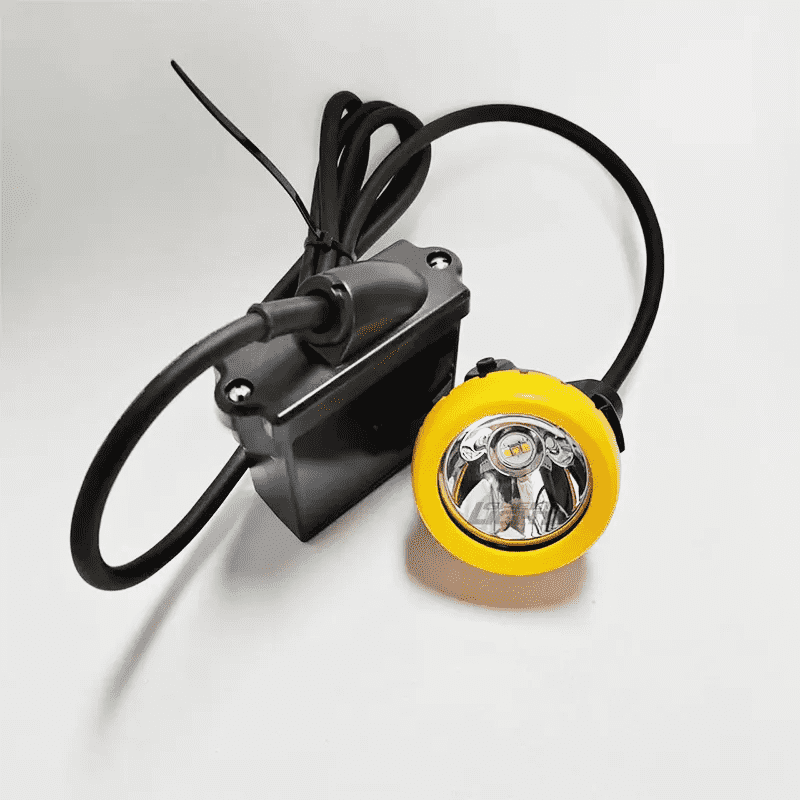

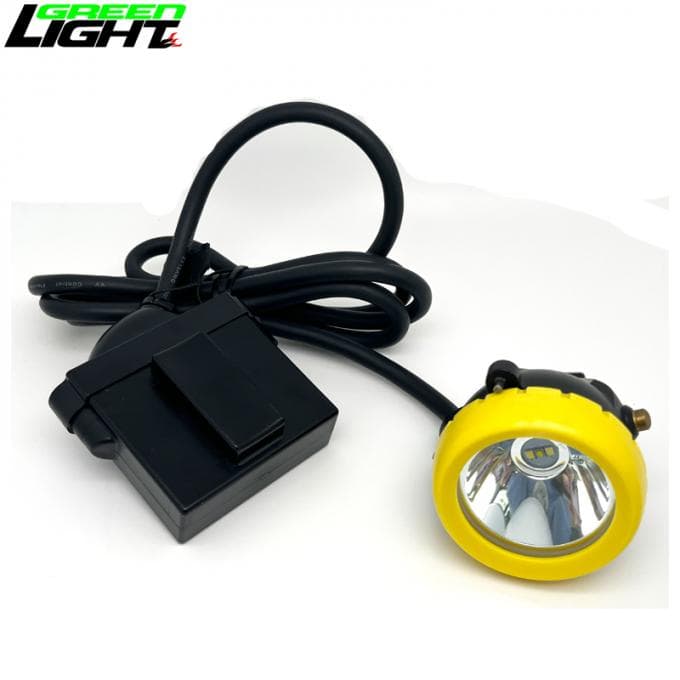

Underground Corded Miner Cap Lamp 7800mah 10000Lux Led Mining Light Impact Resistant Hard Hat Light is one type of miners cap lamp by Green Lighting, this Miner Cap Lamp is a professional-grade mining headlamp equipped with a high-brightness LED that delivers up to 10,000 Lux. Powered by a 7.8Ah rechargeable Li-ion battery, it supports three lighting modes—Strong, Auxiliary, and SOS—and offers up to 18 hours of continuous lighting. Engineered for underground mining, this miner cap lamp ensures maximum visibility, safety, and reliability, with IP68 waterproof, anti-explosive, and impact-resistant features. Compact and lightweight at just 420g, it enhances worker comfort while improving operational safety and efficiency in hazardous environments.
GL8-C corded miner cap lamp use 1pcs led as main light, 2pcs SMD leds as the auxiliary lights, and designed with high capacity 7.8Ah rechargeable Li-ion battery. It has three levels power as Strong - Auxiliary - SOS ! High power last for 18hrs.
This miner cap lamp are using special material instead of tradition lamps. It has strong brightness, long lighting time, long life time, high intensity, weight 420g, low usage cost, and high security.
|
|
| Model No. | GL8-C |
| Light source | one main light two auxiliary lights |
| Battery Capacity | 7.8Ah rechargeable li-ion battery |
| Rated Voltage | 3.7V |
| Main light current | 450mA |
| Power of main light | 1.67W |
| Illuminous | 216lum |
| Brightness | 10000lux |
| Life span of main light | 100000hrs |
| Battery cycles | 1000 cycles |
| Working time | 18hrs |
| Water-proof grade | IP68 |
| 7.8Ah Li-ion Battery | - Long runtime up to 18 hours - Reduces frequency of charging - Supports extended working shifts - 1000+ battery cycles, cost-effective |
| 10000Lux Brightness | - Strong light penetration in dark and dusty mining tunnels - Enhances worker visibility and accuracy - Increases safety in hazardous areas - Useful for both walking and task lighting |
| Application Area | Description |
|---|---|
| Underground Mining | Main use case; ideal for coal, gold, and metal mining |
| Tunneling Projects | Enhances safety in dark, humid tunnel construction zones |
| Rescue Missions | SOS lighting mode supports emergency rescue operations |
| Utility & Power Plants | Suitable for low-light inspection and maintenance work |
| Military or Exploration | Works in caves, bunkers, or harsh outdoor exploration sites |
Prices may vary based on customization, packaging, certification (e.g., ATEX), and shipping destination. Below is a common price range of miner cap lamp by Green Lighting, the actul price you should contact us to confirm.
| Quantity | Price (USD/Unit) | Notes |
|---|---|---|
| 1–50 pcs | $35 – $45 | Sample orders or small batches |
| 51–500 pcs | $30 – $35 | Bulk orders with standard packaging |
| 500+ pcs | $25 – $29 | Factory direct price with OEM support |
| Replacement Battery | $8 – $12 | Optional accessory, rechargeable 7.8Ah |
| Customization Item | Description |
|---|---|
| Logo Printing | Laser or silk-screen logo on lamp or battery pack |
| Light Color & Brightness | Adjustable color temperature or lux based on region/need |
| Cable Length | Customize the cord length for different helmets or applications |
| Battery Capacity | Options like 6Ah, 7.8Ah, or 8.8Ah available |
| Packaging | Custom packaging with company branding for retail or bulk |
| Charging Interface | USB / Magnetic / Traditional port options |
| Certifications | ATEX / CE / ISO / MSHA available based on region |
The miner cap lamp provides 10000Lux brightness using a high-power LED. It ensures clear visibility in deep, dusty mining tunnels, enhancing operational efficiency and worker safety during long shifts.
It uses a 7.8Ah rechargeable Li-ion battery, offering up to 18 hours of continuous lighting. The battery supports 1000 charging cycles, reducing long-term costs and making it ideal for extended mining operations.
This miner cap lamp is widely used in underground coal and metal mining, tunnel engineering, emergency rescue, and power plant inspection. Its rugged build and IP68 waterproof rating make it perfect for harsh environments.
The lamp features a durable silicon button. Press once for high beam, twice for auxiliary light, and three times for SOS signal mode. The user-friendly design ensures quick operation even with gloves on.
Yes, it is anti-explosive, flame-resistant, impact-resistant, and IP68 waterproof. It meets international mining safety standards and is designed for hazardous work environments, ensuring high safety for workers.
Yes, the GL8-C supports USB charging, making it convenient for modern workstations. Its fast-charge feature ensures quick turnaround between shifts while maintaining stable and safe battery performance.
