GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:
 |
| Place of Origin: | shenzhen ,China |
| Brand Name: | GREEN LIGHTING |
| Certification: | ATEX, CE., FCC.,SAA.,MSHA |
| Model Number: | GS-6 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 16USD/PC - 18USD/PC |
| Packaging Details: | gift box. 15*10*8cm each box, 44*44*36cm each carton, 50pcs/carton, 15.5kg/carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 100000PCS/month |
| Material: | PC | Battery: | 2.8Ah |
|---|---|---|---|
| Waterproof: | IP68 | Voltage: | 3.7V |
| Brightness: | >6000 Lux | Lifespan: | 1200 Cycles |
| Charging Time: | 3~5 H | Power: | 1W |
| Light Qty: | 1 Main Led Light +6 Aux Led Light | ||
| Highlight: | 6.8Ah Underground Cap Lamps,18000Lux Underground Cap Lamps,IP68 Coal Miners Hat Light |
||
Feature for High Performance semi-corded cap lamp- GLS-6
1. IP68 water-proof
2. Rubber coating process
3. Impact resistant
4.Anti-explosive
5.OLED screen with more infromation display
6.Panasonic high capacity battery
7.Strong engineer plastic
8.RGB rear warning light
Parameters Of Underground Cap Lamps
| Item | Value |
| Model No | GLS-6 |
| Light source | one main light two auxiliary lights |
| Rated voltage | 3.7V |
| Main light current | 600mA - 1000mA |
| Power of main light | 2.3W / 3.7W |
| Illuminous | 481lum |
| Brightness | 15000lux - 18000lux |
| Battery capacity | 6.8Ah |
| Battery cycles | 1200 |
| Working time | 13hrs - 8hrs |
| Weight | 275g |
| Water-proof grade | IP68 |
| Protection grade | Ex ia |

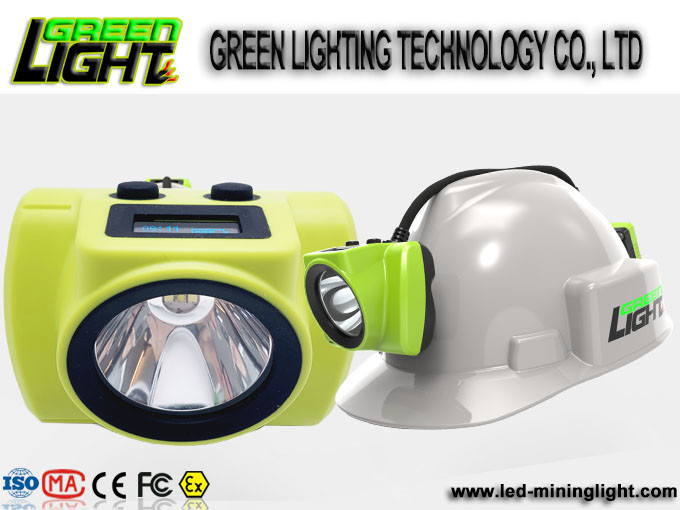

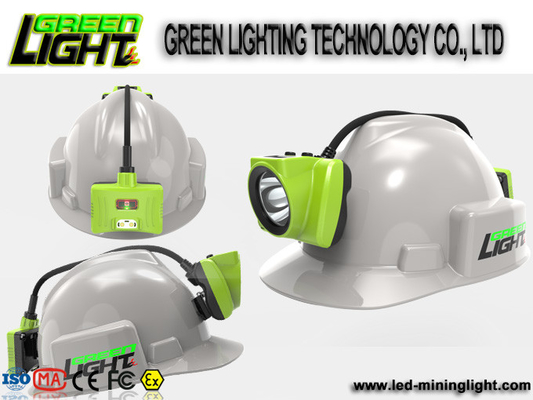

Super Bright Rechargeable Led Headlamp Image:
Coal Miners Helmet Light can be widely used for :
Super Bright Rechargeable Led Headlamp Product Advantages:
Safety : Over-charging protection , over-discharging protection, protection in electrical short-circuit,
automatic power-off on the socket , 100,000 hours LED’s Lifetime
Portability : All-in-one structure, Small in size , light in weight (only 158g for whole product),
inductive charging, easy usage
Efficiency : more than 15hours at full brightness, over 80hours at back up led brightness.Over 6000lux
Brightness
Environmental : Li-ion battery is free for maintenance, and the material of li-ion is environmental, use
1Watt high power LED as the main light, and 6pcs backup LED’s to save power
Economy : three times longer than lead and acid cap lamp and saving in maintenance makes the product
more compatible in price
Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous discharging time: more than 15hours at full brightness, over 80hours at back up led brightness.
Type of protection : IMI EXia IICT6 (Zone 1 and 2)
Protection category : IP68
Characters:
Super Bright Rechargeable Led Headlamp Transportation, Storage
Transportation: The transport process is not allowed by the severe mechanical shock and exposure Rain, prevent throw throwing , rolling, pressure .
Storage: miner's lamp should be stored at ambient temperature 0~40℃,relative bumidity of 45%-90%. Dry, clean ,and wellventilated, non-corrosive medium warehouse, should stay away frion fire and heat, If long-term storage, please filled to 80% of capacity, and charge about 5hours after three to four months.
Troubles and troubleshootings of Underground Cap Lamps
| Description | Analysis | Troubleshooting |
| Light is not bright |
Switch contact is bad / Led source is broken |
Inspect switch, measure the circuit, If the switch contact is good, then check the voltage of LED and the circuit or contact with the manufacturer. |
| Not Light enough time | Undercharge |
First check the contact points, and then charge according to the regulation . |
|
New lamp use without cycle charge before |
Precycling charge according to the regulations. | |
| The Lifespan of battery is over | Replace the new lamp | |
| Illumination is not enough | Low battery voltage |
Measure the battery voltage, ensure charging time up to 7hours. |
| The glass is serious pollution | Can wash the lens suface of lamp by water . | |
|
The lamp can't charge or long charging time |
Charger (rack) breakdown or battery damages, charge manager fault |
Check the charger 's output voltage and current , if all normal, check the battery , measure its internal resistance and capacity. If not up to technical requirements, replace charger or contact with the manufacturer. |
| Can't rotate on fixed point | The screws of clip is started | Fasten the screw appropriately |
Contact Person: Miss. Jessica
Tel: 0086-13510629333
Fax: 86-755-84820206
