Forklift Vehicles Safety UWB ABS LED Miners Cap Lamp

forklift vehicles safety system keep forklift vehicles and workers distance safe to prevent collision accidents

Forklift safety management products

Vicious accidents lead to : suspension of production lines, major compensation, and accountablity for accidents.

Following is the situation would happen accidents:

1. Speed like a tiger, warning and speed limit are the key..

2. Visual dead angle cannot be avoided; wireless sensing and accurate ranging warning technology are safer.

3. Speding / Rolling / Cornor crash fatigue driving / Reversing / Perspective blind spots.

* Solution System Features:

1. Anti-collision function: the distance between the tag or other base stations and the current base station is less than the set distance, and a high frequentcy alrm signal is issued.

Early warning function: when approaching the collision avoidance area, a low frequency alarm signal is output while the throtte control signal is output to force the speed limit (the early warning area can be set to 0-5 meters)

2. High-precision distance measurement: real-time measurement of the precise distance of a tag within a radius of 1-100m, with an accuracy of 10cm.

3. Forklift speed control management: three levels of speed alarms can be preset, and the alarm methods will be different for different levels.

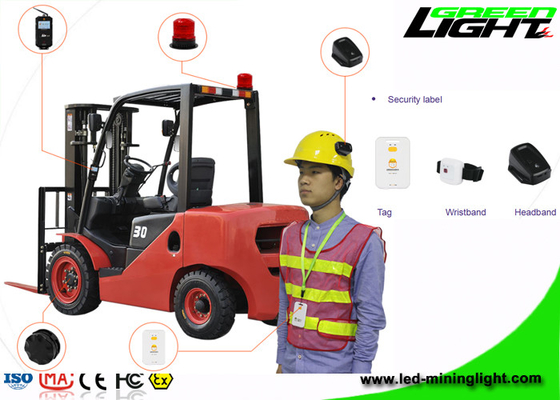

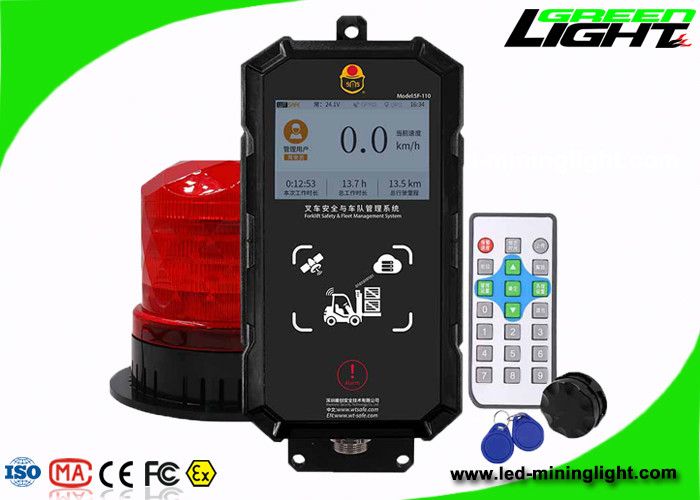

* Accossories Introduction:

Station	Label	Wristband	Badge
Rated voltage: 12V-48V DC Size: 120 × 120 × 61 (mm) Working temperature: -20 ℃ — 50 ℃ Frequency band and distance: UWB (Ultra-Wide Band) 6240–6739.2MHz Detection distance: 5-50m Number of tags: 50 Antenna: built-in antenna Housing: ABS, waterproof Gross weight: about 270g	Power supply: built-in 550mAh rechargeable lithium battery Size: 40 × 40 × 20 (mm) Working temperature: 0-50 degrees Celsius Frequency band and distance: UWB (Ultra-Wide Band) 6240- 6739.2MHz Antenna: built-in Housing: ABS Gross weight: about 38g	Power supply: built-in 550mAh rechargeable lithium battery Size: 40 × 40 × 20 (mm) Working temperature: 0-50 degrees Celsius Frequency band and distance: UWB (Ultra-Wide Band) 6240- 6739.2MHz Antenna: built-in Housing: ABS Gross weight: about 38g	Power supply: built-in 550mAh rechargeable lithium battery Size: 40 × 40 × 20 (mm) Working temperature: 0-50 degrees Celsius Frequency band and distance: UWB (Ultra-Wide Band) 6240- 6739.2MHz Antenna: built-in Housing: ABS Gross weight: about 38g

* Technical Principle:

* Solution Basic Functions:

1. Three-level speed alarm

Forklift speed control mangement threes of speed alarms can be preset.

2. Speed limit system

Forklift speed control management: three levels of speed alarms can be preset.

3. Unique ID

The micro base station installed on each vechicle, the micro-tag worm by employees, the unique ID of the entire network, and the driver

4. Distance accurate measurement

Obtain the precise distance and alarm according to the set alarm distance. If set to 7.5 meters, enter the 7.5 meter circle to trigger the

alarm. The setting range is 0.1 meters to 100 meters.

6. Multiple alarm modes

Gradual alarm: the louder it gets closer; b. Voice alarm: "Forklifts pass by, please don't approach"; c. Multi-level warning:

the sound of each level is different.

7. Intelligent management function

Can record and output the number close to the person, can cut off the vehicle power, tag can customize the vibration, and upgrade the

full-field positioning module..



* System solution Applications:

1. Corner anti-collision warning system

The corner anti-collision warning system uses femtosecond speed ranging to accurately determine whether the person is in the corner area,

and reminds the plant personnel to maintain a safe distance from the form vehicle to avoid collision.

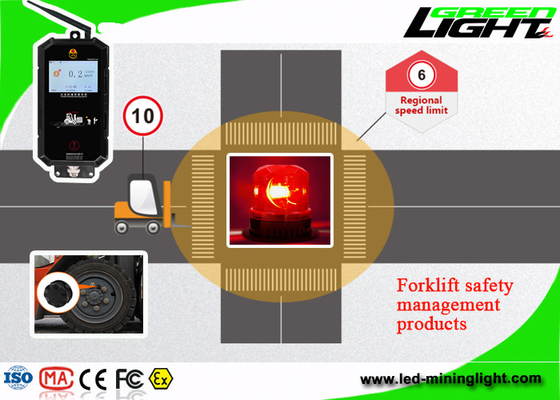

2. Anti-collision warning at crossroads

Area-specific speed limit strategy: When the vehicle travels to a set area, the speed limit is automatically set.

3. Anti-collision at the entrance
A rangefinder host is placed on the top beam of the doorway, and a tag is placed on the vehicle body.

When the forklift is ready to enter and exit the doorway, the rangefinder host will sound and light alarm to remind you to pay attention to pedestrians and pass safely.

* Application Object:

Internal combustlon forklift;

Electric balance forklift;

House aisle forklift;

Stacker;

Forklift forward;

Mining machine;

Loading car;

Excavator;

Gantry crane;
