| Place of Origin: | Shenzhen China |
| Brand Name: | Green Lighting |
| Certification: | CE, ATEX,ROHS |
| Model Number: | GL6-B |
| Minimum Order Quantity: | 1piece available |
|---|---|
| Price: | negotiable |
| Packaging Details: | colorful gift box; can be customized as your request |
| Delivery Time: | sample order for 3-5 working days, bulk order within 10-25 working days |
| Payment Terms: | L/C, T/T, Western Union for 100% Payment Before Delivery |
| Supply Ability: | 10000 pieces per month |
| Features: | 1pcs ML+4pcs AL And High Brightness | Type: | Headlamps |
|---|---|---|---|
| Waterproof Grade: | IP67 | Brightness: | 50000lux |
| Battery Type: | Rechargeable Lithium Ion Battery | Usage: | Mining, Hunting, Finishing,emergency Rescue |
| Service: | OEM ODM Available | Color: | White, Green, Yellow Bezel Can Be Customized |
| Highlight: | coal miners lamp,miners helmet light |
||

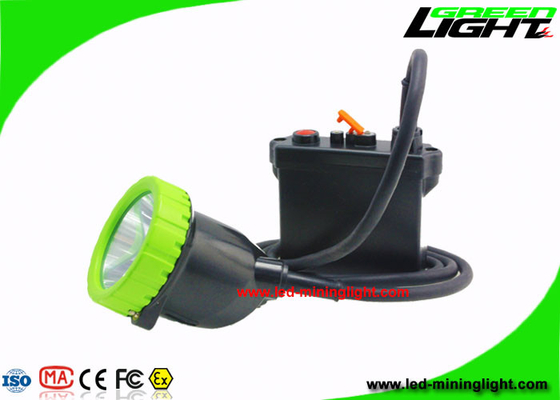

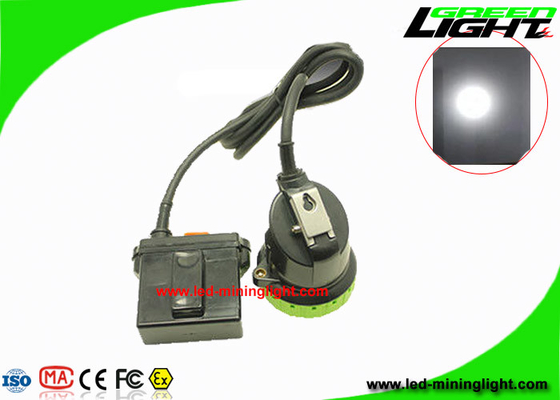

High Safety 11.Ah 50000Lux Underground LED Coal Mining Lights For Hunting
Main Features for Model GL6-B hunting lights:
1.Material:
1) anti-impact engineered polymer resin(ABS)
2) Silicone button and Soft touch
3) Defence grade: IP68
2.Humanization design:
1)Invagination design of charging contact hole is sturdy and durable
2)Stainless steel cap hook clamp design
3)Durable in use
3.Circuit design:
1) Constant current circuit, constant luminance
2) Set up charge manager inside
3) Protection function of overcharge, over-discharge and short circuit
4.Lamp holder design
Fixed anti-dismantling screws can prevent accidental opening under the mine
5.Light source and light cup design
1)Imported LED light source
2) Spinning aluminium alloy light cup
3) Good gathering effect High luminance, Good heat dissipation
6.Power supply
1) Adopt the self-developed lithium battery 18650
2) Safety signs licence
3) Explosion -proof inspection certificate
Main parameter of rechargeable headlamp:
| Model | GL6-B |
| Light Source | 1ML and 4AL |
| Rated voltage | 3.7V |
| Main Light current | 1000mA |
| Power of main light | 3.7W |
| Illuminous | 650lum |
| Brightness | 50000lux |
| Life span of main light | 100000hours |
| Lighting working time | 13hours |
| Battery cycles | 1000cycles |
| Color | yellow and black(can be customized) |
| Waterproof grade | IP67 |
| Certificate | CE, ATEX,ROHS |

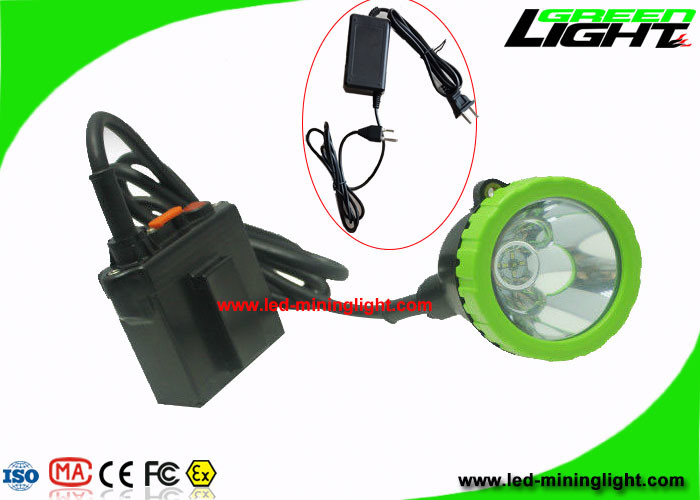

Charging as below picture shown:
Application
LED Cap Lamp Trouble Shooting:
1. If abnormal phenomena happen but the lamp is in the normal using status,must be
careful to check the reason firstly.Then deal with the problem.
2. The lighting time is not enough
| No | Reason | Treatment |
| a | No enough charging | First,should check if the connection between the charger’s output plug and lamp’s charging socket is good |
| b | Using too long to achieve life | Replace the lamp |
| c | Charger does not work | Check if the indicator of charger is good and also check if the connection of charger’s AC power endpoint is good |
3, The lamp is off suddenly when it works
Reason:short circuit or battery power runs out
Treatment:turn off the main light source,restart,then the lamp should be on (remark:
the lamp has a circuit breaker);It is is still off after restarting,please charge the battery.
If it still doesn’t work after charging,it means the lamp has some problems,delivery the
lamp to factory for repair.
