Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp

Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp

  • Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp
  • Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp
  • Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp
Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp
Product Details:
Place of Origin: shen zhen City, China
Brand Name: Green Lighting
Certification: CE/ATEX/EXIBII
Model Number: GST-7B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: packing by colorful box of unit lamp with single charger
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Battery Capacity: 5.6Ah Battery Votage: 3.7V
Main Light: 1.67w Light Source: 1pc Main Light And 6pcs Auxiliary Led
Main LED Current: 350mA Color Of Cover Head Lamp: Yellow
Weight: 375g Cable Length: 0.38 M
Brightness: 8000lux Illuminous: 156lum
Battery Cycles: 1000 Cycles Waterproof Grade: IP68
High Light:

led mining cap lights

,

mining hard hat light


Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp

1.Features for Coal Miners Headlamp
a). High power LED light source, Lens:toughened glass.
b).Li-ion battery safety reliable, compact and light weight , free of maintenance .
c).Anti-overcharging , current control , short circuit protection and anti-overheating Charging protection .
d).Explosion-proof and strong impact resistance, waterproof , current shock proof, moisture proof , and impact proof.
e).safety : CE certified, Our these lamps can be used in any other hazardous locations.

2.Specification of miner cap lamp

ItemValue
ModelGST-7B
Light source1pc main light and 6pcs auxiliary lights
Battery capacity5.6Ah
Rated Voltage3.7V
Main light current350mA
Power of the main light1.3W
Illuminous156LUM
Brightness of the main light8000lux
Life span for main LED8000hours
Battery cycles1000 cycles
Working time16hours
Weight375g
Water-proof gradeIP68
CertifiedCE,ATEX,EXIB II M1

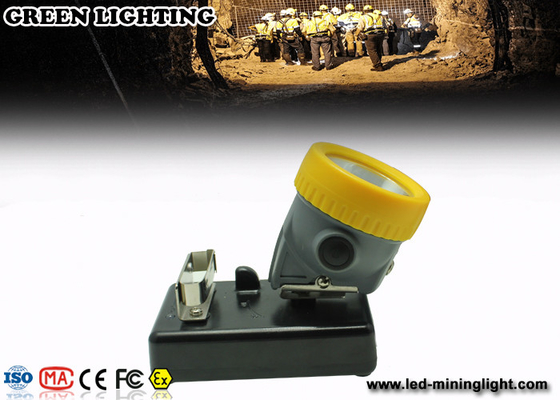

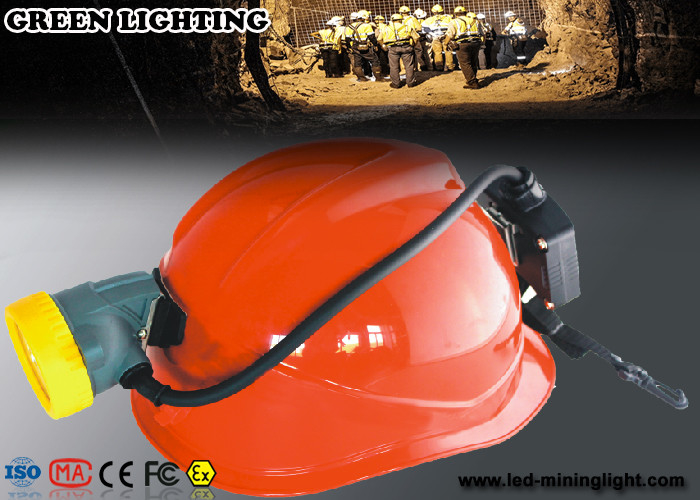

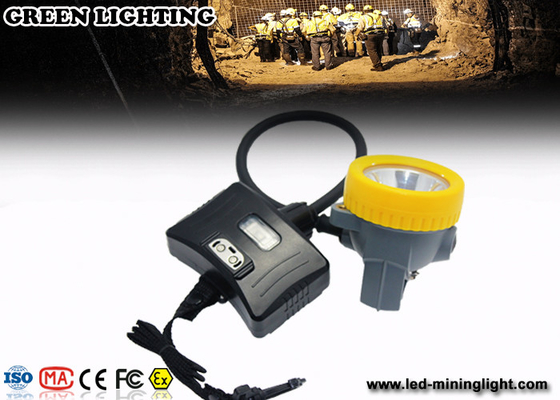

3. LED Mining Cap Lamps Images

Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 0

Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 1

Instructions for use

Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 2

  • In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.

battery box
Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 3

PACKING of Coal Mining Lights
Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 4
Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 5
Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp 6
4.Competitive Advantage

  • High power LED light source, extra long lifetime
  • Li-ion battery, compact and light weight, free of maintenance
  • Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating

5.Troubles and troubleshootings

Trouble descriptionTrouble analysisTroubleshooting
Light is not on when pressing
the button
Battery power is used up or
Automatic opening protection
Charge the lamp
Working time is less than
12 hours
Battery is not fully chargedMake sure the lamp well
connected to the charger
when charging
Longer charging timeThe charging points poor contactClean the charging points
and the slot
Low illuminanceDirty lensClean water wash lens


6. Safety warning
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.
c) Please do not charge the lamp underground.
d) Please donot disassemble the lamp or repair the battery parts by yourself and donot replace the structure of the lamp and parts.
e) Please donot crash and stike the lamp.


7.Our Services

We can provide good quality, quick delivery, AQ discount for all customers.
1). For all your inquires, we will reply you in detail within 24 hours.
2). OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3). We have sales who have engage in LED many years to provide custom-made the sales solution.
4). We have engineers who has the experience of projects to solve the problems of technical.
5). We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
