OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging

OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging

  • OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging
  • OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging
  • OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging
OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging
Product Details:
Place of Origin: shenzhen China
Brand Name: GREEN LIGHTING
Certification: CE,ISO,ROHS,ExSI
Model Number: GLC-6S
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiating
Packaging Details: gift box,15*10*8cm each box,44*44*36cm each carton
Delivery Time: sample order 3-7 woking days,bulk order within 1 week
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Working Time: 14-16hours LED: CREE
Battery Capacity: 6.8Ah Brightness: 18000lux
Life Span Of Main Light: 100000hrs Working Temperature: -10 ~ 45 °C
Weight: 245g Ip Rating: IP 68
Delivery Ways: Express,by Sea,by Air DC Output: DC4.2V,1A
Highlight:

OLED Screen Cordless Mining Lamp

,

6.8Ah Cordless Mining Lamp

,

18000lux Corded Miners Cap Lamp

OLED Screen USB Charging 18000lux Strong Brightness Customized 6.8Ah Cordless Mining Lamp Manufacturers



Quick detail



GLC-6S Mining Cap Lamp is Green Light Latest cordless cap lamp.New generation-Update generation on the basis of GLC-6 according to cusomers feedback. Uses CREE 3W high power white led as main light, 2pcs SMD LEDs as the auxiliary lights, and designed with high capacity 6.8Ah rechargeable Li-ion battery.

With the specially designed reflector maximum is 25000lux. Lighting time is more than 18 hours, 4 hours charging time with USB.OLED Display the battery status, time, date and client's company information.



Specifications



Model GLC-6S Cordless cap lamp
Light source one main light two auxiliary lights
Battery Capacity 6.8Ah
Rated Voltage 3.7v
Main light current 400mA-530mA-1000mA
Power of main light 4.2W
Illuminous 232lum
Brightness 9000lux-14000lux-18000lux
Life span of main light 100000hrs
Battery cycles 1200 cycles
Working time 17hrs-13hrs-6hrs
Weight 245g
Water-proof grade IP68



Main features of GLC-6S Cordless cap lamp



1)Rated Capacity:5Ah Rated Voltage:3.7V.

2)Begin lighting:>13000Lx Lighting 11h:>8000Lx

3)Battery life:>1200times



a) Small,Light weight,Easy to carry and energy efficient,Equipped with specially designed optical system,with primary and secondary pairs of light. When one light source is damaged, the other source can ensure the work in mine and safe evacuation.

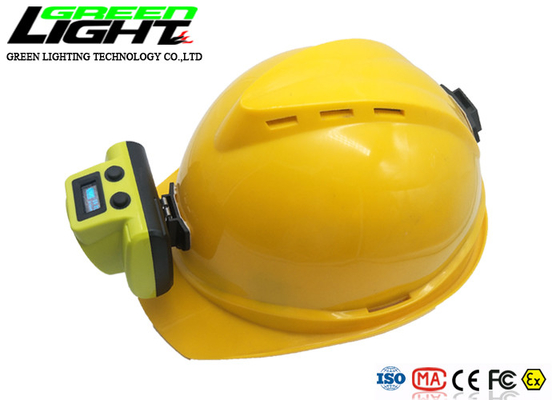

b) The produce is portable, made of lamp holder, cable and battery (including lithium battery, security device and the battery slot, etc.). The lamp is equipped with two light sources, and it can be fixed on mine helmet. The case is made of Bullet-proof ABS Material. Excellent toughness, Anti-static, waterproof, and moisture-proof, the miner's safety is highly improved.



c) The mine’s lamp is maintenance-free, no need to replace the light source and add additional acid for the battery. The battery has over-voltage, over-current, over-discharge, over-temperature protection, short circuit protection and other automatic protection function, and use of safe, reliable. The life of LED is long.

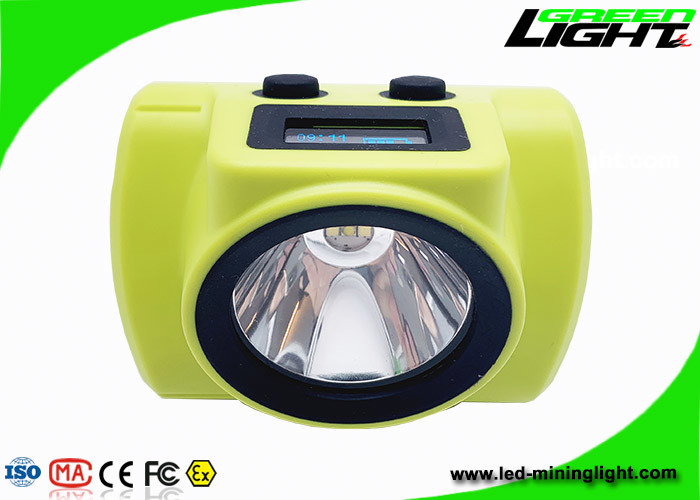

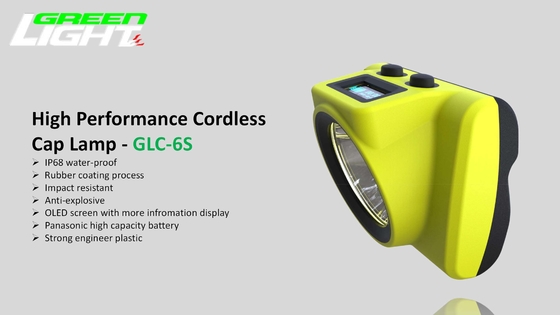

Product Pictures:

OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging 0OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging 1OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging 2OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging 3



OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging 4



Technical parameters



NO.

item

parameter

unit

remark

1

Rating voltage

3.7

V



2

Rating capability

5

Ah



3

Lighting duration(main lamp-house)

≥20

H

The real duration is more

4

intensity of illumination(main lamp-house)

beginning

8000

Lux

1 meter from the lamp





After 11 hours

5000





5

LED average current

main lamp-house

350

MA







secondary lamp-house

160





6

Charge protective voltage

     4.8

V



7

Discharge protective voltage

     3.0

V



8

Battery circular life

>1000

CIRCLE

Circular times

9

Weight

200

    g





Application



This cap lamp can be used in Mine, underground working, Patrolling, Overhauling and Emergency in an electrical power company, Military, Police, Fire Fighting, Dockyard, and other hazardous locations, etc.

OLED Screen 6.8Ah Cordless Mining Lamp 18000lux USB Charging 5

Packing
one set each gift box with 1pcs lamp + 1pcs USB +1pcs Wall charger + 1pcs Manual 30 sets/ carton



FAQ


Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. We can offer you sample to test for free and you pay the delivery cost.
Q: 2. What is the lead time?
A:Sample needs 5-7days, mass production time needs15-20 days.
Q: 3. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 4. How to make this payment?
A: L/C,TT, Paypal, Western Union.
Q: 5. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 6. Do you accept OEM/ODM?
A: Yes, it’s available.ODM / OEM can be accepted and logo can be customized according to your requirement.
