IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery

IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery

  • IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery
  • IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery
  • IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery
  • IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery
IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery
Product Details:
Place of Origin: shen zhen City, China
Brand Name: Green Lighting
Certification: CE/ATEX/EXIBII
Model Number: GLT-7B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: packing by colorful box of unit lamp with single charger
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Type: Led Cap Lamp Underground Mining​ Votage: 3.7V
Working Time: >20h LED Lifetime: >100000hours
Main LED: 1.67W Brightness: 10000lux
Weight: 500g Cable Length: 1.6 M
Water Proof: IP68 Battery Capacity: 6.6Ah
Battery Type: Li Ion Battery
High Light:

miners cap lamp

,

led mining headlamp

IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ with Li ion Battery


1. Features for this LED Mining Light

a. 10000lux strong brightness
b. Anti-explosiove, corrosion-proof.
c. IP68 water-proof
d. two lighting modes: strong - auxiliary lighting
e. Short circuit and over charging protection
f. There is extra space for the tracking tag system in the battery case.
g. 6.6Ah big battery capacity for long working time.
h. Button switch passed 100000 times testing, it is more reliable


2.Specification for underground mining led cap lamp



GST-7B Specification
Type LED Mining Light
Light Main LED quantity 1pc
Auxiliary LED quantity 6pcs
Main light power 1.67watt
Main light current 450mA
Main light Luminous flux 216LUM
Brightness of the main light
(Initial Lighting degree)
10000LUX
Main light Life span 10000hours
Auxiliary light life span >5000hours
Auxiliary light power 0.4watt

Battery Type Lithium ion battery
Quantity 4 cell
Rated capacity 6.6Ah
Rated Voltage 3.7V
Cycles times 1000 cycles
Continuous working time 16 hours
Short circuit protect time < 320uS
Charging time 3.5h (by charger or USB)

Usually Specification Color Black+Blue
Material PC
Main cable length 1.6m
Waterproof IP68
Weight 560g
Water-proof grade IP68
Certified CE,ATEX,EXIB II M1

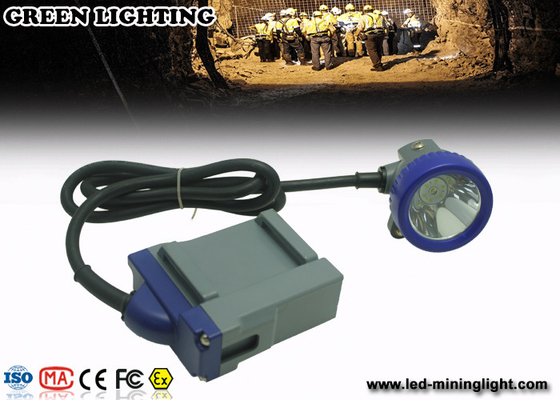

3.Led Cap Lamp Underground Mining​ Product Image

 IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery 0

  • The LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp.



Packaging Details:
One lamp and one charge in 1 colorful box, 50boxes/ carton , carton size: 36cm*44cm*44cm.

Instructions for use

  • In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
  • To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.

4.Usage of Coal Mining Lights

It is suitable for mineral industry, tunnel projects,construction and maintenance for power, communication,
highway, railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a
flood, rescuing and marine use. Patrolling,Overhauling and Emergency in electrical power company,Platinum,Coal, Gold Mine and so on.

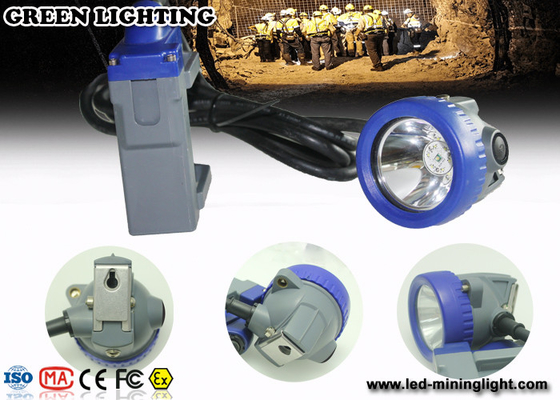

 IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery 1
5.Led Cap Lamp Underground Mining​ Competitive Advantage

  • High power LED light source, extra long lifetime (100000 hours)
  • Li-ion battery, compact and light weight, free of maintenance
  • Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating
  • With our GLT-7B special charger,input 110-250V,50-60HZ,output:4.2V 450MA
  • Water proof, current shock proof, moisture proof and impact proof

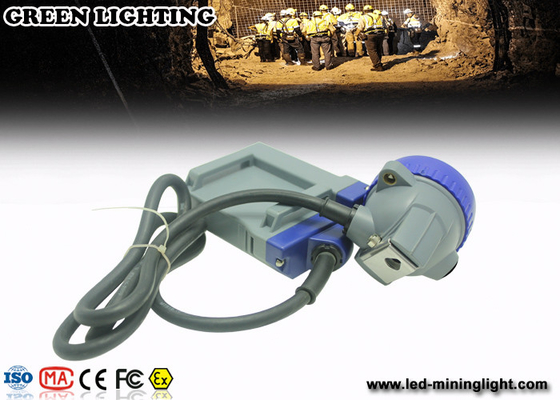

IP68 Waterproof 1.67W Led Cap Lamp Underground Mining​ light With Li Ion Battery 2


6.  Led Cap Lamp Underground Mining​ Safety warning

a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety,     reliability to work underground.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
e) Please donot disassemble the lamp or repair the battery parts by yourself.
f) Please donot crash and stike the lamp.
g)Please donot replace the structure of the lamp and parts.
