IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k

IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k

  • IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k
  • IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k
IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k
Product Details:
Place of Origin: china
Brand Name: GREEN LIGHTING
Certification: MA, CE, ISO, ATEX
Model Number: GL-CRD8104-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: 1pc / carton, 4.2kg / carton
Delivery Time: 10-15days
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs each month
Contact Now
Detailed Product Description
Power: 100W Input Voltage: 110V - 230V 47 - 63Hz
IP Grade: IP67 Explosion-proof: Exd II CT6GB
Luminous: 13000lum Water-proof Grade: IP67
Color Temperature: 5500 - 6000k Gross Weight: 4.2kg
High Light:

roof tunnel light

,

tunnel led lighting

100W high power COB light source led tunnel light with 13000lum and die-casting
aluminum case

This anti-explosive tunnel light is die-cast aluminium housing with spray treatment,
Housing wear resisting, anti-corrosion, dust- proof and water proof.
Other power 60W, 80W, 90W, 100W are all available.

Specifications for this anti-explosive led tunnel light.


Model NoGL-CRD8104-C
Power 100W90W80W
LEDBridgelux 100WBridgelux 90WBridgelux 80W
Brightness13000LM11700LM10400LM
CRI>90>90>90
Color temperature5500 - 6000K5500 - 6000K5500 - 6000K
Beam angle120 degree120 degree120 degree
Frequency range47 - 63Hz47 - 63Hz47 - 63Hz
Power factor>0.95>0.95>0.95
Storage temperature-40 - +80-40 - +80-40 - +80
Working enviroment-40 - +50-40 - +50-40 - +50
Working lifetime>80000hrs>80000hrs>80000hrs
Body materialdie-casting aluminumdie-casting aluminumdie-casting aluminum
Water-proof gradeIP67IP67IP67


Features of this anti-explosive led tunnel light.

1. New high efficiency constant current drive.
2. Wide range of input voltage.
3. Work perfectly in the high humidity environments.
4. No delay start, no glare, no humming.
5. Long life, energy savings.
6. No Toxic Mercury, lead, no air pollution.
7. Eliminates maintenance and reduces costs.
8. Well designed High power led module
9.>120lm/W
10.meanwell drver
11.MA, CE, ATEX certified.

Performance description for this led tunnel light.

Housing Construction:
Low-copper content cast aluminum
Safety yellow powder coat

Light Source:
Bridgelux LED outdoor floodlight
50,000 hours average rated life
2000 lumens

120° beam angle

Compliances
Watt: 100W
IP class: IP67

Ex-mark: ExdⅡCT6

Our this led tunnel light support three kinds installations.

Derrick installation, wall fixed installation, Guardrail installation.


Application for our led tunnel light

1. Approved for safe use in the explosive environment under the coal mine where the
    methane and the explosive dust exist.
2. It is the idea lighting solution for the underground tunnel in the underground
     chamber in the mining field.

Our service

1. We provide not only LED Light products, but also lighting solutions for customers, dialux
      simulation can always be made for customer's reference.
2. Sample testing welcome, customized services can be offered
3. OEM, ODM services are welcome.

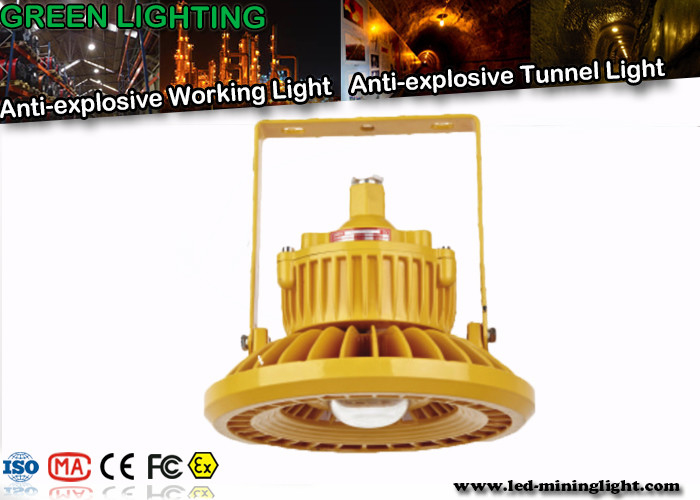

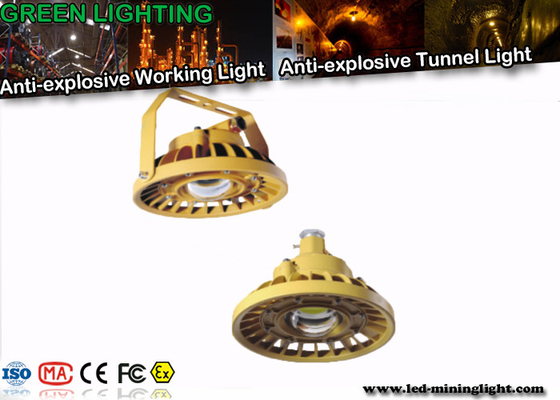

Images for this led tunnel light

IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k 0

IP67 100W LED Tunnel Light 13000 Lum Die-Casting Aluminum Case 5500 - 6000k 1

Our production

we have professional production department and advanced equipments to ensure the good
quality products.
