Name: GL12-A IP68 490g Weight 3W 25000Lux 10.4Ah Rechargeable LED Headlamp
Brand: GREEN LIGHTING TECHNOLOGY CO.,LTD
SKU: GL12-A
Availability: InStock

Home Products Rechargeable LED Headlamp

GL12-A IP68 490g Weight 3W 25000Lux 10.4Ah Rechargeable LED Headlamp

Product Details:

Place of Origin:	Shen Zhen,China
Brand Name:	Green Lighting
Certification:	CE/ATEX
Model Number:	GL12-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	packing by colorful box of unit lamp with single charger
Delivery Time:	7-10days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Lithium-ion Battery:	3.7V/10.4AH	Main Light Brightness:	25000Lx
Main Light Power:	3W	Auxiliary Light Power:	0.4W
Battery Cycles:	1200 Cycles	Charging Time:	7.5hrs
Weight:	490g	Overall Size:	779341mm
Highlight:	rechargeable led headlight , high lumen headlamp

Waterproof IP68 Atex Approved 3W 25000Lux 77*93*41mm Rechargeable LED Headlamp

1.Introduction of Rechargeable LED Headlamp

KL12LM have Four models:lighting weak- strong-auxiliary-SOS (SOS emergency lighting),
Low battery capacity warning .Support 2 A charging current.

This cap lamp has strong brightness,long lighting time,long life time,high intensity,weight 600g,
low usage cost,and high safety . It uses Special material instead of PC, ABS as tradition lamps .

2.Usage of Rechargeable LED Headlamp

Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries,
suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project ,
Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine ,
Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

3.Specification of Rechargeable LED Headlamp

Item		Value
Light source	Main LED power	3W
	illumimous flux	≥220 lum
	lighting degree	≥25000(for 1M)Lux
	lifetime	≥100,000Hour
Battery	capacity	7.8Ah
	voltage	3.7V
	charging time	≤8Hour
	lifetime	more than 1000Cycle
Charger	input voltage	AC110-240V
	output voltage	DC4.2V
	output current	1A
Continuous lighting time		≥22Hour
Lighting range		≥50M
Working temperature		-60℃
Max surface temperature		40℃
Outline dimension		779341MM
Weight (single lamp)		520G
Type of protection		CE,ATEX,EXIB II M1
Protection category		IP68

4.Features for Rechargeable LED Headlamp

a) High brightness
b) Long work time
c) Anti-explosion
d) Drop resistance
e) Complete water-proof
f) 240° activity steel clip
g) Tact switch
h) Military engineering plastic shell

5.Competitive Advantage

high lighting degree : main light is more than 25000lux in full lighting time
long working time : continuous lighting time is more than 22 hours. With 7.8Ah Li-ion battery
safety precautions : with short-circuit protection, include single charger, charging rated voltage DC4.2V
certificate :CE & ATEX

6.Aout us

GREEN LIGHTING ELECTRONICS CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.

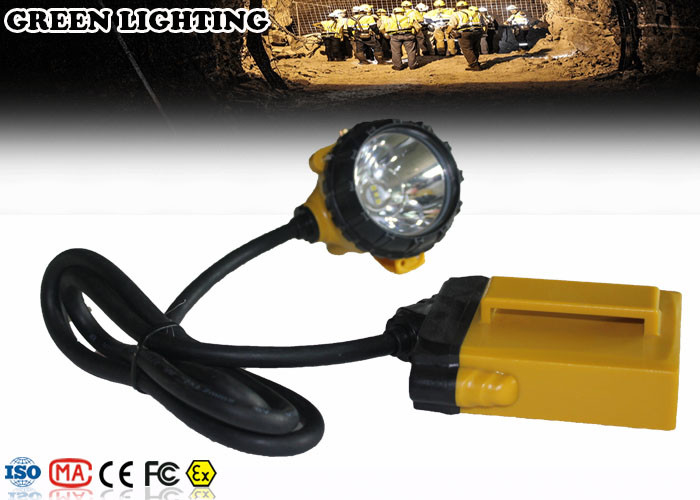

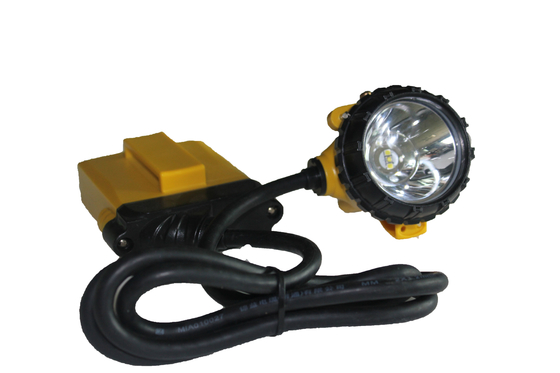

7.Product Image
