Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light

Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light

  • Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light
  • Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light
Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light
Product Details:
Place of Origin: china
Brand Name: GREEN LIGHTING
Certification: MA, CE, ISO
Model Number: GL-CRX7105
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 1usd/pc
Packaging Details: 1pc / carton, 5.5kg / carton
Delivery Time: 10-15days
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs each month
Contact Now
Detailed Product Description
Lamp Power: 36W Input Voltage: 110V - 230V 47 - 63Hz
Water-proof: IP67 Explosion-proof: Exd I Mb
Power Efficiency: More Than 90% Brightness: 4188lum
Water-proof Grade: IP67 Color Temperature: 5500 - 6000k
Weight: 5.5kg Material: Aluminum Alloy
High Light:

roof tunnel light

,

led underground light

Anti-explosive 36W 110V-230V led tunnel light for underground lighting.



This anti-explosive tunnel light is die-cast aluminium housing with spray treatment,

Housing wear resisting, anti-corrosion, dust-and water proof.

Other power 12W, 24w, 36W are all available.



Specifications for this anti-explosive led tunnel light.



Model GL-CRX7105
Power  36W
Light Source Bridgelux 36W
Brightness 4188LM
CRI >90
Color temperature 5500 - 6000K
Beam angle 120 degree
Frequency range 47 - 63Hz
Power factor >0.95
Storage temperature -40 - +80
Working enviroment -40 - +50
Working lifetime >80000hrs
Body material die-casting aluminum
Water-proof grade IP67



Characteristics of this anti-explosive led tunnel light.



1. Its reflector is specially designed for the tunnel. At the height of 3.5meters,

    24W can reach 35Lux, 48W can reach 80Lux. The light distribution distance is

    more than 15meters. It can save 65% on energy than the Metal Halide Lamp.

2. LED mining light adopts American CREE LED as light source, service life reach

   100,000 hours.

3. Equipment with world famous brand electrical appliance, has a highly stable

    performance.

4. The LED is seamless connected to the heat sink, which help to heat dissipating,

     ensured the LED'S life span.

5. Supplied with stainless chain which have hooks on the end and the chain's length

     is adjustable.

6. The anti corrosion, abrasion proof, power coated cover which is dust proof,

    water proof , make the lamp an excellent option for all kinds of high stress

    environment.



Performance description for this led tunnel light.



Housing Construction:

Low-copper content cast aluminum
Safety yellow powder coat



Light Source:

Bridgelux LED outdoor floodlight
50,000 hours average rated life
2000 lumens

120° beam angle



Compliances

Watt: 24W
IP class: IP67

Ex-mark: ExdⅡCT6



Our this led tunnel light support three kinds installations.



Derrick installation, wall fixed installation, Guardrail installation.





Application for our led tunnel light



1. Approved for safe use in the explosive environment under the coal mine where the

    methane and the explosive dust exist.

2. It is the idea lighting solution for the underground tunnel in the underground

     chamber in the mining field.



Our service



1. We provide not only LED Light products, but also lighting solutions for customers, dialux

      simulation can always be made for customer's reference.

2. Sample testing welcome, customized services can be offered

3. OEM, ODM services are welcome.



Images for this led tunnel light

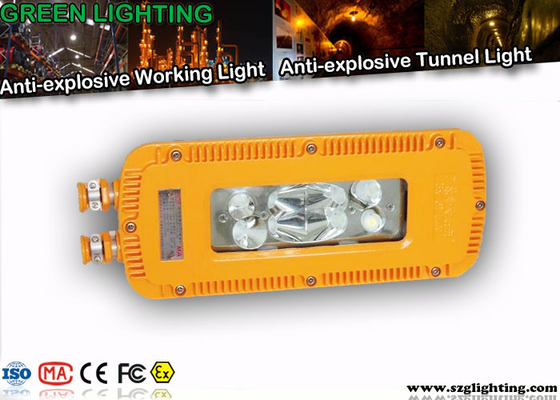

Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light 0

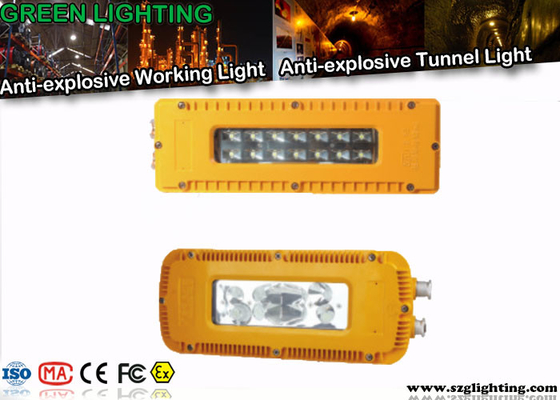

Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light 1

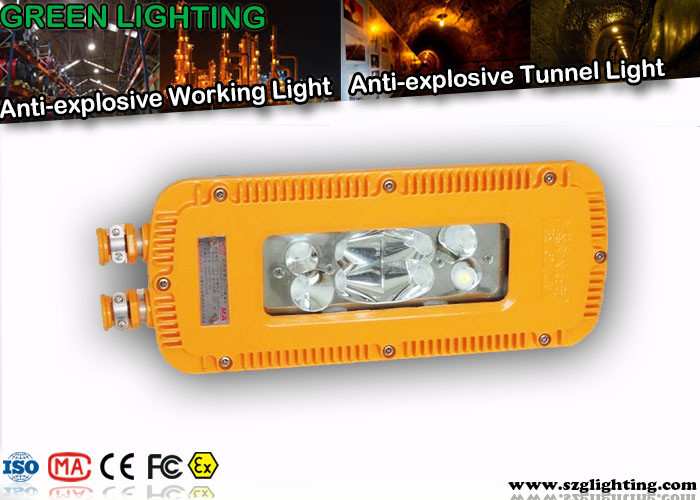

Anti Explosive Tunnel Light , 36W 110V-230V Led Underground Light 2
