|Place of Origin:||shenzhen ,China|
|Brand Name:||GREEN LIGHTING|
|Certification:||ATEX, CE., FCC.,SAA.,MSHA|
|Minimum Order Quantity:||1pcs|
|Price:||16USD/PC - 18USD/PC|
|Packaging Details:||gift box. 95mm*95mm*40mm each box, 44*44*36cm each carton, 50pcs/carton, 15.5kg/carton|
|Delivery Time:||7-15 days|
|Payment Terms:||Western Union, MoneyGram, T/T, L/C|
|Material:||Germany Bayer PC||Light Source:||1pc Main Light And 6 Pcs Auxiliary Lights|
|Battery Capacity:||2.8Ah||Rated Voltage:||3.7V|
|Main Light Current:||230mA||Power:||0.85W|
|Illuminous:||110lum||Brightness Of Main Light:||6000 Lux|
|Weight:||158g||Water Proof Grade:||IP67|
miners cap lamp,
led mining headlamp
1. Characters for Cordless Mining Lights
High power LED light source, extra long lifetime (50000 hours);
Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating;
Water proof, current shock proof, moisture proof and impact proof;
Wateproof grade : IP68
Anti-explosive grade : Ex ia
High Quality Material : Germany Bayer PC
Portable Light Weight : 158g , similar to the weight as a cell phone, more portable.
Multi-function lighting modes : main light - auxiliary light
|Light source||1pc main light and 6pcs auxiliary lights|
|Main light current||230mA|
|Power of the main light||0.85W|
|Brightness of the main light||6000lux|
|Life span for main LED||100000hours|
|Battery cycles||1000 cycles|
|Working time||13 hours|
|Certified||CE,ATEX,EXIB II M1|

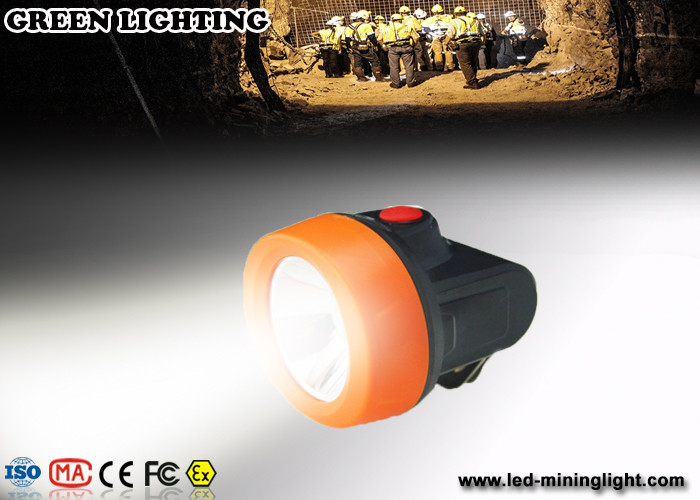

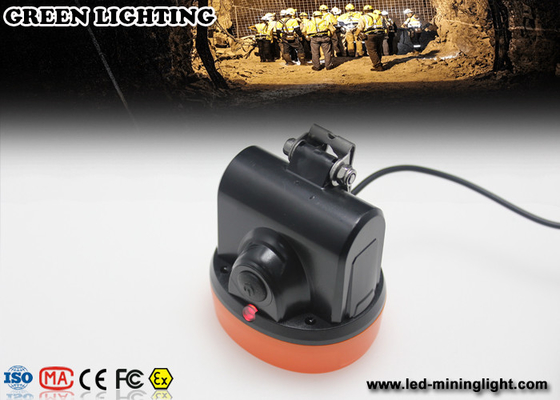

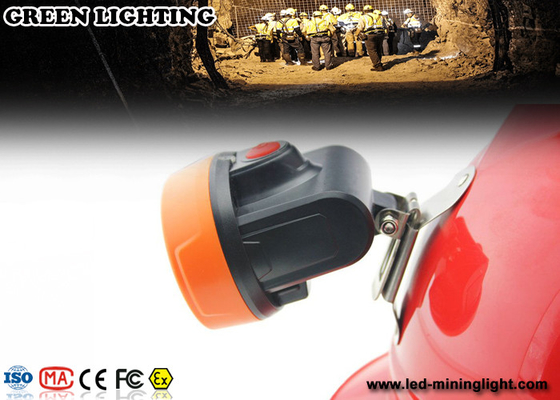

3. Products parts pictures
Instructions for use
1) In the first time using lamps, pls use our special charger or accorded charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it means that charger have finished charging.
2) Our KL2.5-C cordless cap lamp has one main light and six auxiliary lights. It has two lighting modes.
When you press the button firstly, the main light is on , press secondly, the lamp is off, press thirdly,
the auxiliary lights is on, press fourthly, the lamp is off. KL2.5-C cordless cap lamp just has one main
light, and has one strong brightness lighting.
4. Our products can be widely used for :
5. Product Advantages:
Safety : Over-charging protection , over-discharging protection, protection in electrical short-circuit,
automatic power-off on the socket , 100,000 hours LED’s Lifetime
Portability : All-in-one structure, Small in size , light in weight (only 158g for whole product),
inductive charging, easy usage
Efficiency : more than 15hours at full brightness, over 80hours at back up led brightness.Over 6000lux
Environmental : Li-ion battery is free for maintenance, and the material of li-ion is environmental, use
1Watt high power LED as the main light, and 6pcs backup LED’s to save power
Economy : three times longer than lead and acid cap lamp and saving in maintenance makes the product
more compatible in price
Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous discharging time: more than 15hours at full brightness, over 80hours at back up led brightness.
Type of protection : IMI EXia IICT6 (Zone 1 and 2)
Protection category : IP68
Q: What daes IP mean?
A: IP (Ingress Protection) classifies the degrees of protection provided against the intrusion of the bulb. Thr first cliper indicates the bulbs resistance to solid intruders (like dust), and the second cipher indicated the bulbs resistance to water.
Q: What is the distinguishing feature of explosion-proof?
A: Meet GB3836-2000 "explosive gas environment use electrical equipment" stand.
Q: What is the advantage of environmental protection?
A: The LED solid state light source, no lead and mercury, no radiation pollution and recyclable.
Q: What is emergencyj device?
A: Optional configuration, integration design, safety, long life span, can be removed from the DC power supply system.
Q: What is Lux:
A: LUX is a measurement of, how much luminous flux is spread over a given area.
Q: What is Lumen?
A: Lumen (Lm) is a measure of the total amount power of the light that is emitted at a1 meter radius at a 360 degree angle from a light source.
Q: How long is 50,000 hours?
A: There are 8,760 hours in a year, so this is what 50,000 hours works out to be, depending on hours of operation.
Bulb is on 24 hours per day 5.7 years /Bulb is on 18 hours per day 7.6 years
Bulb is on 12 hours per day 11.4 years /Bulb is on 8 hours per day 17.1 years
