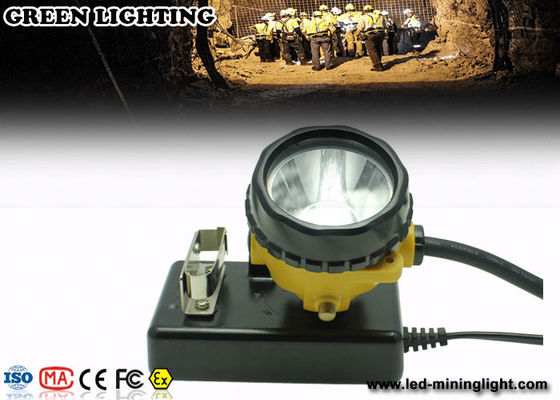

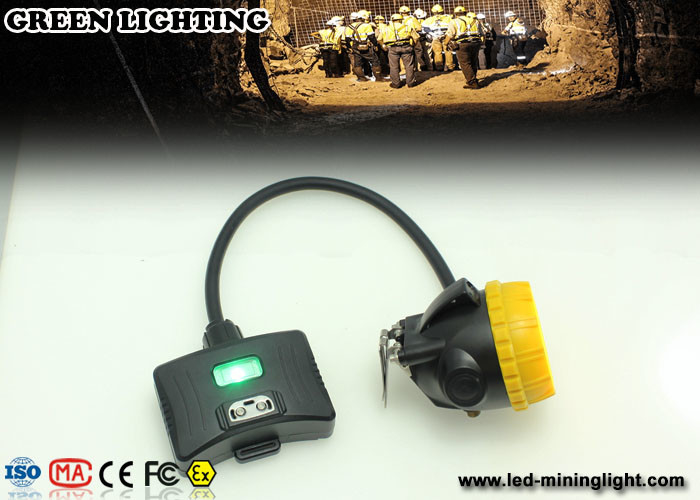

ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light

ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light

  • ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light
  • ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light
  • ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light
  • ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light
ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light
Product Details:
Place of Origin: Shen Zhen City, China
Brand Name: Green Lighting
Certification: CE/ATEX/EXIBII
Model Number: GS12-A5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: packing by colorful box of unit lamp with single charger
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Main Light: 1.6w CREE LED Auxiliary Light: 2pcs SMD LED
Main LED Current: 450mA Brightness: >15000lux
Illluminous: 208lum Weight: 396g
Waterproof: IP68 Waterproof Cable Length: 0.38 M
Life Span: 10000h Working Time: 16h
Battery Type: Rechargeable Li - Ion Battery Battery Capacity: 6.8Ah
High Light:

rechargeable led headlight


high lumen headlamp

The Strong Brightness Semi - Corded Underground Mining Lights With Warning Lights

1. Features for underground mining lights

1.1 Features.

Creatively designed S series Li-ion underground mining lights GS12-A5 is a kind of portable lighting equipment, which applies the technologies of the latest CREE LED lighting source and large capacity Li-ion battery . The innovate design enable it to withstand the harshest underground conditions, like coal-mines, etc. The significant features are as follow:

Stable and super bright

S series underground mining lights main light applies the world advanced LED light source and advance driver circuit making the miner lamp maintain a stable high brightness. There are three versions for your option: the standard version (working time is more than 13H ), the longtime version (working time is more than 16H),the super long version (working time is more than 24h).

Throughout the whole working process of the cap lamp . it can always keep the same high brightness . Since the delicately designed reflector and ultra-clear glass help reduce the light absorption greatly improve the brightness.

1.2 Small, light and portable

The underground mining lights globe is very small as the LED source is much smaller in size

and produces less heat which requires a smaller radiator. In spite of small size , our radiator is of high efficiency for its goods design. Moreover , the Li -ion battery is only 1/3 the weight of the traditional lead acid battery , which makes these corded lamps smaller, lighter, more portable .

1.3 Safe, reliable and maintenance -free

The Li-ion battery is maintenance-free , Moreover , the battery pack PCB can protect the battery from over charge, over discharge , over current , and short circuit so that the battery won’t explode or burn. Therefore, the safety and reliability of GS5 , GS12 are highly well guaranteed.

1.4 Two charging ways

For the S series cap lamps, we designed and produced magnetic USB charging wire, which makes it possible to charge the LED cap lamps with the charging supply of the general mobile phones.

Moreover, they are compatible with the matched single chargers and charging racks.

It is a revolutionary breakthrough for the charging of cap lamps.

1.5 Advanced technology of preventing isolation circuit in the charging contacts

In view of the compatibility of traditional and USB charging way. In order to make sure that there is no voltage difference and there is no current when they touch each other among the three charging contacts, we design the preventing isolation circuit, which ensure the safety and reliability during use of the miner cap lamps.

1.6 Explosion-proof and super impact-resistance

The housing is made of bulletproof PC of German Bayer brand. The optimized mold design not only strengthens the hardness of the housing but also lessens the internal stress, which makes the corded lamps stronger in impacting resistance and more durable in life span.

1.7 Super waterproof

The corded cap lamps are super waterproof which makes it pass the IP68 approval. Since it is with well -designed with waterproof head lamp globe , battery box, button switch and stainless steel metal parts, which enable it to work normally under harsh working conditions.

1.8 Environmentally -friendly

The corded cap lamps are designed in accordance with RoHS, which is followed strictly during

the whole process, from material selection to production craft design.

1.9 Longer life span

The corded cap lamp can work more than 13hours after fully charged. Its main light source has a life span of more than 100000h. Li-ion battery can be charged more than 1200 cycles if the lamp works in reasonable conditions.Therefore , there is no need to replace the light source and battery during its whole life span.


2.​Technical Specifications:

Light source 1pcs main light and 2pcs auxiliary lights
Battery 3.7V/6.4Ah
Main light current 450mA
Illuminous 208LUM
Power of the main light 1.6W
Battery cycles 1200 cycles
Brightness of the main ligh 15000lux
Battery cycles 1200 cycles
Life span for main LED 100000hours
Working time 15hours
Weight 396g
Water-proof grade IP68


ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light 0


3. Switch of miners helmet lamp

The electric switch is waterproof, it works as follows:

The first press makes the auxiliary lights on

The second press makes the main light on

The third press makes the light off

 Battery indication

When the cap lamp is off, press its switch more than 2 seconds. Then the soft light of the main and auxiliary light source will indicate the remaining battery .The indication information is as following:

The indication lasts for 6 seconds; the cap lamp restores to be off.

Note: The cap lamp battery indication is just a general , just for your reference.



4.1.1 Traditional charging way

Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.

Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.

Rotate the head lamp 180 degree clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode).Then the indicator light turns red, which means the lamp is being charged.

When it’s charged by NWB-25A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%. The cap lamp can work more than 13h continuously if charging is stopped at this moment. If the indicator light of the charger flashes green only, then the battery has been fully charged.

Rotate the head lamp 180 degrees anti-clockwise; take it away from the charger.

4.1.2 USB charging way

Connect the “5V,2A” power supply with magnetic USB wire to “AC,100-240V”outlet.

Note: All kinds of USB standard charging interface equipment can be used as a miners cap lamp charger.

Connect the magnetic charging terminal with the USB charging points , make them contact tightly. The cap lamp’s indicator turns red, which means it’s charging.

The cap lamp’s indicator turn green, which means it finishes charging. Take away the USB wire from the cap lamp, and then use the cap lamp.

5.Accept Customized as client's requirements:
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour. Recently, customized the semi-corded, corded, cordless with Tracking position and Infrared receiver
Electronic Circuit
Rich Experience Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.
Write the request to cap lamps, such as clients company name, LOGO, serie No and user name.

Structural Design

Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof, Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products. MD team will field visit and according the use condition to design the waterproof.
Optical Design
According to LED Luminous Flux, Light cup curve and current to design the Light Beam
How to get samples:
If you want to get samples for testing or promotion, we will charge the samples cost and freight fee,but when you place the bulk order, we will return the samples cost to you.and the sample delivery time is about one week.

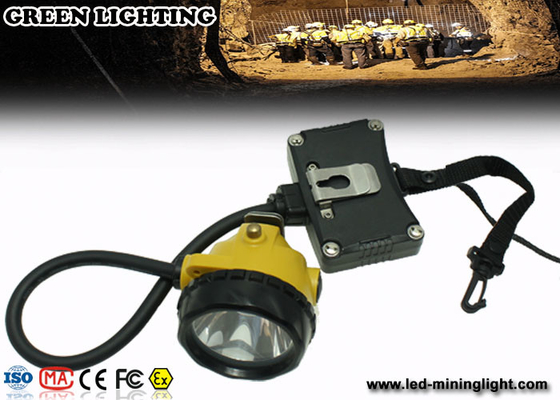

6.Product Image of miners helmet lamp

ABS IP68 Rechargeable LED Headlamp Underground Mining Lights With Warning Light 1

3 levels lighting model: 1.working lighting 2.Brightness lighting 3.SOS!
