28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp

28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp

  • 28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp
  • 28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp
  • 28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp
  • 28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp
28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp
Product Details:
Place of Origin: shen zhen City, China
Brand Name: Green Lighting
Certification: CE/ATEX/EXIBII
Model Number: GS12-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: packing by colorful box of unit lamp with single charger
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Type: Mining Cap Lights Material: Germany Bayer PC
Main LED: 3W Illuminous: 348lum
Brightness: 28000lux Weight: 396g
Charging Time: <6 H Water Proof: IP68
Life Span Of Main Light: 100000 H Working Time: >16h
High Light:

cordless cap lamp

,

miners helmet light

28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp

1.Features for mining cap lights

LED Light Source:Cree
Usage:Industrial
Power Source:Rechargeable Battery
Lighting Period (h):>12
Battery Type:Lithium Ion
Certification:UL,EMC,CCC,CE,RoHS,LVD,FCC
IP Rating:IP68
Lamp Body Material:PC
Base Type:PAR36
Warranty(Year):1
Lamp Power(W):3
Material:Germany Bayer PC
super waterproof:IP68
Light source:LED
charging way: conventional charging way
working time:more than 13h
battey typy:rechargeable li-ion battery
Item Type:Explosion-proof Lights
Lamp Luminous Flux(lm):348
Color Temperature(CCT):Warm White


2.Specification of miners head lamp

Item Value
Model GS12-C
Light source 1pc 1.6W Cree led and 2pcs SMD leds
Battery capacity 6.8Ah
Rated Voltage 3.7V
Main light current 450mA
Power of the main light 3W
Illuminous 348LUM
Brightness of the main light 28000lux
Life span for main LED 10000hours
Battery cycles 1000 cycles
Working time 16hours
Weight 396g
Water-proof grade IP68
Certified CE,ATEX,EXIB II M1

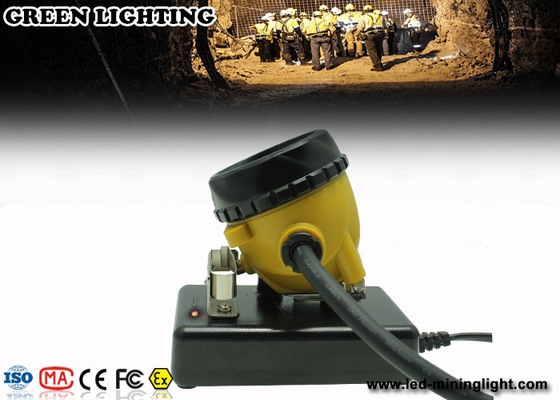

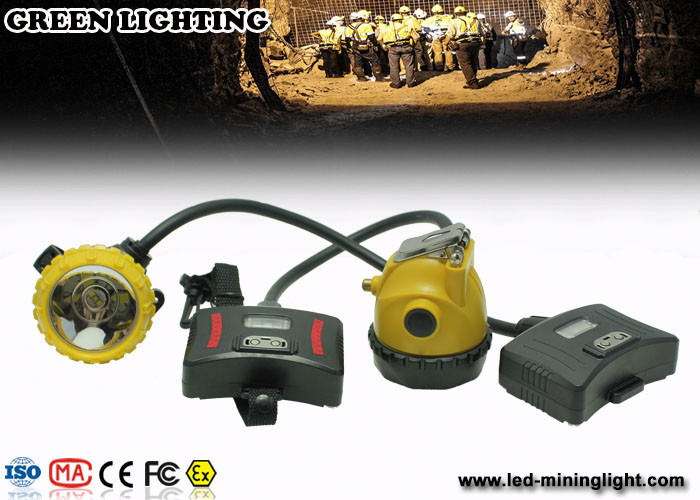

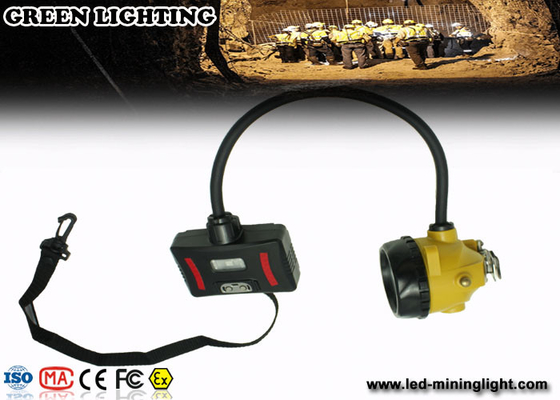

3.Mining Safety cap lamp Product Image
28000 Lux Explosion Proof mining cap lights, Germany Bayer PC miners head lamp 0

  • The LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp.
  • In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
  • To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.

4.Troubles and troubleshootings


Trouble description Trouble analysis Troubleshooting

Light is not on when pressing
the button

Battery power is used up or
Automatic opening protection

Charge the lamp

Working time is less than
12 hours

Battery is not fully charged

Make sure the lamp well
connected to the charger
when charging

Longer charging time The charging points poor contact

Clean the charging points
and the slot

Low illuminance Dirty lens Clean water wash lens

 Usage:canoeing;camping;fishing;exploring caves and walk at night etc.


5. Safety warning

a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.


b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety,     reliability to work underground.
c) Please do not charge the lamp underground.


d) Please keep the lamp away from fire sources.
