28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp

28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp

  • 28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp
  • 28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp
  • 28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp
  • 28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp
28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp
Product Details:
Place of Origin: shen zhen City, China
Brand Name: Green Lighting
Certification: CE/ATEX/EXIBII
Model Number: GS12-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: packing by colorful box of unit lamp with single charger
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Battery Capacity: 6.8Ah Battery Votage: 3.7V
Working Time: >20h LED Lifetime: >5000h
Main LED: 3W Illuminous: 348lum
Brightness: 28000lux Weight: 396g
Charging Time: <6 H Water Proof: IP68
Life Span Of Main Light: 100000 H Working Time: >16h
High Light:

coal miners lamp

,

miners helmet light

28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp

1.Features for Mining Safety cap lamp

1). Explosion-proof, water-proof, protection in electrical short circuit,automatic power- off on the socket, 100,000 hours led lifetime.
2). Light weight, portable,high quality, strong brightness, long life time.
3). More than 16 hours working time, more than 1000 cycles lifetime of the battery.

4).Brightness is up to 28000lux ! Weight is light for portable use.

5). All our lamps has one year warranty. We will keep free maintenance for you in one year.


2.Specification of Mining Safety cap lamp

Item Value
Model GS12-C
Light source 1pc 1.6W Cree led and 2pcs SMD leds
Battery capacity 6.8Ah
Rated Voltage 3.7V
Main light current 450mA
Power of the main light 3W
Illuminous 348LUM
Brightness of the main light 28000lux
Life span for main LED 10000hours
Battery cycles 1000 cycles
Working time 16hours
Weight 396g
Water-proof grade IP68
Certified CE,ATEX,EXIB II M1




3.Mining Safety cap lamp Product Image

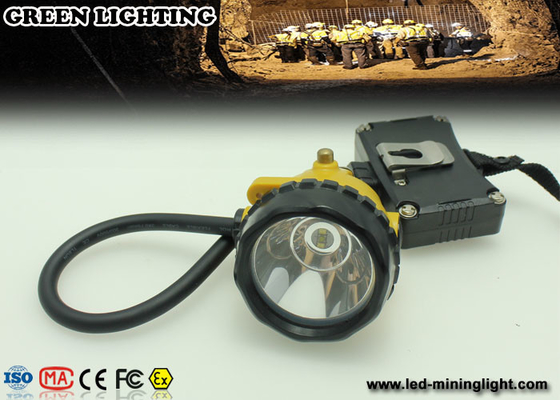

28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp 0

  • The LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp.

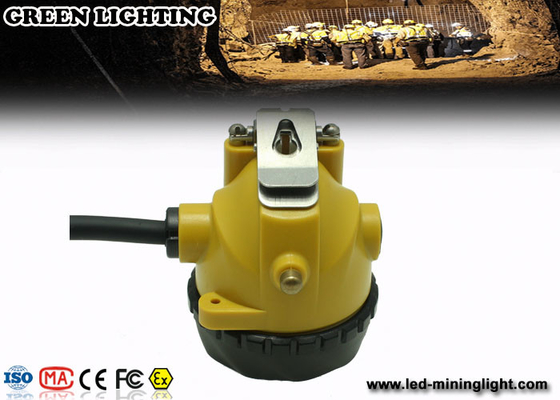

 28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp 1



  • In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
  • To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.

4.Troubles and troubleshootings


Trouble description Trouble analysis Troubleshooting

Light is not on when pressing
the button

Battery power is used up or
Automatic opening protection

Charge the lamp

Working time is less than
12 hours

Battery is not fully charged

Make sure the lamp well
connected to the charger
when charging

Longer charging time The charging points poor contact

Clean the charging points
and the slot

Low illuminance Dirty lens Clean water wash lens


5. Safety warning

a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.


b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety,     reliability to work underground.
c) Please do not charge the lamp underground.

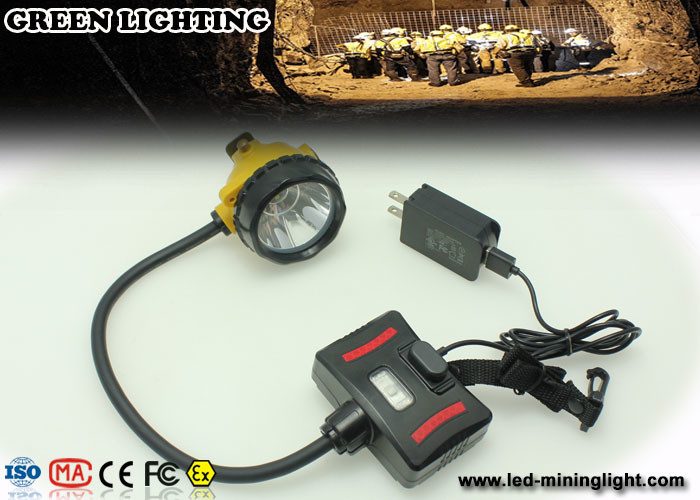

28000 Lux Explosion Proof LED Mining Headlamp , IP68 Waterproof miner Cap Lamp 2
d) Please keep the lamp away from fire sources.


6.About us

GREEN LIGHTING ELECTRONICS CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.
