28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box

28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box

  • 28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box
  • 28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box
  • 28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box
  • 28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box
28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box
Product Details:
Place of Origin: shen zhen City, China
Brand Name: Green Lighting
Certification: CE/ATEX/EXIBII
Model Number: GS12-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: packing by colorful box of unit lamp with single charger
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Name: Mining Cap Lights Function: Explosion Proof
Battery Box: With Warning Light Battery Box LED Lifetime: >5000h
Main LED: 3W Illuminous: 348lum
Brightness: 28000lux Weight: 396g
Charging Time: <6 H Water Proof: IP68 Waterproof
Life Span Of Main Light: 100000 H Working Time: >16h
High Light:

led mining cap lights

,

mining hard hat light


28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box


1.Features for Mining Cap Lights
1).  1pc Cree led and 2pcs SMD leds : main led is 3w , accessory led is 1w.
2). Light weight, portable,high quality, 100,000 hours led lifetime..
3). More than 16 hours working time, more than 1000 cycles lifetime of the battery.

4).Brightness is up to 28000lux ! Weight is light less than 400g .
5). We will keep free maintenance for you in one year.
6).Explosion-proof, water-proof, protection in electrical short circuit,automatic power- off on the socket,
2.Specification of Mining Cap Lights

ItemValue
ModelGS12-A
Light source1pc Cree led and 2pcs SMD leds
Battery capacity6.8Ah
Rated Voltage3.7V
Main light current450mA
Power of the main light3W
Illuminous348LUM
Brightness of the main light28000lux
Life span for main LED10000hours
Battery cycles1000 cycles
Working time16hours
Weight396g
Water-proof gradeIP68
Battery Box Functionwith Warning Light Battery Box

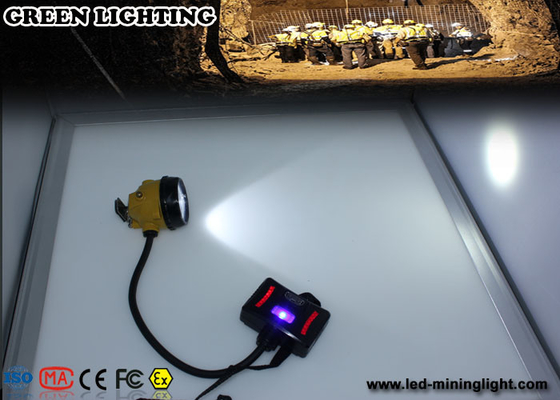

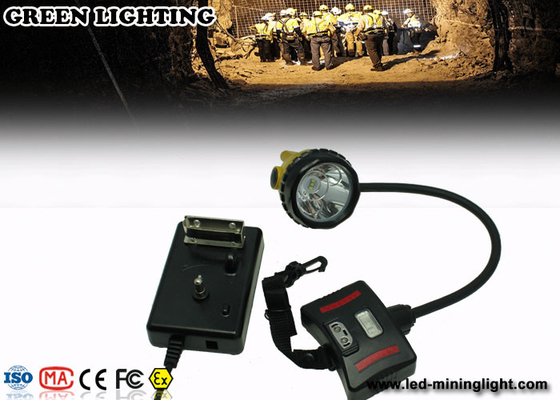

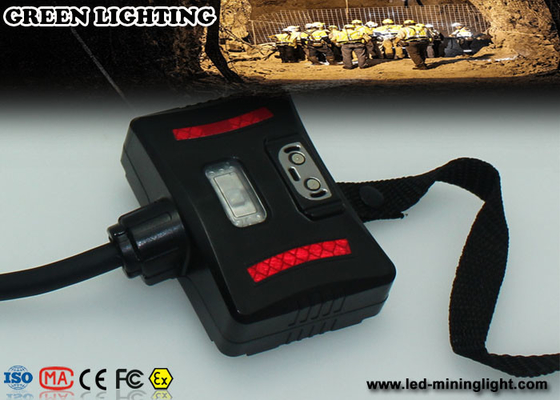

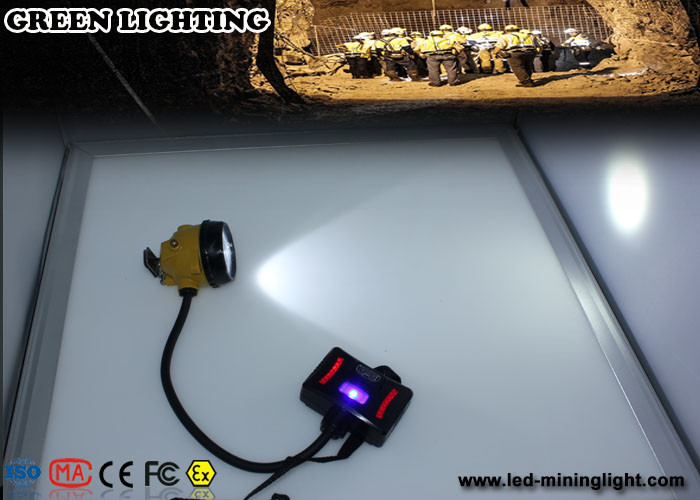

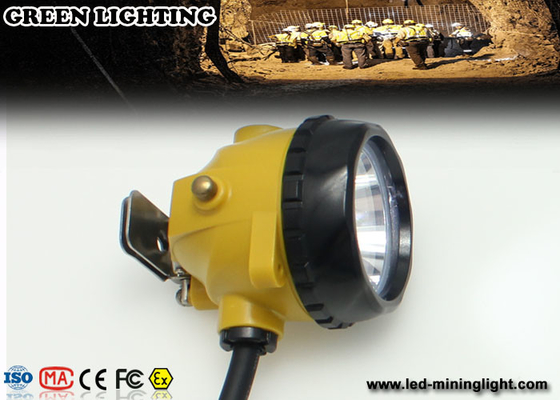

3. Mining Cap Lights Product Image
28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box 0

  • The LED cap lamp with four lighting modes.

 step one : to press the button the first time and release and then the main light for working light on.
 step two : to press the button the second time and release and then the main light for strong light on.
 step three : to press the button the third time and release and then the auxiliary light on.
 step four : to press the button the fourth time and release and then the lamp turns off.
 step five : to press the button the 3 seconds contineously, the lamp transfers toSOS lighting .

  • In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
  • To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.

4. Mining Cap Lights Troubles and troubleshootings


Trouble descriptionTrouble analysisTroubleshooting

Light is not on when pressing
the button

Battery power is used up or
Automatic opening protection

Charge the lamp

Working time is less than
12 hours

Battery is not fully charged

Make sure the lamp well
connected to the charger
when charging

Longer charging timeThe charging points poor contact

Clean the charging points
and the slot

Low illuminanceDirty lensClean water wash lens


5.  Mining Cap Lights Safety warning
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety,     reliability to work underground.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.

6.About us

GREEN LIGHTING ELECTRONICS CO.,LTD is an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen City area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.

28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box 1
