GREEN LIGHTING TECHNOLOGY CO.,LTD
Sales & Support:
 |
| Place of Origin: | china |
| Brand Name: | GREEN LIGHTING |
| Certification: | MA, CE, ISO, ATEX |
| Model Number: | GL-CRD8102-C |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1usd/pc |
| Packaging Details: | 1pc / carton, 9.8kg / carton |
| Delivery Time: | 10-15days |
| Payment Terms: | D/P, D/A, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs each month |
| Lamp Power: | 150W | Input Voltage: | 110V - 230V 47 - 63Hz |
|---|---|---|---|
| Water-proof: | IP67 | Explosion-proof: | Exd II CT6GB |
| Power Efficiency: | More Than 90% | Brightness: | 18000lum |
| Water-proof Grade: | IP67 | Color Temperature: | 5500 - 6000k |
| Weight: | 9.8kg | Material: | Die-casting Aluminum |
| Cooling System: | Cooper Cooling System | ||
| Highlight: | roof tunnel light,led underground light |
||

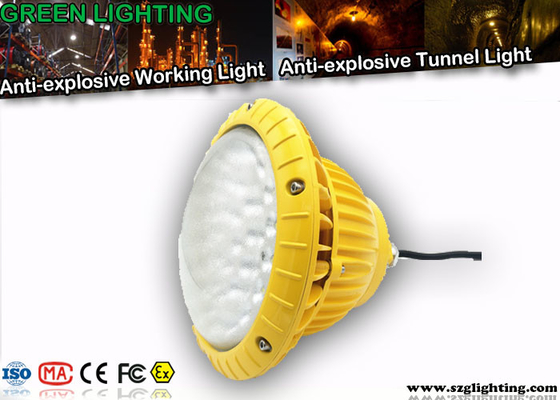

150W high power 18000lum strong brightness led tunnel light with cooper cooling system.
This anti-explosive tunnel light is die-cast aluminium housing with spray treatment,
Housing wear resisting, anti-corrosion, dust-and water proof.
Other power 20W, 30w, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W, 120W,
130W, 140W are all available.
Specifications for this anti-explosive led tunnel light.
| Model | GL-CRD8102-C | ||
| Power | 130W | 140W | 150W |
| Light Source | Bridgelux 1300W | Bridgelux 140W | Bridgelux 150W |
| Brightness | 15600LM | 16800LM | 18000LM |
| CRI | >90 | >90 | >90 |
| Color temperature | 5500 - 6000K | 5500 - 6000K | 5500 - 6000K |
| Beam angle | 120 degree | 120 degree | 120 degree |
| Frequency range | 47 - 63Hz | 47 - 63Hz | 47 - 63Hz |
| Power factor | >0.95 | >0.95 | >0.95 |
| Storage temperature | -40 - +80 | -40 - +80 | -40 - +80 |
| Working enviroment | -40 - +50 | -40 - +50 | -40 - +50 |
| Working lifetime | >80000hrs | >80000hrs | >80000hrs |
| Body material | die-casting aluminum | die-casting aluminum | die-casting aluminum |
| Water-proof grade | IP67 | IP67 | IP67 |
Features of this anti-explosive led tunnel light.
1. New high efficiency constant current drive.
2. Wide range of input voltage.
3. Work perfectly in the high humidity environments.
4. No delay start, no glare, no humming.
5. Long life, energy savings.
6. No Toxic Mercury, lead, no air pollution.
7. Eliminates maintenance and reduces costs.
8. Well designed High power led module
9.>120lm/W
10.meanwell drver
11.MA, CE, ATEX certified.
Three differrent kinds installations for option.
Derrick installation, wall fixed installation, Guardrail installation.
Application for our led tunnel light
1. Approved for safe use in the explosive environment under the coal mine where the
methane and the explosive dust exist.
2. It is the idea lighting solution for the underground tunnel in the underground
chamber in the mining field.
Why choose us?
About us
Our mission:To lead a new era.
Our vision:To create a world famous brand, to disseminate the Chinese culture.
Our slogan:To grow together! To achieve success together!
Our target: 11 years of Professional manufacturing of LED anti-explosive lighting fixtures,
focus on quality and brand in order to be the NO 1.
Advantage
1) Super brightness: our brigtness can reach 50lux on 4 meters hight.
2) Super long life span: main light life span is 80000hours
3) Super long warranty: 3 years warranty.
Warranty and after-sales service
1) Warranty: 3 years.
2) After sales service: will deal with your complaint at first time, give you solution within 5 working days
3) Free samples: free samples will be provided when our new models come out
4) Market support: we can support you to do advertisment in local magazine and provide samples
with big discount for exhibition
R & D
1) We have built a team of 5 ID and Structure engineer for new type design, and 5 electrical
engineer for new technology innovation.
2) Every year we invest 10% annual turnover in our R&D
Contacts for GREEN LIGHTING
GREEN LIGHTING ELECTRONICS CO.,LTD
No2 Bldg, Da Pu Industrial, Long Dong Community, Long Gang District, Shen Zhen City, China.
Tel : +86-755-84829400
Fax : +86-755-84820206
Cell : +86-13510629333
Skype : szglighting
Whatsapp : 008613510629333
Website : www.led-mininglight.com
Images this led tunnel light
