10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery

10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery

    • 10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery
    • 10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery
  • 10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery

    Product Details:

    Place of Origin: Shenzhen City, China
    Brand Name: Green Lighting
    Certification: CE, ATEX, FCC
    Model Number: GL12-A

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiate
    Price: Negotiate
    Packaging Details: One set each box with 1pc head lamp, 1pc charger and Manual Accept customized packing
    Delivery Time: sample order within 1-3 working days, bulk order within 15-20 working days
    Payment Terms: 100% T/T or Western Union Payment Before Delivery The Goods.
    Supply Ability: 10000 piece in one month
    Contact Now
    Detailed Product Description
    Type: Corded Headlamp Brightness Of Main Light: 25000Lux
    Brightness Of Middle Light: 18000Lux Main Light Current: 1000mA
    Power Of The Main Light: 3W Illuminous(strong Light): 348LUM
    Battery Cycles: 1200 Cycles Cable Length: 1.2m 0r 1.6m

    10400mAH Rechargeable Li - ion Battery Safety Corded Coal Mining Lights with 25000Lux

    Features: innovated design , high safety, 25000 strong brightness,
    1. LED : 3W super brightness LED
    2. Battery : safety rechargeable lithium ion battery with 10.4Ah or 12Ah
    3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life
    4. Lighting time : more than 20 working hours.
    5. Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,2A.


    NoItemUnitData
    1Rated capacityAh10.4
    2Nominal voltageV3.7
    3Lighting timeh≥16
    4LEDlight source Rated voltageV4.2
    Main light source/powermA1000
    Auxiliary light sourcemA600
    5Max illuminance at 1mBegin lighting(1meter)Lx25000
    Lighting 11hLx18000
    6Weight g560
    7Nos of battery cycle times≥1200
    8Carton packing roll/CNT36
    9Packing size cm54*38*44


    Spare Parts Clarify:


    ItemPart NumberDescription
    1GL-SP-001Bezel Ring
    2GL-SP-002Glass & Gasket
    3GL-SP-003LED, Reflector and PCB
    4GL-SP-004Housing
    5GL-SP-005Steel clip & Screws
    6GL-SP-00610.4Ah Li-ion Battery Pack
    7GL-SP-007Battery case complete
    8GL-SP-008Cable
    9GL-SP-009Security Tool


    1. Charger:

    It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.

    2. LED:

    It adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 3000 lux/60lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)

    3. Battery (Lithium ion):

    It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery.

    Usage:
    It is suitable for coal mine, mineral industry,tunnel projects,construction and maintenance for power,communication,highway,railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.

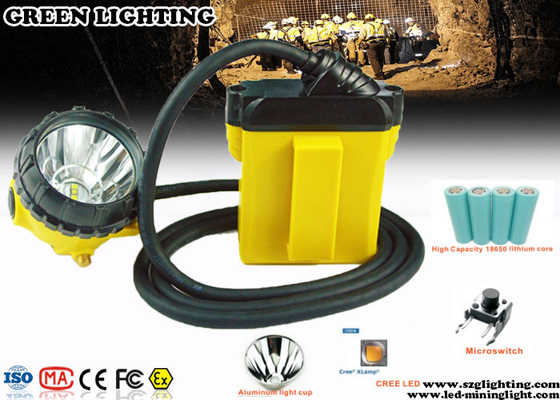

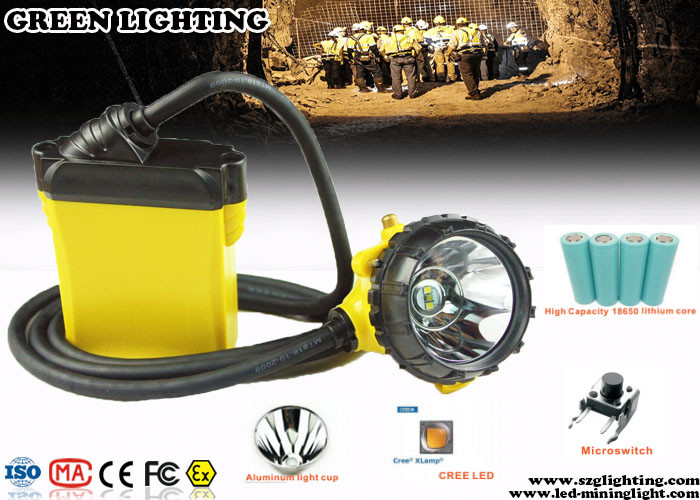

    Product Pictures:

    10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery
    10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery
    10400mAH Coal Mining Lights Corded Style Rechargeable Li - Ion Battery
