1850g Red Valve Lock Out Ce Certificated Power-Coated Steel Material

1850g Red Valve Lock Out Ce Certificated Power-Coated Steel Material

    • 1850g Red Valve Lock Out Ce Certificated  Power-Coated Steel Material
    • 1850g Red Valve Lock Out Ce Certificated  Power-Coated Steel Material
  • 1850g Red Valve Lock Out Ce Certificated  Power-Coated Steel Material

    Product Details:

    Place of Origin: Shenzhen china
    Brand Name: Green Lighting
    Certification: CE, OSHA
    Model Number: ZC-F03

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiate
    Price: Negotiate
    Packaging Details: 10pcs in a neutral box
    Delivery Time: sample order at once, bulk order within 15-20 working days
    Payment Terms: T/T or Western Union in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment
    Supply Ability: 50000/Week
    Contact Now
    Detailed Product Description
    Item: Valve Lockout Material: Steel
    Color: Red Or OEM Color Feature: Easy To Use,One Piece Design
    Usage: In The Off Position Hole Diameter: Accept 3/8′′ Padlock Shackle
    Unit Weight: 1850g Specification: For Use On Ball Valve Sizes 0.25′′-1′′

    Ce Certificated Steel Material Red Safety Standard Ball Valve Lock Out



    Features:



    ZC-F03 standard ball valve lockout

    1. easy to use,single-piece design makes our standard ball valve lockouts the perfect tool for securing your handles in the off position

    2. hole diameter accept 3/8'' padlock shackles..



    Specification:



    Item no. DESCRIPTION
    ZC-F03 For use on ball valve sizes 0.25''-1''
    ZC-F04 For use on ball valve sizes 1.25'' to 3''



    Product Details:



    1. Made from power-coated steel
    2. Sing-piece design locks quater-turn ball valves in OFF position,very compact and lightweight solution.
    3. Applied size:two sizes fit most valves up to 76.2mm.



    Lockout &Tagout Devices Valve Lockout:



    Valve Lockouts are a simple, low cost and effective way to prevent unauthorised operation of valves. It enables different types and sizes of valves to be locked out. No other device offers such fleibility and security. All sizes and colors are available. Custom valve lockout can be made upon request.



    Related Valve Lock Out:



    ZC-F01 Small lockout locks out pipes from 13mm to 64mm in diameter
    ZC-F02 Large lockout locks out pipes from 50mm to 200mm in diameter
    ZC-F03 Small lockout suitable for 1/4'' to 1'' pipes in diameter
    ZC-F04 Large lockout locks out pipes from 1 1/2'' to 3'' in diameter
    ZC-F05 Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes
    ZC-F06 Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes
    ZC-F07 Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes
    ZC-F11 Lockout suitable for 1" --- 2 1/2" valve rod
    ZC-F12 Lockout suitable for 2 1/2" ---5" valve rod
    ZC-F13 Lockout suitable for 5" --6 1/2" valve rod
    ZC-F14 Lockout suitable for 6 1/2"---10" valve rod
    ZC-F15 Lockout suitable for 10" --13" valve rod
    ZC-F16 Lockout suitable for 1" --- 6 1/2" valve rod
    ZC-F21 Lockout suitable for 8mm-45mm valve rod
    ZC-F31 For quarter-turn ball valves
    ZC-F32 For 3.4 or 5-way valves
    ZC-F33 Using cable attachment for gate valves
    ZC-F34 For butterfly valves
    ZC-F35 Universal valve lockout for most valves
    ZC-F41 Lockout suitable for valve diameter under 22mm.
    ZC-F42 Lockout suitable for valve diameter from 23mm to 34.9mm.
    ZC-F43 Lockout suitable for valve diameter from 44mm to 53.9mm.
    ZC-F14 Lockout suitable for valve diameter from 55mm to 63.5mm.



    Usage:



    1. Perform daily maintenance on the equipment, maintenance, adjustment, cleaning, checking and debugging
    2. Operation under high pressure
    3. The operation that needs to temporaily turn off the security system
    4. Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house, Tunnel Project, Mountain-climbing,Hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine, Military, Police, Fire Fighting, Dockyard and other hazardous.



    Product Picture:

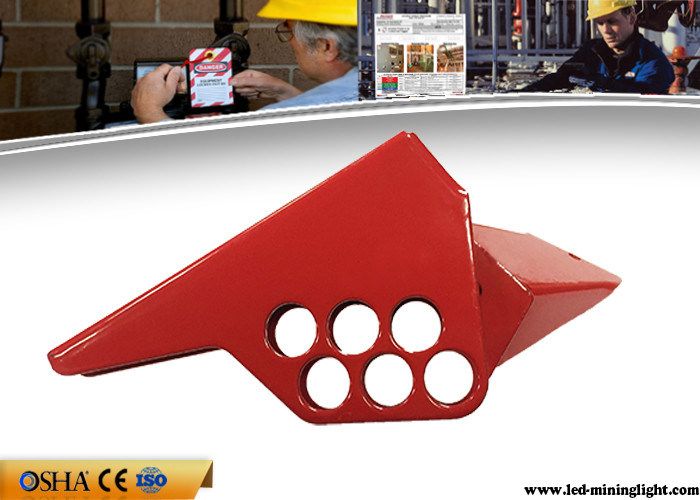

    1850g Red Valve Lock Out Ce Certificated  Power-Coated Steel Material

    1850g Red Valve Lock Out Ce Certificated  Power-Coated Steel Material
