|Place of Origin:||Shenzhen city, Guang dong province|
|Brand Name:||Green Lighting|
|Minimum Order Quantity:||100 Pieces|
|Packaging Details:||1 lamp , single charger , specification in one colourful box|
|Delivery Time:||15 to 20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||2000pcs in one month|
|Material:||Fire - Proof PC Material||Battery Capacity:||10.4Ah Li-ion Battery|
|Colour:||Yellow And Black , OEM||Brightness Of The Main Light:||25000 Lux|
|Lighting Levels:||Strong , Middle , Auxiliary , SOS||Customized Lamp:||Yes, Available|

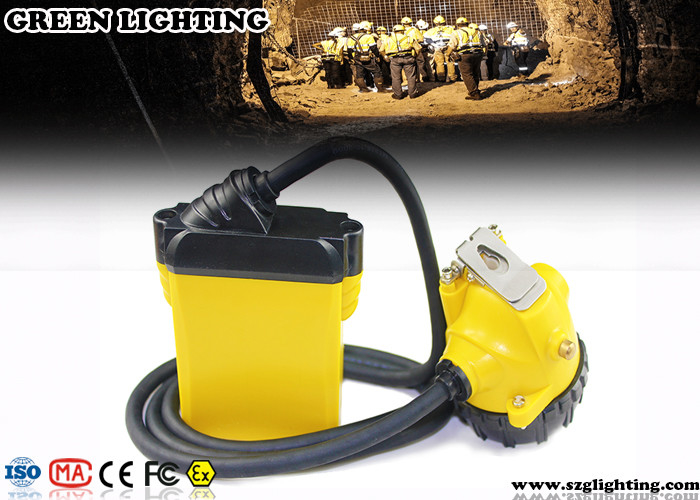

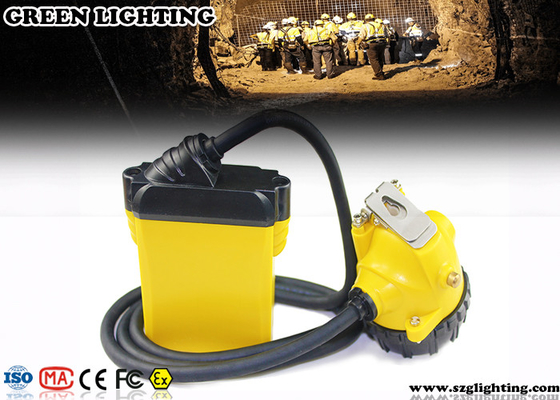

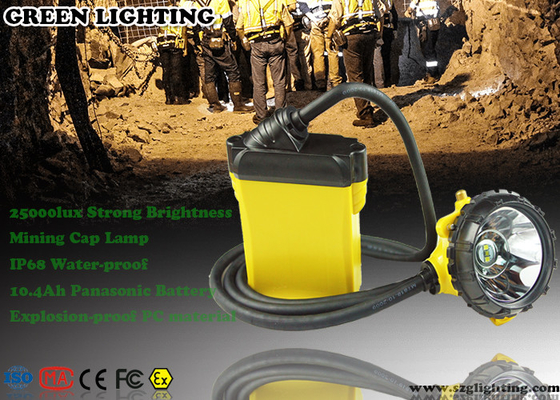

Strong Brightness Corded Mining Cap Lights, Underground Miner Cap Lamp
1. Description of GL12-A Corded Mining Cap Lights
a. 1pcs 3W Cree led as main light, 2pcs SMD leds as the auxiliary lights
b. Designed with high capacity 10.4Ah rechargeable Li-ion battery, also can change according customers requiremnents.
c. Four levels power as High-25000lux , Mid-15000lux , Auxiliary - 8000lux , Flashlight.
d. Material: uses Special material instead of PC, ABS as tradition lamps
2. Date specification
|Battery Type||Rechargeable 10.4Ah Li-ion Battery|
|Power of the strong light||3W|
|Power of the working light||1.8W|
|working current of strong light||850mA|
|working current of working light||450mA|
|Working time||more than 13 hours for working light|
|MOQ||Small quantity is available|
|Customized lamp||ODM, OEM orders are available|
3. Usage of Mining Cap Lights
This caplamp can be used in Mine, underground working, Patrolling, Overhauling and Emergency in electrical power company,Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
4. Advantages od GL12-A Corded Mining Cap Lights
Material: It uses Special material instead of PC, ABS as tradition lamps
Brightness of Main Light: 25000Lux strong brightness than traditiona lamps
Waterproof degree: IP 68
Weight: 520g, more lightweight than others
Apperance: Yellow and black, unique than others.
Charger: 2A single charger, fast charge than other corded lamps.
5. Shippment way
By sea, air, express
6. Customized Service
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour.
Electronic Circuit Design:
10 Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.
Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof,Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products.
In addition to the basic function(Illuminance, Working Time, Life Span) of lamps, Green Lighting can according to client's requirements and use condition to design some additional function, Such as coal mine personnel position system, wireless charging, USB charger, SOS, OLED Screen to display company information and miner's serial number.
According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
1. BRAND ORIENTATION, according to clients requirements for market research, analyze, diagnose and provide a tailor-made solutions
2. BRAND INTEGRATION, follow brand orientation to naming the brand, designing LOGO with Product Identity and Corporate Identity
3. BRAND PROMOTION, Green Lighting also can assist clients to promote brand, such as publicity and advertising. To achieve a successful brand for clients.
