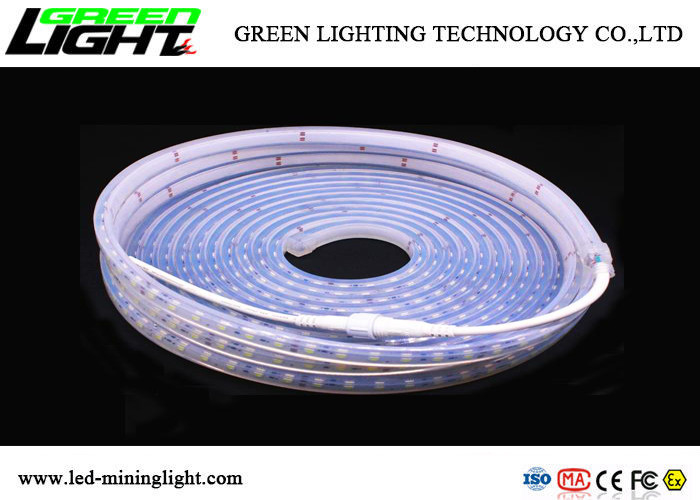

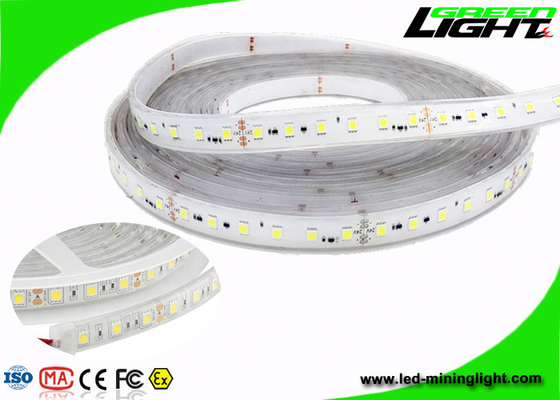

SMD5050 Safety LED Flexible Strip Lights High Voltage Temp Regulation Protection

SMD5050 Safety LED Flexible Strip Lights High Voltage Temp Regulation Protection

    • SMD5050 Safety LED Flexible Strip Lights High Voltage Temp Regulation Protection
    • SMD5050 Safety LED Flexible Strip Lights High Voltage Temp Regulation Protection
    • SMD5050 Safety LED Flexible Strip Lights High Voltage Temp Regulation Protection
  • SMD5050 Safety LED Flexible Strip Lights High Voltage Temp Regulation Protection

    Product Details:

    Place of Origin: Shen zhen,China
    Brand Name: Green Lighting
    Certification: CCC, CE, FCC
    Model Number: GL-XLM-GH02

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 meter
    Price: negotiate
    Packaging Details: Standard packaging or customers' requirements
    Delivery Time: sample order 3-7 woking days,bulk order 15-20 days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    LED Chip: Epistar Power Input: AC110V-250V
    Anti-explosive: Yes Waterproof: IP68
    Outer Covering: Food Grade Silicone Safety: Voltage/Temperature Control
    Service: OEM ODM Available Led Chip Brand: Cree
    Material: Sillicone Operating Temperature: -40℃ To 120℃
    Range Fed From Both Sides: 20 Metres Sample: Yes

    Waterproof 24V LED Flexible Strip Lighting Explosion Proof For Underground Mine


    Product Description

    Our plug and play system

    Conventional lighting requires separate power and a wired connection to every lamp, needing the expertise of electricians. This becomes labour-intensive and costly when running many meters of lighting. The BRANDO LED Strip Lighting plugs into an existing power source using a power supply which then connects to one end of the LED strip.



    Maintenance-free. Easy to repair.

    Damage to lighting through routine underground activities happens. When a conventional lamp is damaged, it results in loss of illumination over many meters – making the affected area a safety hazard until repaired by a qualified electrician. Should a section of the BRANDO strip light be damaged, only this section loses light. The remaining portion of the strip continues to provide illumination – allowing for a safer environment. Additionally, damaged sections can be replaced in 8" strips – making it a quick and cost-effective fix.



    • Intelligent temperature management, sensors monitor LED temperature and if safe parameters are exceeded the affected LED’s are automatically dimmed until safe temperatures are restored.

    • Intelligent voltage surge management, restorable resistors limit overcurrent and overvoltage situations.

    • AC to DC convertors, miniature voltage convertors.

    • Short circuit protection, in the case of short circuit the power is isolated until the circuit is normalized.



    Dimension: 10000mm(length) *20mm(width) *10mm(height)



    Main Parameter of GL-XLM-GS01 led strip lights waterproof

    TECHNICAL PARAMETERS:

    Part Number  GL-XLM-GH02
    LED Chip Epistar
    LED configuration 60 LED's spaced evenly over a metre length
    Range fed from both sides 20 metres
    Recommended fixing height 5 - 6 Metres
    IP Rating 68
    Power Consumption per LED 0.25 Watts
    Power Consumption per Metre 15 Watts
    Colour Rendering Index CRI > 80
    Colour temperature 6500 Kelvin
    Luminous Efficacy 80 Lumens / Watt
    Voltage on lighting VDC 24 VDC
    Supply voltage for power controllers VAC 85 - 265 VAC
    Light maintenance 15%-20% Drop over 4 years
    Lifespan 5 Years +
    Warranty Lighting 3 Years
    Outer covering Food grade silicone
    Dimensions 10000mm(length) *13.5mm(width) *6mm(height)
    Tensile strength +-50KG
    Operating temperature -40℃ to 120℃
    Protection Short Circuit
    Over Voltage
    Over temperature
    Over Current






    GREEN LIGHTING TECHNOLOGY INTRODUCTION:



    GREEN LIGHTING focus on LED Industrial products, Such as LED miner cap lamp, LED Strip light, LED explosion-proof troch, charging devices for more than 12 years.


    The main service we do is CUSTOMIZED, Brando according to customer's request to design new items to meet client's market
    positioning and use condition.


    Strong ID Team, Rich Experience Electronic Circuit Team, Professional MD Team, Outstanding Optical Design Team to design the product what clients needs, Brando cooperating with many clients with customized service around the world for different products,we manufacture best quality products by having a company culture of continuous improvement in the quality of our end products and services to our customers.

    Quality is the main focus in company because we valve our customers. We strive to provide our customers with products and services which meet and even exceed their expectation.Selective and performance monitoring of supplier against set criteria.
    Measurable quality objectives which reflect our business aim.Regular audit of internal processes.


    Performance, has been the most non - regrettable action that Brando does not rely on low performance. We day-by-day analyze the activities and strictly improve the performance.

    After Sales, it is the main criteria that all time matters. Brando have made it possible and built trust that the customer's rely
    on us and the quality we present.


    Warranty, GREEN LIGHTING provides one year product warranty.
    GREEN LIGHTING assures the quality and also gives maintenance free during one year tenure.
    We also provides maintenance of the cap lamps after one year tenure for having best relationship with customers.
