5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting

5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting

    • 5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting
    • 5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting
    • 5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting
    • 5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting
  • 5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting

    Product Details:

    Place of Origin: shen zhen City, China
    Brand Name: Green Lighting
    Certification: CE/ATEX/EXIBII /UL/ ROHS
    Model Number: GL-XLM-GS01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1meter
    Price: Negotiation
    Packaging Details: packing by colorful box of unit lamp with single charger
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Led Size: SMD 5050 Color: Cool White / White /RGB
    Power Input: AC24V-36V Input Frequency: 50/60 HZ
    Power /M: 16W /M , LED QTY: 60 Pce Per Meter
    M/roll: 10m Or 5 M Anti-explosive: Yes
    Fire Resistant: Yes Waterproof: IP68
    Material: Sillicone Safety: Voltage/Temperature Control

    Flexible 5050 SMD Low Voltage Led Strip Light Waterproof IP68 Use For Mining Lighting


    Flexible Led Strip Lights Features


    • Engineered for the harsh underground environment.
    • Reduce energy costs. Improve worker safety. Eliminate costly maintenance.
    • LED Strip Lighting is easy to install, lowers energy costs, provides a safer work environment and requires little to no maintenance.

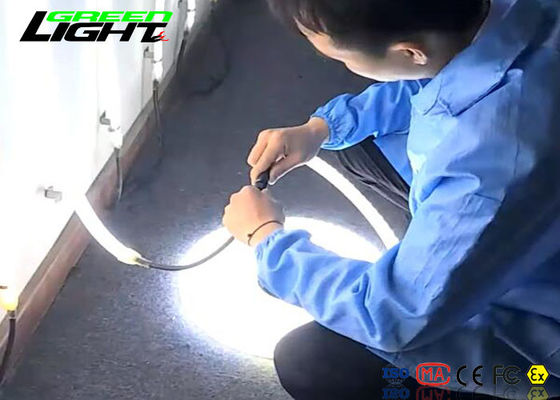

    Quick and easy installation, as opposed to bulky, conventional lighting.
    High strength design ensures that the lighting can be relocated at ease without any damage to the lighting.
    Variable Voltage Supply Capability.
    DC24V: it is safe for underground workers.

    Superior to traditional tunnel mining light, it is easy installation, high brightness without blind corner lighting.


    Save big on energy costs.
    It's well-known that LED lighting uses a fraction of the energy compared to conventional lighting sources such as metal halide or sodium lamps. With a typical power rating of 400W, lighting a 100 meter distance with lamps consumes 4000W continuously. Compare this to our LED strip lighting which consumes only 16W per meter for a total only 1600W over that same 100 meter distance! With thousands of meters of lighting requirements underground, it becomes clear how LED will save your mine money.

    Better lighting is safer.
    One of the pitfalls with conventional lighting is uneven light, referred to as "high and low spots" of luminescence that causes glare and confusion. This condition increases the risk of a hazardous work environment – especially when lighting failure occurs, leaving even darker areas with no lighting at all. LED strip lighting solves this by providing full lighting coverage, end to end, with no high or low spots, ensuring a constant and stable lighting solution.

    Set it and forget it.
    Conventional lighting such as metal halide or sodium lamps are prone to premature failure due to the harsh environmental conditions in underground mines. As a result, these lighting systems are known to lose up to 50% of luminescence within the first 4 to 6 months, and rarely last beyond 12 months. Continually replacing lamps throughout the mine is costly and adds to your annual lighting energy costs in a big way. LED strip lighting is not affected by the mine environment and loses +-1 to 2% per annum with a lifespan of 5 years. And best of all, damaged strips can be repaired in 8" sections – saving time and money.


    Main Parameter of Flexible Led Strip Lights  :


    Item Value
    Model GL-XLM-GS01
    Light source SMD5050
    Color white/warm white/cool white/RGB
    Color Temperature 3000K, 4000K ,  5500k-6000k , 10000K
    Input Voltage AC110V-220V
    Output Voltage DC24V/DC36V
    Power/M 16W

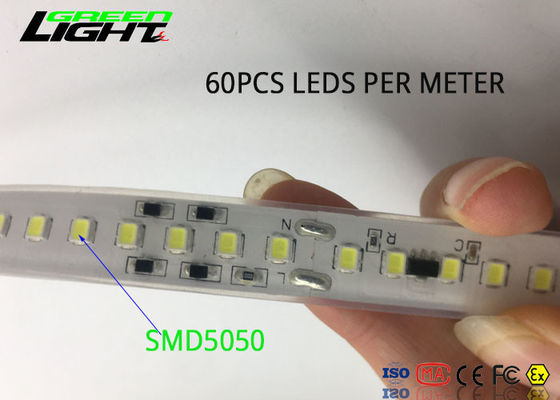

    LEDs/M 60 pcs leds per meter
    Waterproof grade IP68
    Protection anti-explosive, water-proof, over-current protection, voltage regulation protection



    Flexible Led Strip Lights


    Most conventional underground mining lighting systems lose up to 50% luminescence within the first 4 to 6 months and rarely last beyond the 12 month mark.


    Green Lighting LED Strip Lighting uses highly specialised components making it able to withstand being continuously energised. Green Lighting LED Strip Lighting functions at optimal efficiency in the most challenging environments for long periods of time. The light output lost is marginal at ±5% per annum for the first four years, thereafter stabilising at ±1-2% per annum.

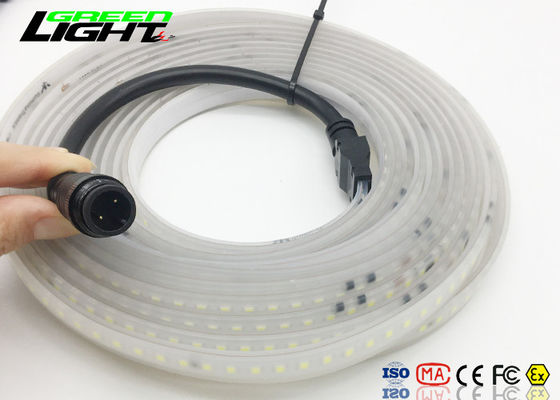

    5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting



    Flexible Led Strip Lights Lifespan compare with other type lamp


    ENERGY EFFICIENCY / LIFE Lifespan Loss in Brightness
    Compact Fluorescent Lamp 10-12 mths 50% (6-8 mths)
    Fluorescent Lamp 12-18 mths 50% (10-12 mths)
    High Pressure Sodium Lamp 18-24 mths 50% (12-18 mths)
    Metal Halide Lamp 10-12 mths 50% (6-8 mths)
    General LEDs 12-24 mths 50% (12-18 mths)
    LED Lighting Strip
    5+ yrs 30-50% (5+ yrs)



    Flexible Led Strip Lights Reduced maintenance requirements


    By comparison, the working life of a fluorescent light is significantly shorter than five years and therefore requires more frequent changing out of the light source, more maintenance activity and potential operation impact.

    LED Strip Lighting does not typically fail catastrophically, as is usually the case with fluorescent lighting, but rather the light output generally decreases over time. This allows for a regular maintenance schedule and replacement prior to failure, maintaining consistency of lighting and improving safety underground.

    The optimum solution for mining illumination, Green Lighting LED Strip Lighting is made of a high grade, fire retardant soft Silica Gel and is IP68 rated, making it compact and robust.



    Rgb Led Strip Lights Usage Scale


    Use for underground mines, tunnel, bridge, industrial lighting, home decoration

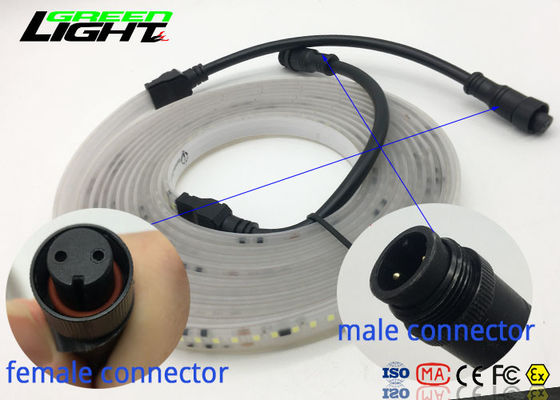

    5050 SMD Low Voltage Led Strip Light Waterproof IP68 AC 24V-36V For Mining Lighting



    Flexible Led Strip Lights  FAQ:

    Q: Could I put my own logo on the products?

    A: Sure, your logo can be put on every strip light, either by laser, or by moulds.
    Q: Could I put my own designs on the products?
    A: Of course, you can send us your design, we'll follow your design.
    Q: Can I have some samples before formal order?
    A: Yes, we can send you some free samples for your test before your order.
    Q: How long is the lead time?
    A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released. For customized products, it takes longer.
    Q: How about the after-sale service? What's the Warranty terms?
    A: We offer 12 months for every products we sold. If you meet any problems after sales, pls contact us freely, we'll help solving the problems within 24 hours.
    Q: Are you manufacturer or just dealer?
    A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
    Q: What's the payment terms? Can I pay after you got the products?
    A: Normally we accept TT and western union. L/C, Paypal is also accepted if the order quantity is large. For old customers, we'll guanartee monthly payment after good cooperationship.
    Q: I couldn't find the products I want in your catalogue, can you develop it for me?
    A: Yes, we have a research & development dept., we're willing to develop everything that you demand in safety lockout industries.
    Q: Do you have any office in other countries?
    A: Currently we don't have, but we're discussing with some good customers. If you're willing to be our agent in any countries, pls contact us freely.
    Q: May i take goods by air?
    A: yes, you can by air, express, sea up to options.
