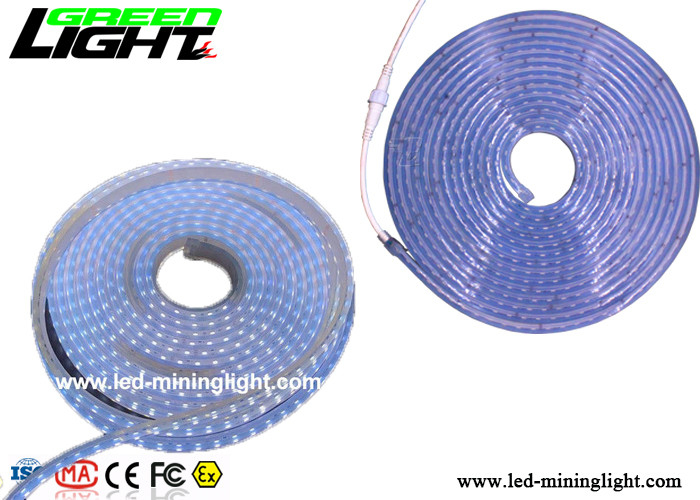

SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof

SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof

    • SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof
    • SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof
    • SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof
  • SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: Green Lighting
    Certification: UL,CE,ATEX
    Model Number: GL-XLM-GS01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 meter sample
    Price: Nogotiating
    Packaging Details: Standard package
    Delivery Time: 3-5 work days for sample order, 15-25 working days for bulk order
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 5000meters per months
    Contact Now
    Detailed Product Description
    Color Temperature: 5500k-6000k Output Voltage: DC 24V
    Power/M: 16W LEDs/M: 60 Pcs Leds Mer Meter
    Waterproof Grade: IP68 Protection: Over-current And Voltage Regulation Protection

    24 volt low voltage explosion-proof SMD5050 RGB colors led flexible strip light better use for underground mine



    New Design GL-XLM-GS01 Strip Light features:

    • 1. Flexible with impact resistant characters.
    • 2. High quality products, Europoean and US standard.
    • 3. 5050 SMD LED adopted,high brightness ,stable performance.
    • 4. Energy saving and environmental friendly.
    • 5. 5m/roll is the standard package, customized package as per your require.
    • 6. Each unit of 6LEDs can be cut out at regular segments.
    • 7. Cool White, warm white,red,green,blue and yellow color and RGB available.
    • 8. Electrical Protection and Temperature Protection:
    • Intelligent power controllers with built in overcurrent, overvoltage and overheating properties
    • protects against voltage fluctuations.
    • 9. DC24V: it is safe for underground workers.
    • 10. Power Input: 110V-250V with suitable usage range.
    • 11. Superior to traditional tunnel mining light, it is easy installation, high brightness without blind corner lighting.
    • 12. Flexible and super toughening silica gel material, waterproof connector and Voltage IC Controller, Temperature IC Controller, so strip lighting designed especially for underground mines.

    Main Parameter of GL-XLM-GS01 led strip light:


    LED SIZE SMD5050
    COLOR cool white/warm white/RGB (can be customized)
    Color Temperature 5500k-6000k
    Power Input Voltage AC110V-250V
    Power Output Voltage DC24V
    POWER/M 16W/M
    LEDs/M 60 pcs leds per meter
    M/Roll 5m/roll & 10m/roll
    Characters Anti-explosive,fire resistant, Voltage/Temperature control
    Ingress protection IP68
    Waterproof Connector Yes
    Color rendering index 80%
    Others

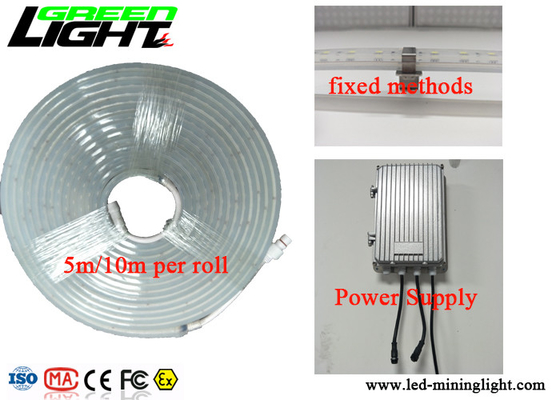

    Power Supply



    SMD5050 RGB Colors Waterproof Led Strip Lights 24 Volt Low Voltage Explosion Proof



    Super toughening silica gel soft with gold-plating process to better suit for hard underground mines surrounding



     The GL-XLM-GS01 strip light details as below:

    • Mainly designed for underground mines, tunnel.
    • Can suit for Hazardous Location Class 1, Division 2
    • Protection: explosion proof, waterproof IP68, over-current protection, voltage regulation protection.
      So you can use it for dust, humidity, rain, tremors environment and under the environment of corrosive gas lighting.

    Two processing:

    different processing with different price to suit for different surroundings:

    * super toughening silica gel soft over-molding process , flexible.

    * super toughening silica gel soft with gold-plating process to better suit for hard underground mines surrounding.



    Green Lighting LED Strip Lighting uses highly specialised components making it able to withstand being continuously energised. Green Lighting LED Strip Lighting functions at optimal efficiency in the most challenging environments for long periods of time. The light output lost is marginal at ±5% per annum for the first four years, thereafter stabilising at ±1-2% per annum.



    Reduced maintenance requirements



    By comparison, the working life of a fluorescent light is significantly shorter than five years and therefore requires more frequent changing out of the light source, more maintenance activity and potential operation impact.

    LED Strip Lighting does not typically fail catastrophically, as is usually the case with fluorescent lighting, but rather the light output generally decreases over time. This allows for a regular maintenance schedule and replacement prior to failure, maintaining consistency of lighting and improving safety underground.

    The optimum solution for mining illumination, Green Lighting LED Strip Lighting is made of a high grade, fire retardant soft Silica Gel and is IP68 rated, making it compact and robust.

    • Virtually indestructible
    • Long-lasting

    Application

    Underground mines, Tunnel or other conditions and constant exposure to heat, cold, dust, dirt, moisture and severe vibration sites.
