High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded

High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded

    • High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded
    • High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded
    • High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded
  • High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: Green Lighting
    Certification: CE, ATEX,ROHS
    Model Number: GST-7B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece available
    Price: negotiable
    Packaging Details: colorful box; can be customized as your request
    Delivery Time: sample order for 3-7 working days, bulk order within 10-25 working days
    Payment Terms: L/C, T/T, Western Union for 100% Payment Before Shipping
    Supply Ability: 10000 pieces per month
    Contact Now
    Detailed Product Description
    Name: Semi-corded Miner Headlamp Battery: 6.8Ah Panasonic Battery Pack
    Brightness: 15000lux Standard Color: Yellow, Black, Customized Color With MOA 500PCS
    Light Weight: About 392g Lighting Time: 13-15hours
    Service: OEM ODM Available Rear Warning Light: Red/green/blue Three Color Up To Your Options

    High Brightness Rechargeable Cree LED Safety Cap Lamp for Miner Semi - Corded



    Features of GLS12-A semi-corded Miner Cap Lamp:



    1). 15000lux high beam corded lamp.

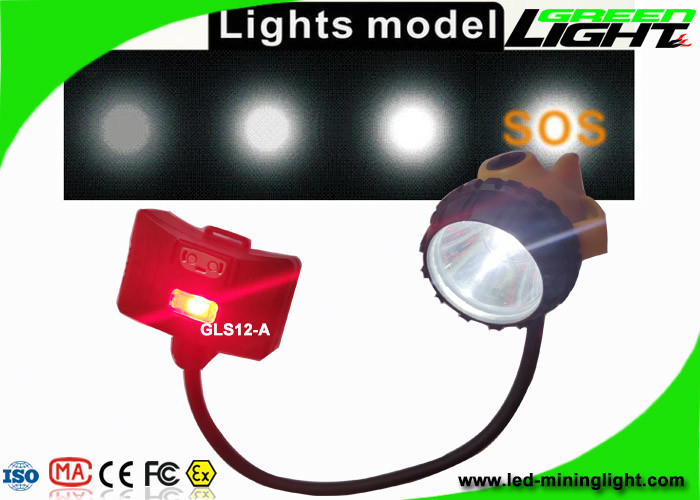

    2). 4levels Lighting Mode: work light - strong light (15000lux) - auxiliary light - SOS (high safety)

    3). Safety reliable and free maintenance.

    This new cordless cap lamp uses Li-ion batteries which can keep the lamp more than 13 hours continuous working time.

    The motherboard is designed with short-circuit, over-charging, over-discharging protection.

    And it is also high temperature and low temperature resistant.

    It is also waterproof, anti-explosive, compact resistant, fire retardant to keep safety use.

    4). Lightweight 392g and 6.8Ah panasonic battery pack.

    5). Low power warning function for safety lighting.

    6). Rear warning light with red, green, blue three colors for options.

    7). Safety rope for lamp falling down searching.

    8). Anti-explosive, flame-resistant, impact-resistant, IP68 Waterproof.

    9). Aluminum lighting cup with better lighting spot.

    10). Charger: USB charger (USB cable) ,cradle charger (battery part) or cradle charger (lamp head part).

    11). Reflective strip.



    Advantages of Semi-corded cap lamp:

    • Light weight comparison with corded cap lamp
    • Safety rope to avoid fallling down searching
    • More parts charging (head part, battery part (usb/cradle charging)
    • Rear waring light with red, green, blue color up to options (comparison with cordless cap lamp), more safer



    Main parameter of GLS12-A rechargeable mining headlamp:



    Item GLS12-A
    Light source 1MA and 2AL
    Battery capacity 6.8Ah panasonic Li-ion battery pack
    Rated voltage 3.7V
    Power of main light

    1.7W

    Main Light current 450mA
    Brightness of ML 15000lux
    Illuminous of ML 221lum
    Working time  13-15hours
    Life span of light source 100000hours
    Battery cycles 1200
    Weight 392g
    Ingress protection IP68

    Certificate

    CE, Atex, rohs
    Customization service Yes

    High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded

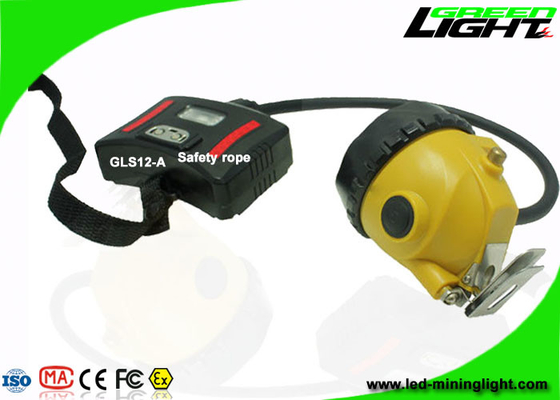

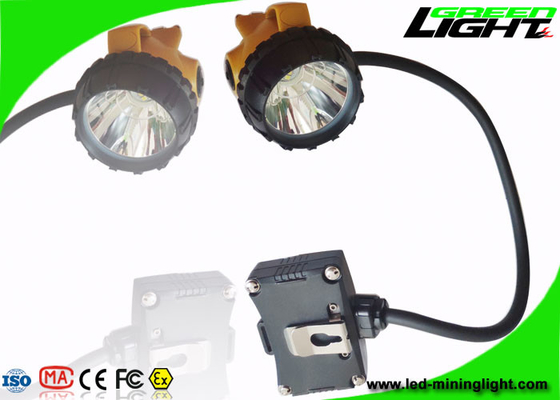

    Detailed Pictures of GLS12-A mining cap lamp:



    High Brightness Cree Led Headlamp Rechargeable Low Power Warning For Miner Semi - Corded



    LED Cap Lamp Trouble Shooting:


    1. If abnormal phenomena happen but the lamp is in the normal using status,must be
    careful to check the reason firstly.Then deal with the problem.
    2. The lighting time is not enough



    No Reason Treatment
    a No enough charging First,should check if the connection between the
    charger’s output plug and lamp’s charging socket
    is good
    b Using too long to achieve life Replace the lamp
    c Charger does not work Check if the indicator of charger is good and also
    check if the connection of charger’s AC power
    endpoint is good


    3, The lamp is off suddenly when it works


    Reason:short circuit or battery power runs out



    Treatment:turn off the main light source,restart,then the lamp should be on (remark:
    the lamp has a circuit breaker);It is is still off after restarting,please charge the battery.
    If it still doesn’t work after charging,it means the lamp has some problems,delivery the
    lamp to factory for repair.





    Green Lighting Electronics Co.,LTD.



    High safety cap lamp with tracking systems is trend for underground mines/tunnel sites.

    We are researching and developing tracking systems to plant into cap lamp.

    Simple NFC tags design into caplamp to manage miners work attendance.
    RFID TAG to store data about mine lamp info.

    We trust we can make it successfully in the near future.



    Our aim: offering good quality high safey cap lamp for underground miners.



    Our clients: we are proud to be OEM factory for our Canada Customer and South African Customers (Big company for selling mining cap lamp with tracking systems)



    Our service: 1year warranty time if any quality problem.



    Our pursuit: Customer's satisfaction and good usage feedback.



    Hope sincerely cooperate with you and grow up together (business or lamp technology).
