Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body

Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body

    • Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body
    • Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body
    • Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body
  • Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body

    Product Details:

    Place of Origin: Shenzhen china
    Brand Name: Green Lighting
    Certification: CE, ATEX, FCC
    Model Number: GL5-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiated
    Packaging Details: 1 lamp , charger and manul in colorful box
    Delivery Time: sample order at once, bulk order within 15-20 working days
    Payment Terms: T/T or Western Union in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment
    Supply Ability: 10000 piece in one month
    Contact Now
    Detailed Product Description
    Type: Led Coal Mining Lights COLOR: Black+Yellow
    LOGO: Customized Main Light Current: 450mA
    Water-proof Grade: IP68 Brightness Of The Main Light: 10000LUX
    Illuminous: 216LUM Main LED: 1.67W
    Use For: Underground Mining Charger: AC100-240V / 50-60Hz.


     waterproof underground mining safety led coal miner cap lamp with black body

    1. Led Coal Mining Lights Features:

    Safety : Over-charging protection , over-discharging protection, protection in electrical short-circuit,
    automatic power-off on the socket , 100,000 hours LED’s Lifetime

    Portability :Small in size , light in weight (only 478g for whole product),inductive charging, easy usage
    Efficiency: more than 16hours at full brightness, over 80hours at back up led brightness.Over 10000lux
    Brightness

    Environmental : Li-ion battery is free for maintenance, and the material of li-ion is environmental, use
    1Watt high power LED as the main light, and 6pcs backup LED’s to save power

    Economy : three times longer than lead and acid cap lamp and saving in maintenance makes the product
    more compatible in price

    Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous discharging time: more than 16hours at full brightness, over 80hours at back up led brightness.

    Type of protection : IMI EXia IICT6 (Zone 1 and 2)

    Protection category : IP68

    Working temperature : -10 ~ 45 degrees
    Relative air humidity : <= 95% +- 3RH

    2.Technical Specifications:

    GL5-B Specification
    TypeLed Coal Mining Lights
    LightMain LED quantity1pc
    Auxiliary LED quantity6pcs
    Main light power1.67watt
    Main light current450mA
    Main light Luminous flux216LUM
    Brightness of the main light
    (Initial Lighting degree)
    10000LUX
    Main light Life span10000hours
    Auxiliary light life span>5000hours
    Auxiliary light power0.4watt

    BatteryTypeLithium ion battery
    Quantity4 cell
    Rated capacity6.6Ah
    Rated Voltage3.7V
    Cycles times1000 cycles
    Continuous working time16 hours
    Short circuit protect time< 320uS
    Charging time3.5h (by charger)

    Usually SpecificationColorBlack+White
    MaterialPC
    Main cable length1.6m
    Glass thickness3mm-5mm
    Weight478g
    Water-proof gradeIP68
    CertifiedCE,ATEX,EXIB II M1

    Traditional/
    Fast intelligent
    charger
    AC input100-240V , 50-60Hz
    DC input7-30V
    DC output voltage4.2v +_0.05v
    DC output current1000mA /2000mA
    AC PlugUS,EU,UK and AU standards all countries
    Dimensions56*76*116mm
    Weight215g


    Packing:
    packing by colorful box of unit lamp, 60pcs/carton. Also accept customers designed package.

    3.Product Pictures:

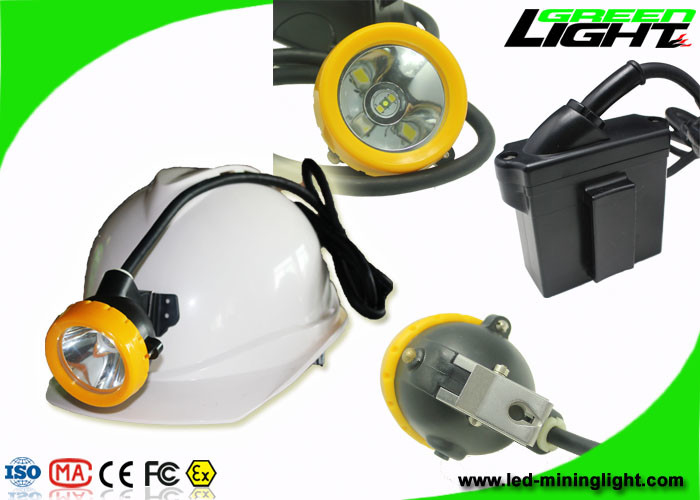

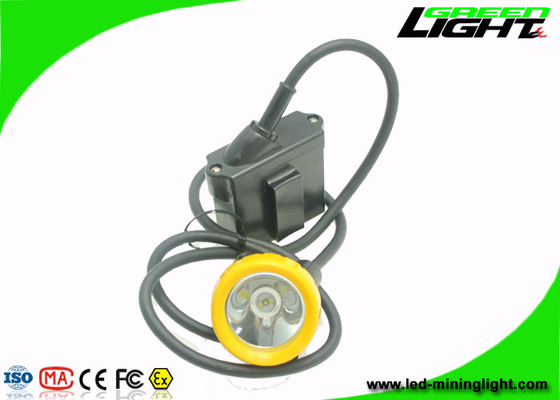

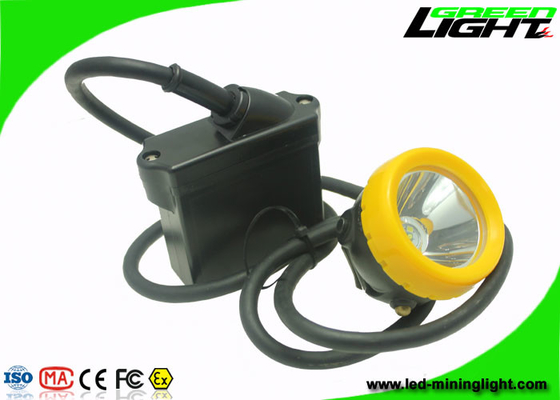

     Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body

     Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body

    Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body
    4. Special Requested &Our Advantages

    1).Charger(Lithium ion):
    It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.

    2).LED:it adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 3000 lux/60lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)

    3).Battery (Lithium ion)
    It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery.
    1). May you provide LOGO us to manufacture.
    2). High quality and competitive price .
    3). Can according to your requested to design new item that suitable for your market.
    4). Above is only for your reference, we can custom make as per your requested.
    5). We sincerely welcome foreign friends who have the need of export.


    a. Ten years development experience.
    b. Advanced testing euipments.
    b. Professional development and sales group.
    c. The market covers more than fifteen counrtries.
    d. Products are certified to keep the high quality.

    Waterproof Underground Cordless Cap Lamp Mining 216 LUM 1.67W With Black Body

    5.Our Market:

    our products have already captured the vast consumer markets in many countries such as South America, North America, Europe, Australia, South Africa, Middle East, etc. We have already have more than sixty distributors in forty four cities over the world. If you want to be our distributor, pls contact with us.
