2.8Ah Lithium-ion Battery IP68 LED Miners Headlamp for Hard Hats with Movable Steel Hook

2.8Ah Lithium-ion Battery IP68 LED Miners Headlamp for Hard Hats with Movable Steel Hook

    • 2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook
    • 2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook
    • 2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook
    • 2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook
  • 2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook

    Product Details:

    Place of Origin: shenzhen ,China
    Brand Name: GREEN LIGHTING
    Certification: ATEX, CE., FCC.,SAA.,MSHA
    Model Number: GLS2.5-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 16USD/PC - 18USD/PC
    Packaging Details: gift box. 15*10*8cm each box, 44*44*36cm each carton, 50pcs/carton, 15.5kg/carton
    Delivery Time: 7-15 days
    Payment Terms: Western Union, MoneyGram, T/T, L/C
    Supply Ability: 100000PCS/month
    Contact Now
    Detailed Product Description
    Type: LED Miners Headlamp Battery: 2.8Ah Lithium-ion Battery
    Water-proof Grade: IP68 Steel Hook: Movable Steel Hook
    Brightness Of The Main Light: 35000 Lux Cycles Times: 1000 Cycles
    Use: Coal Mining Lights For Hard Hats Material: PC
    Main Light Current: 230mA Weight: 128g



    2.8Ah Lithium-ion Battery IP68 LED Miners Headlamp, Coal Mining Lights for Hard Hats with Movable Steel Hook



    Characters for miners headlamp

    Magnetic USB charger and Charging indication,Movable Steel Hook.

    Battery type: 2.8Ah Rechargeable Lithium-ion

    High power LED light source, extra long lifetime (50000 hours);

    Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating;

    Wateproof grade : IP68,current shock proof, moisture proof and impact proof;
    High Quality Material : Germany Bayer PC
    Portable Light Weight : 128g , similar to the weight as a cell phone, more portable.
    Multi-function lighting modes : main light - auxiliary light

    Light Color : White, warm white,red,green,blue and yellow color and RGB available.



    GL2.5-A LED Miners Headlamp Specification
    Type Coal Mining Lights
    Light Main LED QTY 1pc
    Auxiliary LED QTY 6pcs
    Main light power 1watt
    Main light current 230mA
    Main light Luminous flux 110LUM
    Brightness of the main light
    (Initial Lighting degree)
    3500LUX
    Main light Life span 100000hours
    Auxiliary light life span >3000hours
    Auxiliary light power 0.4watt

    Battery Type Lithium ion battery
    Quantity 1 cell
    Rated capacity 2.8Ah
    Rated Voltage 3.7V
    Cycles times 1000 cycles
    Continuous working time 13 hours
    Short circuit protect time < 320uS
    Charging time 3.5h (by charger or USB)

    Usually Specification Color black
    Material PC
    Main cable length NA
    Dimensions 62*57*80mm
    Weight 128g
    Water-proof grade IP68
    Certified CE,ATEX,EXIB II M1

    Traditional/
    Fast intelligent
    charger
    AC input 100-240V , 50-60Hz
    DC input 7-30V
    DC output voltage 4.2v +_0.05v
    DC output current 1000mA /2000mA
    AC Plug US,EU,UK and AU standards all countries
    Dimensions 56*76*116mm
    Weight 215g

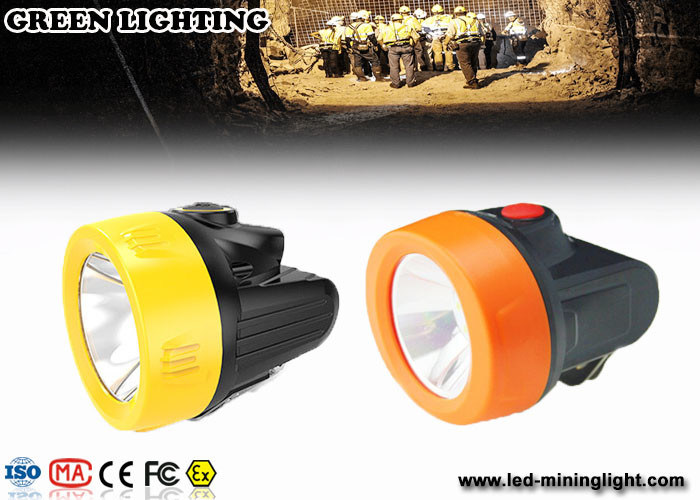

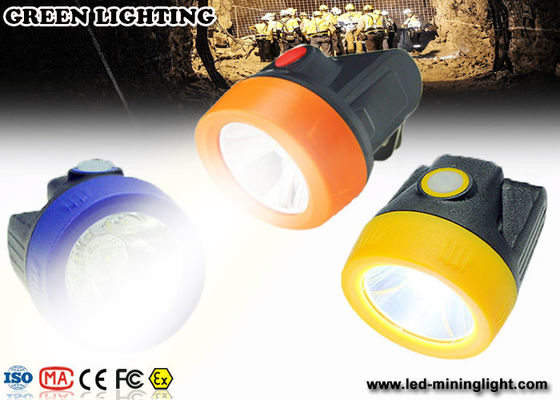

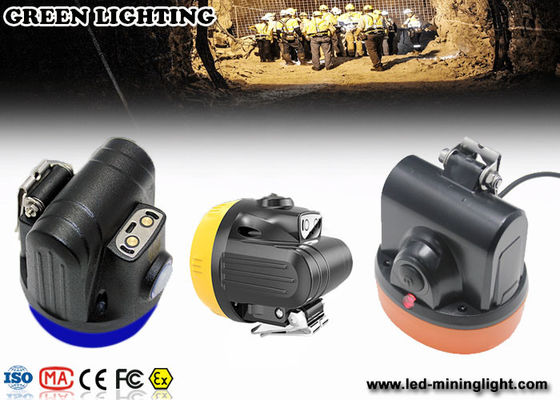

    The miners headlamp pictures

    2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook





    Miners Headlamp Troubles and troubleshootings



    Description Analysis Troubleshooting
    Light is not bright

    Switch contact is bad /

    Led source is broken

    Inspect switch, measure the circuit, If the switch contact

    is good, then check the voltage of LED and the circuit

    or contact with the manufacturer.

    Not Light enough time Undercharge

    First check the contact points, and then charge

    according to the regulation .

    New lamp use without cycle charge

    before

    Precycling charge according to the regulations.
    The Lifespan of battery is over Replace the new lamp
    Illumination is not enough Low battery voltage

    Measure the battery voltage, ensure charging time up

    to 7hours.

    The glass is serious pollution Can wash the lens suface of lamp by water .

    The lamp can't charge

    or long charging time

    Charger (rack) breakdown or battery

    damages, charge manager fault

    Check the charger 's output voltage and current ,

    if all normal, check the battery ,

    measure its internal resistance and capacity.

    If not up to technical requirements, replace

    charger or contact with the manufacturer.

    Can't rotate on fixed point The screws of clip is started Fasten the screw appropriately



    ) In the first time using lamps, pls use our special charger or accorded charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it means that charger have finished charging.

    2) Our GL2.5-C cordless cap lamp has one main light and six auxiliary lights. It has two lighting modes.

    When you press the button firstly, the main light is on , press secondly, the lamp is off, press thirdly,

    the auxiliary lights is on, press fourthly, the lamp is off. GL2.5-C cordless cap lamp just has one main

    light, and has one strong brightness lighting.



    Our Advantages:

    1. Flexible, can be bent into any shape

    2. High quality products, European and US standard

    3. 3528 or 5050 SMD LED adopted,high brightness ,stable performance.

    4. long lifetime,5% attenuation after 2500 hours,life time is 80000-100000 hours

    5. Energy saving and environmental friendly.

    6. 5m/rell is the standard package,but the size can be customized

    7. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M. etc.

    8. Each unit of 3LEDs can be cut out at regular segments.

    9. 3M adhensive attached on the back of PCB,for stick installation.

    10. White, warm white,red,green,blue and yellow color and RGB available.

    Safety : All our lamps has one year warranty. We will keep free maintenance for you in one year.

    Industrial Applications:

    Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company, Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect...

    Suitable for explosive gas environment zone 1, zone 2 locations.

    Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places.

    Suitable for A, II B, II C explosive gas environment.

    Suitable for indoor, outdoor 1.8-3.5 meters in height.

    Samples : Small Orders Accepted

    Our main market: Australia, India, Canada ,USA,etc...



    2.8Ah Lithium-ion Battery IP68  LED Miners Headlamp for Hard Hats with Movable Steel Hook



    RFQ

    Q: What does IP mean?

    A: IP (Ingress Protection) classifies the degrees of protection provided against the intrusion of the bulb. The first clip indicates the bulbs resistance to solid intruders (like dust), and the second cipher indicated the bulbs resistance to water.



    Q: What is the distinguishing feature of explosion-proof?

    A: Meet GB3836-2000 "explosive gas environment use electrical equipment" stand.



    Q: What is the advantage of environmental protection?

    A: The LED solid state light source, no lead and mercury, no radiation pollution and recyclable.



    Q: What is emergency device?

    A: Optional configuration, integration design, safety, long life span, can be removed from the DC power supply system.



    Q: What is Lux:

    A: LUX is a measurement of, how much luminous flux is spread over a given area.



    Q: What is Lumen?

    A: Lumen (Lm) is a measure of the total amount power of the light that is emitted at a1 meter radius at a 360 degree angle from a light source.



    Q: How to take the samples?

    A: More than 30 kinds of different types and sizes coal mining lamp .

    We can send samples to you for testing, samples have in stock, can provide to you soon.

    We can do the products with your LOGO, language.

    Accept ODM, OEM orders, can customized products with client requirements.
