All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah

All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah

    • All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah
    • All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah
    • All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah
    • All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah
  • All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah

    Product Details:

    Place of Origin: shenzhen ,China
    Brand Name: GREEN LIGHTING
    Certification: ATEX, CE., FCC.,SAA.,MSHA
    Model Number: GLT-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 25USD/PC - 45USD/PC
    Packaging Details: gift box. 95mm*90mm*40mm each box, 50pcs/carton, 10kg/carton
    Delivery Time: 7-15 days
    Payment Terms: Western Union, MoneyGram, T/T, L/C
    Supply Ability: 100000PCS/month
    Contact Now
    Detailed Product Description
    Light Type: All-in-one Cordless Mining Lights Valtage: 3.7V
    Battery Capacity: 2.2Ah Battery Stype: One 18650 Li-ion Battery
    Light Source: 1pc Main Light And 6 Pcs Auxiliary Light Main Light Current: 200mA
    Power Of Main Light: 1w Illuminous: 117lum
    Brightness Of Main Light: >4000lux Weight: 171g
    Waterproof: IP68 Waterproof LED Life Span: 100000h



    All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah



    1.  Feature for Cordless Mining Lights



    Safety : Over-charging protection , over-discharging protection, protection in electrical short-circuit,

    Anti -Explosive CE , 100,000 hours LED’s Lifetime



    Portability : All-in-one structure, Small in size , light in weight (only 171g for whole product),

    inductive charging, easy usage



    Efficiency : main led working time more than 15hours at full brightness, over 80hours at back up led brightness.Over 4000lux Brightness .



    Environmental : Li-ion battery is free for maintenance, and the material of li-ion is environmental, use

    1Watt high power LED as the main light, and 6pcs backup LED’s to save power



    Economy : three times longer than lead and cap lamp and saving in maintenance makes the product more compatible in price .



    Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous discharging time: more than 15hours at full brightness, over 80hours at back up led brightness. or charging way use the USD cable charger.



    Protection Waterproof : IP68

    2: Cordless Mining Lights Specifications:



    Item Value
    Model GST-2
    Light source 1pc main light and 6pcs auxiliary lights
    Battery capacity 2.2Ah
    Rated Voltage 3.7V
    Main light current 200mA
    Power of the main light 0.93W
    Illuminous 117LUM
    Brightness of the main light 4000lux
    Life span for main LED 100000hours
    Battery cycles 1000 cycles
    Working time 13 hours
    Weight 171g
    Water-proof grade IP67
    Certified CE,ATEX,EXIB II M1

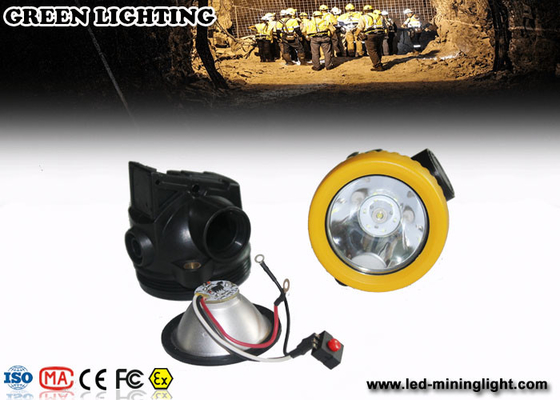

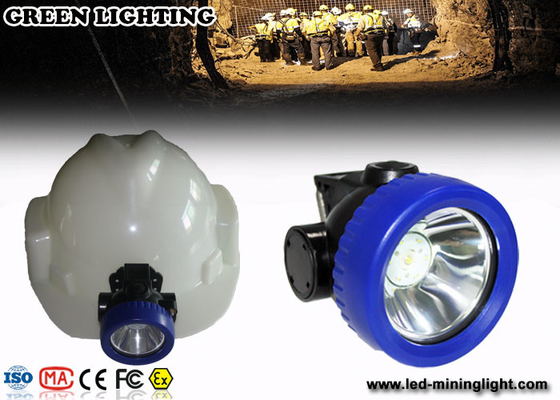

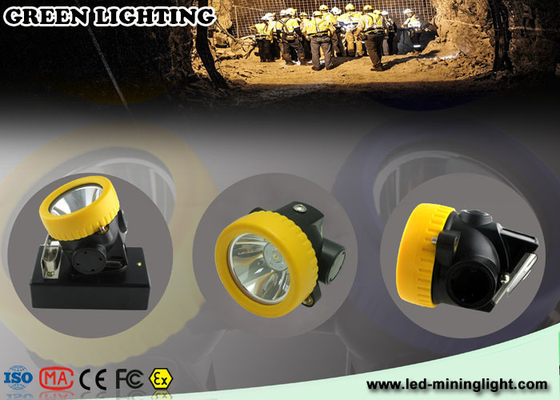

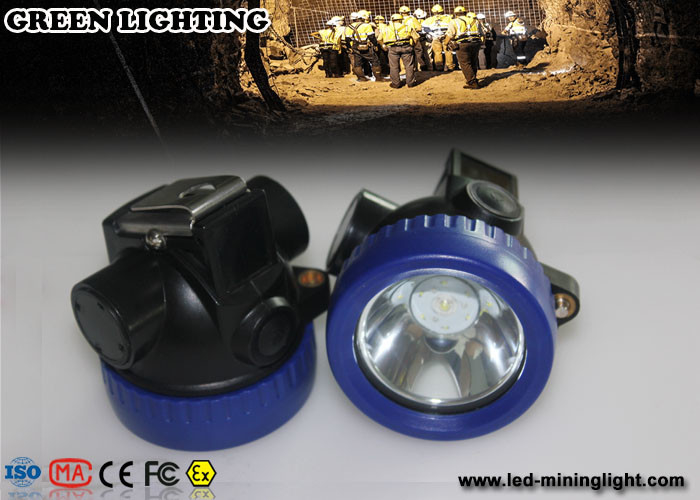

    3. Cordless Mining Lights Pictures





    All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah



    4.USE GUIDE

    * Precycling charging

    The Cordless Mining Lights  has been charged to about 40% of capacity when leave factory. New minering lamp doesnot use straightly. After discharge all capacity, then use USB charger into charging time, not less than 7hours. After fully charged,light the lamp in the lamp housing to check it .



    *Charging attention

    Using other charging method should be approved by the company, otherwise it may be match, causing damage the product.



    *Normal use method



    Press the power switch on the lamp cap to use it, can open or close light source.

    The main light source can be illuminatedfor more than 13 hours;if it exceeds a predetermined work time , the lamp can switch to the auxiliary light source antomatically, in order to maintain longer lighting time.



    *Storage

    Cordless Mining Lights should be stored at ambient temperature 0~40 degree . Dry, clean and well-ventilated, non-corrosive medium warehouse, should stay away from fire and heat.



    5. Cordless Mining Lightscan be widely used for :

    • camping, travelling, cycling
    • tool, maintenance lighting
    • fishery, diving, fire-fighting
    • military, architecture, living
    • furniture, farm lighting
    • night fishing, car-carrying, road and railway lighting, forest farm



    6. OUR SERVISES



    Appearance

    Strong ID Team, according to client's market positioning, use condition to design product shape, pattern and colour. Recently, customized the semi-corded, cordless with tracking position and infrared receiver.



    Electronic Circuit

    Rich Experience Software and Hardware Engineers, such as PCB's Design and Layout. LED Driver, Charging Circuit, Battery Protection Circuit and so on.

    Write the request to cap lamps, such as clients company name, LOGO, serie No. and user name.



    Structural Design

    Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof and Dust-proof Products etc. 10 years work experiences in underground field. Very familiar with miner's lamp industry products. MD team will field visit and according the use condition to design the waterproof.



    Optical Design

    According to LED luminous flux, light cup curve and current to design the light beam.

    All In One Anti Explosive Cordless Mining Lights , 1w Led Miners Cap Lamp 2.2ah
