Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose

Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose

    • Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose
    • Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose
    • Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose
    • Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose
  • Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose

    Product Details:

    Place of Origin: SHENZHEN , CHINA
    Brand Name: GREEN LIGHTING
    Certification: ATEX, CE., FCC.,SAA.,MSHA
    Model Number: GLC-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: 30USD/PC - 50USD/PC
    Packaging Details: One set each gift box with 1pc head lamp, 1pc USB charger / Single Charger and Manual Accept customized packing
    Delivery Time: 7-15 days
    Payment Terms: Western Union, T/T, L/C, MoneyGram
    Supply Ability: 10000PCS/month
    Contact Now
    Detailed Product Description
    Material: PC+ABS LED: CREE
    Luminous: 129 Lum Brightness: 13000lux
    Battery Capacity: 6.2Ah Rated Voltage: 3.7v
    Power: 0.96W LCD/OLED Screen: Yes
    Charging Time: <6h Warking Time: 20h
    Weight: 200g Waterproof: IP68

    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose



    1.LED Mining Light specifications

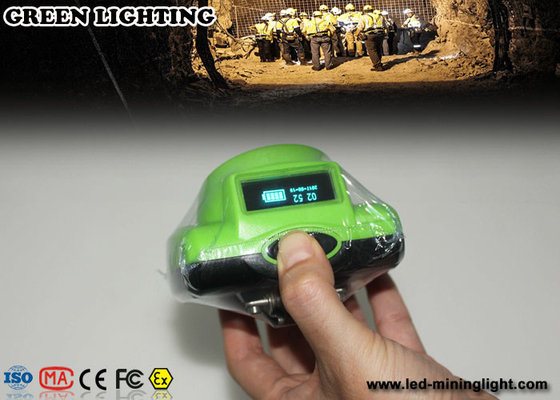

    • OLED: Display the battery status, time, date and client's company information
    • Bring you "USE AGAIN"
    • Magnetic USB charger or cradles
    • Brightness 13000lux
    • Three Level: 1 higher, 2 normal, 3 SOS light
    Cordless Cap Lamp features a compact, low-fuss click-and-go design,
    and offers over20 hours of constant use.
    Unique to the cordless model is a back-lit display screen with battery life indication,
    providing clear warning when recharge is required.



    2.  LED Mining Light Specifications



    Item Value
    Light source 1pcs main light and 2pcs auxiliary lights
    Battery capacity 6.2Ah
    Rated Voltage 3.7V
    Main light current 300mA
    Power of the main light 0.96W
    Illuminous 125LUM
    Brightness of the main light 13000lux
    Life span for main LED 100000hours
    Battery cycles 1200 cycles
    Working time 20 hours
    3 Levels Light Strong light- auxiliary lights- SOS
    Weight 200g
    Water-proof grade IP68





    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose
      .


    3.Usage guide
    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose

    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose

    4.Application

    Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose



    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose



    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose


    5.Troubles and troubleshootings


    Trouble description Trouble analysis Troubleshooting

    Light is not on when pressing
    the button

    Battery power is used up or
    Automatic opening protection

    Charge the lamp

    Working time is less than
    12 hours

    Battery is not fully charged

    Make sure the lamp well
    connected to the charger
    when charging

    Longer charging time The charging points poor contact

    Clean the charging points
    and the slot

    Low illuminance Dirty lens Clean water wash lens

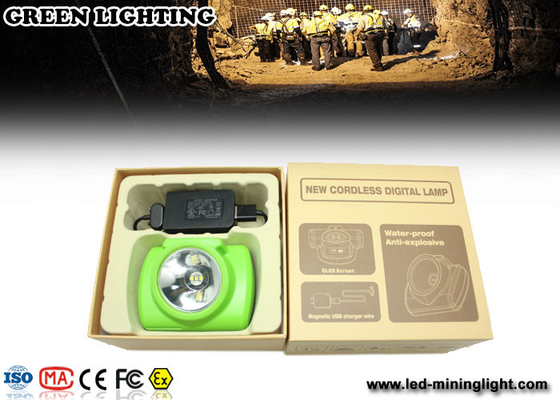

    6.Packing:

    One set each gift box with 1pc head lamp, 1pc USB charger / Single Charger and Manual

    Oled Display All In One Cree Led Cap Lamp , Super Bright Coal Mining Lights With Sos Purpose



    7.Special Requested

    1), May you provide LOGO us to manufacture.

    2), High quality and competitive price .

    3), Can according to your requested to design new item that suitable for your market.

    4), Above is only for your reference, we can custom make as per your requested.

    5), We sincerely welcome foreign friends who have the need of export.





    8.Accept Customized as client's requirements:



    Appearance

    Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour. Recently, customized the semi-corded, corded, cordless with Tracking position and Infrared receiver



    Electronic Circuit

    Rich Experience Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.

    Write the request to cap lamps, such as clients company name, LOGO, serie No and user name.

    Structural Design

    Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof, Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products. MD team will field visit and according the use condition to design the waterproof.

    Optical Design

    According to LED Luminous Flux, Light cup curve and current to design the Light Beam



    9.FAQ



    Q: What does IP mean?

    A: IP (Ingress Protection) classifies the degrees of protection provided against the intrusion of the bulb. The first cipher indicates the bulbs resistance to solid intruders (like dust), and the second cipher indicated the bulbs resistance to water

    Q:What is the distinguishing feature of explosion proof?

    A:Meet GB3836-2000’’explosive gas environment use electrical equipment’’stand

    Q:What is the advantage of environmental protection?

    A:The LED solid state light source,no lead and mercury,no radiation pollution ,after the of recyclable.

    Q:What is Lux?

    LUX is a measurement of, how much luminous flux is spread over a given area.

    Q: What is Lumen?

    Lumen (Lm) is a measure of the total amount power of the light that is emitted at a 1 meter radius at a 360 degree angle from a light source.

    Integrating Sphere is used to measure Lumen.

    Q: How long is 50,000 hours?

    There are 8,760 hours in a year, so this is what 50,000 hours works out to be, depending on hours of operation.
