|Place of Origin:||shenzhen ,China|
|Brand Name:||GREEN LIGHTING|
|Certification:||ATEX, CE., FCC.,SAA.,MSHA|
|Minimum Order Quantity:||1pcs|
|Price:||16USD/PC - 18USD/PC|
|Packaging Details:||gift box. 15*10*8cm each box, 44*44*36cm each carton, 50pcs/carton, 15.5kg/carton|
|Delivery Time:||7-15 days|
|Payment Terms:||Western Union, MoneyGram, T/T, L/C|
|Brightness:||>6000 Lux||Lifespan:||1200 Cycles|
|Charging Time:||3~5 H||Power:||1W|
|Light Qty:||1 Main Led Light +6 Aux Led Light|
1. Feature for Cordless Mining Lights
Wateproof grade : IP68
Anti-explosive grade : Ex ia
High Quality Material : Germany Bayer PC
High Beam Brightness : >6000LUX
Portable Light Weight : 150g , similar to the weight as a cell phone, more portable.
Multi-function lighting modes : main light - auxiliary light
|Light source||1pc main light and 6pcs auxiliary lights||1pc main light||1pc main light and 6pcs auxiliary lights|
|Main light current||230mA||500mA||230mA|
|Power of the main light||0.85W||1.85W||0.85W|
|Brightness of the main light||3500lux||10000lux||6000lux|
|Life span for main LED||100000hours||100000hours||100000hours|
|Battery cycles||1000 cycles||1000 cycles||1000 cycles|
|Working time||13 hours||6 hours||13 hours|
|Certified||CE,ATEX,EXIB II M1||CE,ATEX,EXIB II M1||CE,ATEX,EXIB II M1|

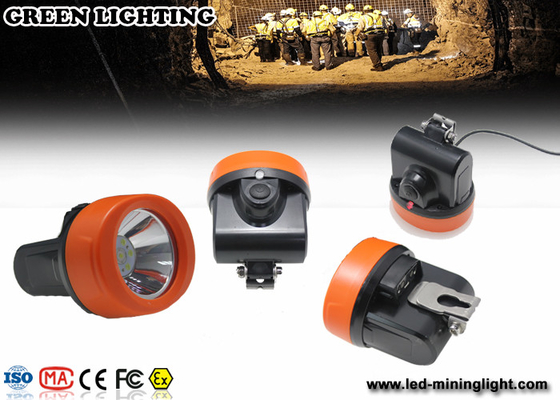

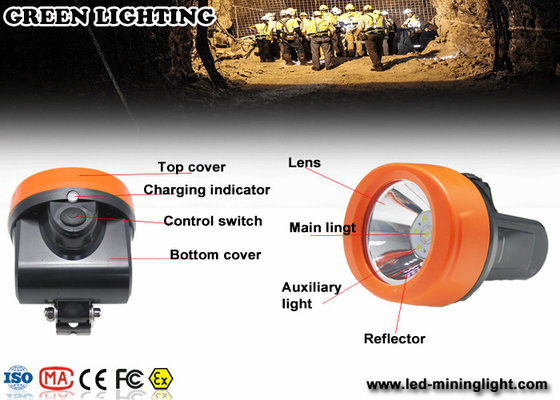

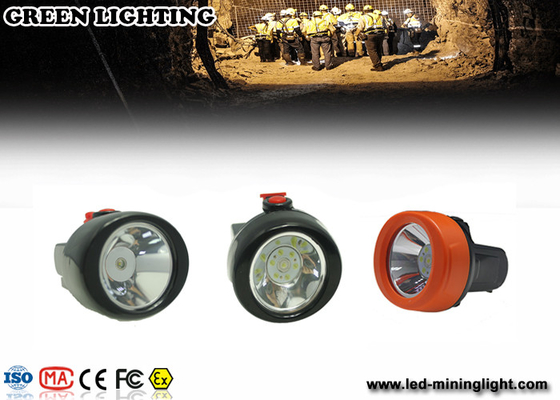

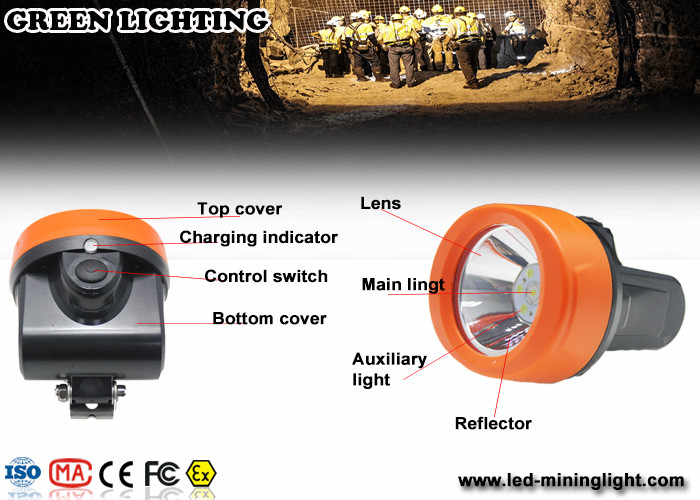

2. General Guide PICTURES
3. Our products can be widely used for :
4. Product Advantages:
Safety : Over-charging protection , over-discharging protection, protection in electrical short-circuit,
automatic power-off on the socket , 100,000 hours LED’s Lifetime
Portability : All-in-one structure, Small in size , light in weight (only 158g for whole product),
inductive charging, easy usage
Efficiency : more than 15hours at full brightness, over 80hours at back up led brightness.Over 6000lux
Environmental : Li-ion battery is free for maintenance, and the material of li-ion is environmental, use
1Watt high power LED as the main light, and 6pcs backup LED’s to save power
Economy : three times longer than lead and acid cap lamp and saving in maintenance makes the product
more compatible in price
Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous discharging time: more than 15hours at full brightness, over 80hours at back up led brightness.
Type of protection : IMI EXia IICT6 (Zone 1 and 2)
Protection category : IP68
Transportation: The transport process is not allowed by the severe mechanical shock and exposure Rain, prevent throw throwing , rolling, pressure .
Storage: miner's lamp should be stored at ambient temperature 0~40℃,relative bumidity of 45%-90%. Dry, clean ,and wellventilated, non-corrosive medium warehouse, should stay away frion fire and heat, If long-term storage, please filled to 80% of capacity, and charge about 5hours after three to four months.
06.Troubles and troubleshootings
|Light is not bright||
Switch contact is bad /
Led source is broken
Inspect switch, measure the circuit, If the switch contact
is good, then check the voltage of LED and the circuit
or contact with the manufacturer.
|Not Light enough time||Undercharge||
First check the contact points, and then charge
according to the regulation .
New lamp use without cycle charge
|Precycling charge according to the regulations.|
|The Lifespan of battery is over||Replace the new lamp|
|Illumination is not enough||Low battery voltage||
Measure the battery voltage, ensure charging time up
|The glass is serious pollution||Can wash the lens suface of lamp by water .|
The lamp can't charge
or long charging time
Charger (rack) breakdown or battery
damages, charge manager fault
Check the charger 's output voltage and current ,
if all normal, check the battery ,
measure its internal resistance and capacity.
If not up to technical requirements, replace
charger or contact with the manufacturer.
|Can't rotate on fixed point||The screws of clip is started||Fasten the screw appropriately|
1. The 100,000hours and Super stable brightness.
2. Small size , light weight , and portable design.
3. Convenient charging way that Magnetic USB wire charging .
4. Adjustable lighting angle.
5. Safety, reliable and free maintenace .
7. Interlligent charging protection : anti-overcharging , current control ,
short circuit protection and anti-overheating.
8. More options of different models .
9. Explosion-proof and strong impact resistance, waterproof ,
current shock proof, moisture proof , and impact proof .
10. Safety : EXia IIC4(zone1 and zone 2) and CE certified,
Our these lamps can be used in any other hazardous locations.
11. Envronment friendly .
