|Type:||Miners Cap Lamp||Warning Lights:||Yes|
|Charging Time:||<6 H||Water Proof:||IP68|
|Life Span Of Main Light:||100000 H||Working Time:||>16h|
|LED:||Superbright LED||Charging Way:||Two Charging Way|
miners cap lamp,
led mining headlamp
28000lux Superbright LED Two Charging Way IP68 Miners Cap Lamp with Warning Lights
1.Features for Miners Cap Lamp
1). Explosion-proof, water-proof, protection in electrical short circuit,automatic power- off on the socket, 100,000 hours led lifetime.
2). Light weight, portable,high quality, strong brightness, long life time.
3). More than 16 hours working time, more than 1000 cycles lifetime of the battery.
4).Brightness is up to 28000lux ! Weight is light for portable use.
5). All our lamps has one year warranty. We will keep free maintenance for you in one year.
2.Specification of Miners Cap Lamp
|Light source||1pc 1.6W Cree led and 2pcs SMD leds|
|Main light current||450mA|
|Power of the main light||3W|
|Brightness of the main light||28000lux|
|Life span for main LED||10000hours|
|Battery cycles||1000 cycles|
|Certified||CE,ATEX,EXIB II M1|
3. Switch of Miners Cap Lamp
The electric switch is waterproof, it works as follows:
The first press makes the auxiliary lights on
The second press makes the main light on
The third press makes the light off
4. Charging of Miners Cap Lamp

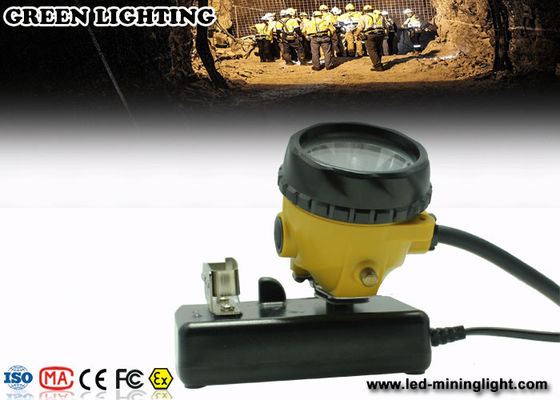

4.1.1 Traditional charging way
Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.
Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.
Rotate the head lamp 180 degree clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode).Then the indicator light turns red, which means the lamp is being charged.
When it’s charged by 2A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%. The cap lamp can work more than 13h continuously if charging is stopped at this moment. If the indicator light of the charger flashes green only, then the battery has been fully charged.
Rotate the head lamp 180 degrees anti-clockwise; take it away from the charger.
4.1.2 USB charging way
Connect the “5V,2A” power supply with magnetic USB wire to “AC,100-240V”outlet.
Note: All kinds of USB standard charging interface equipment can be used as a miners cap lamp charger.
Connect the magnetic charging terminal with the USB charging points , make them contact tightly. The cap lamp’s indicator turns red, which means it’s charging.
The cap lamp’s indicator turn green, which means it finishes charging. Take away the USB wire from the cap lamp, and then use the cap lamp.
5.Troubles and troubleshootings
|Trouble description||Trouble analysis||Troubleshooting|
Light is not on when pressing
Battery power is used up or
|Charge the lamp|
Working time is less than
|Battery is not fully charged||
Make sure the lamp well
|Longer charging time||The charging points poor contact||
Clean the charging points
|Low illuminance||Dirty lens||Clean water wash lens|
6. Safety warning
The normal battery warning:
About 1 hour before the battery power is out, the main LED light of GL12MS flashes softly(one time flashing for every five seconds) to remind the user that the power is nearly used up and needs to be recharged, If you don’t want the flashing to affect the normal lighting, you can press the switch more than 2 seconds. The main light source will flash two times, and the flash two times, and the flashing is away. Then the cap lamp restores to normal working.
The least battery warning :
When the battery is only able to keep the cap lamp on for 10 minutes, its main light source will flash with the strong and soft light quickly (one time flashing for every two seconds).This information is to remind you that the battery is nearly used up and it needs recharging or exchanging to the auxiliary light source.
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
GREEN LIGHTING ELECTRONICS CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.

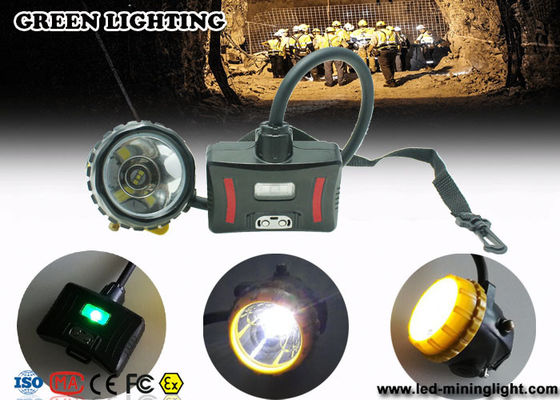

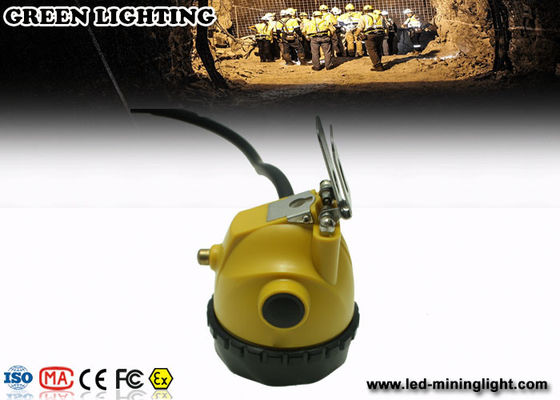

8.Product Image of Miners Cap Lamp
